To fit

WARNING: This page is about a different car, the 2001 Saab 9-3. However, it is still accessible from the selected car via links, so may be relevant.

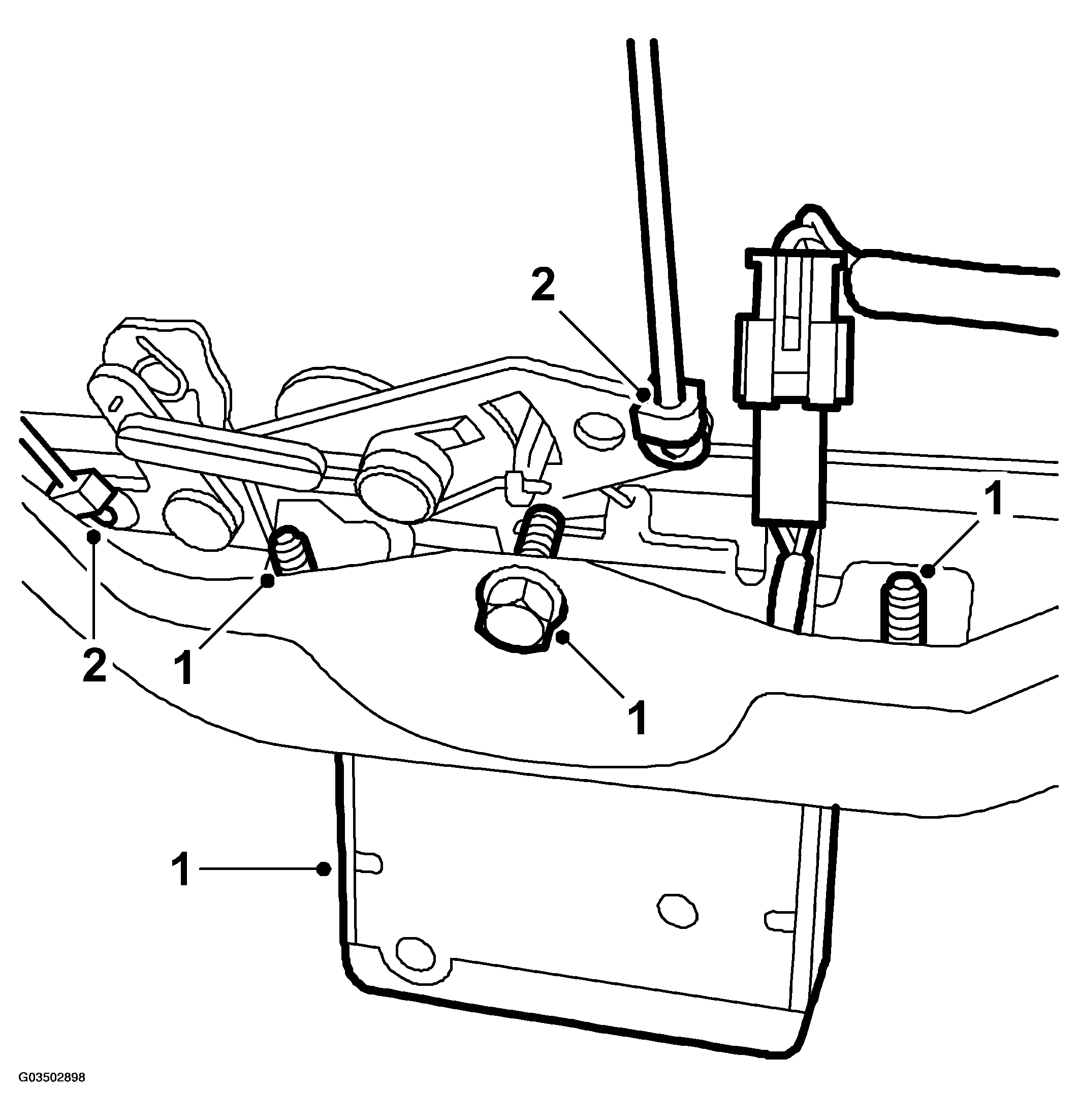

Fig 1: Illustration For Steps 1-2
G03502898Courtesy of SAAB-SCANIA OF AMERICA, INC.
  1. Put the lock back in position and tighten the 3 screws.
  2. Attach the pull rods.
  3. Fit the trim on the tailgate.

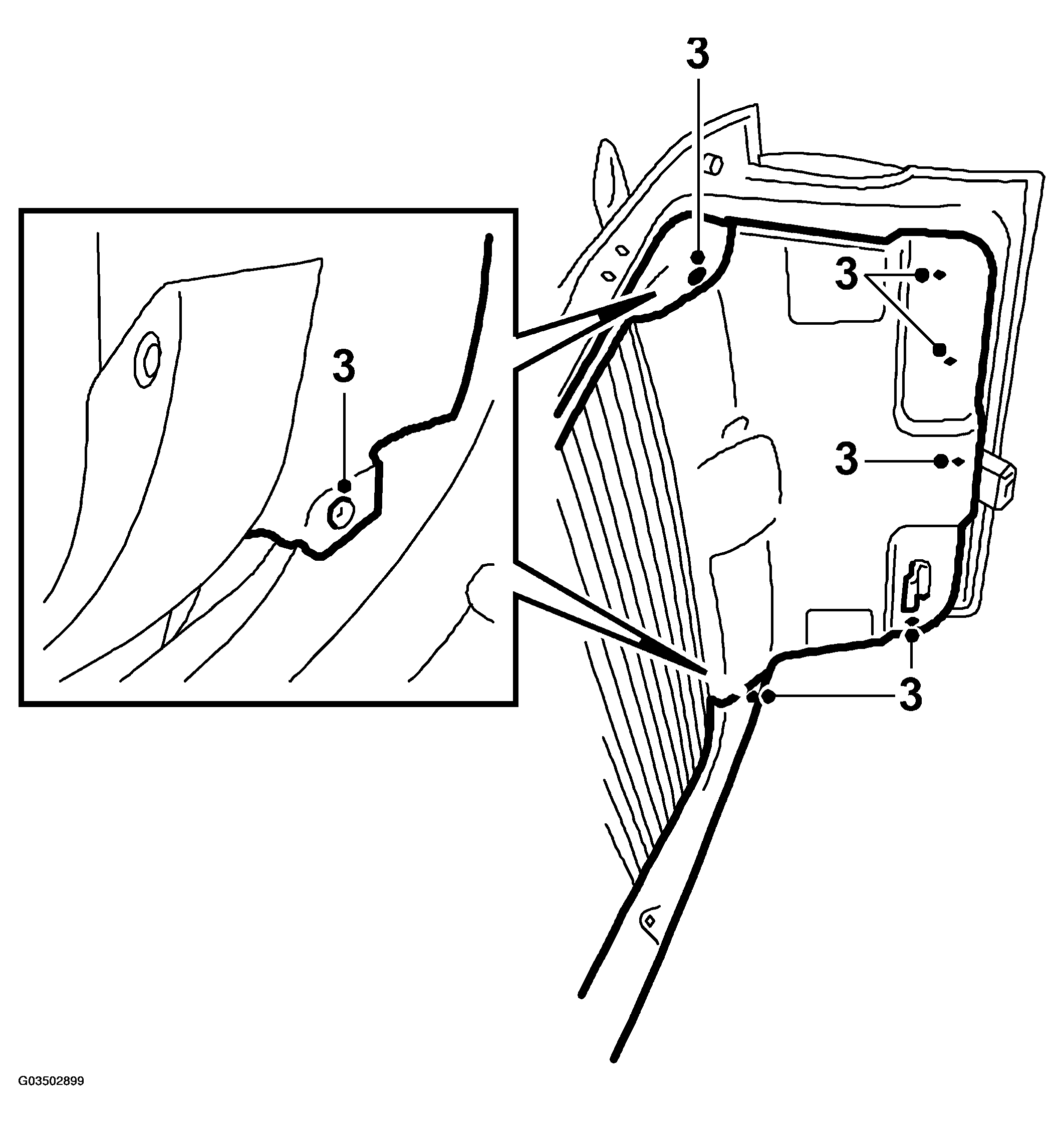

    Fig 2: Illustration For Steps 3
    G03502899Courtesy of SAAB-SCANIA OF AMERICA, INC.
