To fit

WARNING: This page is about a different car, the 2001 Saab 9-3. However, it is still accessible from the selected car via links, so may be relevant.

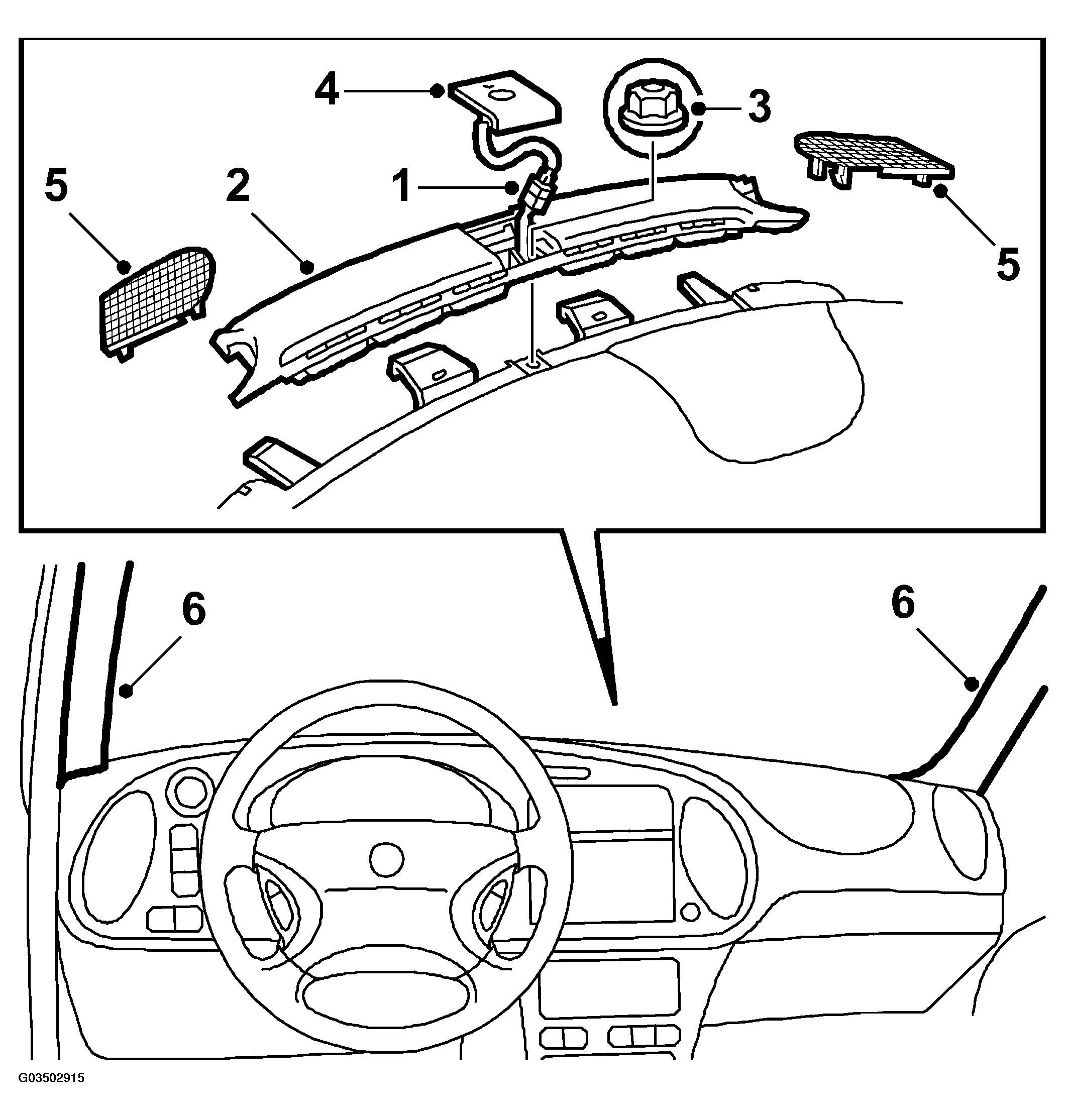

Fig 1: Illustration For Steps 1-6
G03502915Courtesy of SAAB-SCANIA OF AMERICA, INC.
  1. Fit the LED on the plate and attach the connector to the LED. Ensure that the connector is correctly positioned underneath the defroster cover.
  2. Fit the defroster cover at the front edge first and then with the clips at the rear edge.
  3. Fit the nut.
  4. Push the plate with the LED into position.
  5. Fit the loudspeaker grille.
  6. Fit the trim on the A-pillar.
