To remove

WARNING: This page is about a different car, the 2001 Saab 9-3. However, it is still accessible from the selected car via links, so may be relevant.

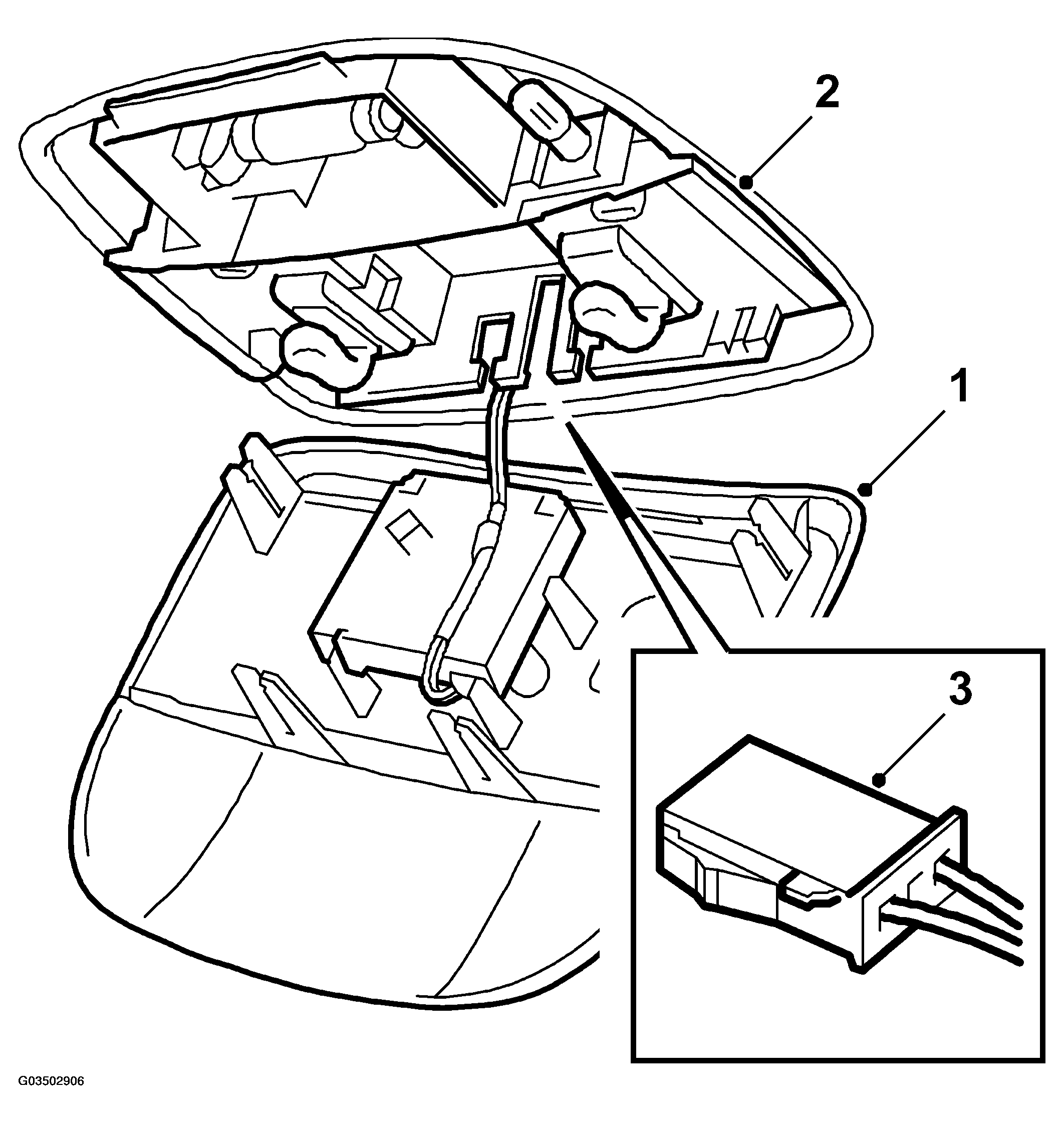

Fig 1: Illustration For Steps 1-3
G03502906Courtesy of SAAB-SCANIA OF AMERICA, INC.
NOTE: The glass breakage sensor is not stocked separately as a spare part. The complete lens cover must be replaced.
  1. Release the lens cover on the centre roof light.
  2. Loosen the switch panel on the roof lamp by pressing it forwards and at the same time pulling the rear edge downwards.
  3. Release the electrical connector from the sensor and lift off the lens cover.
