To fit

WARNING: This page is about a different car, the 2001 Saab 9-3. However, it is still accessible from the selected car via links, so may be relevant.

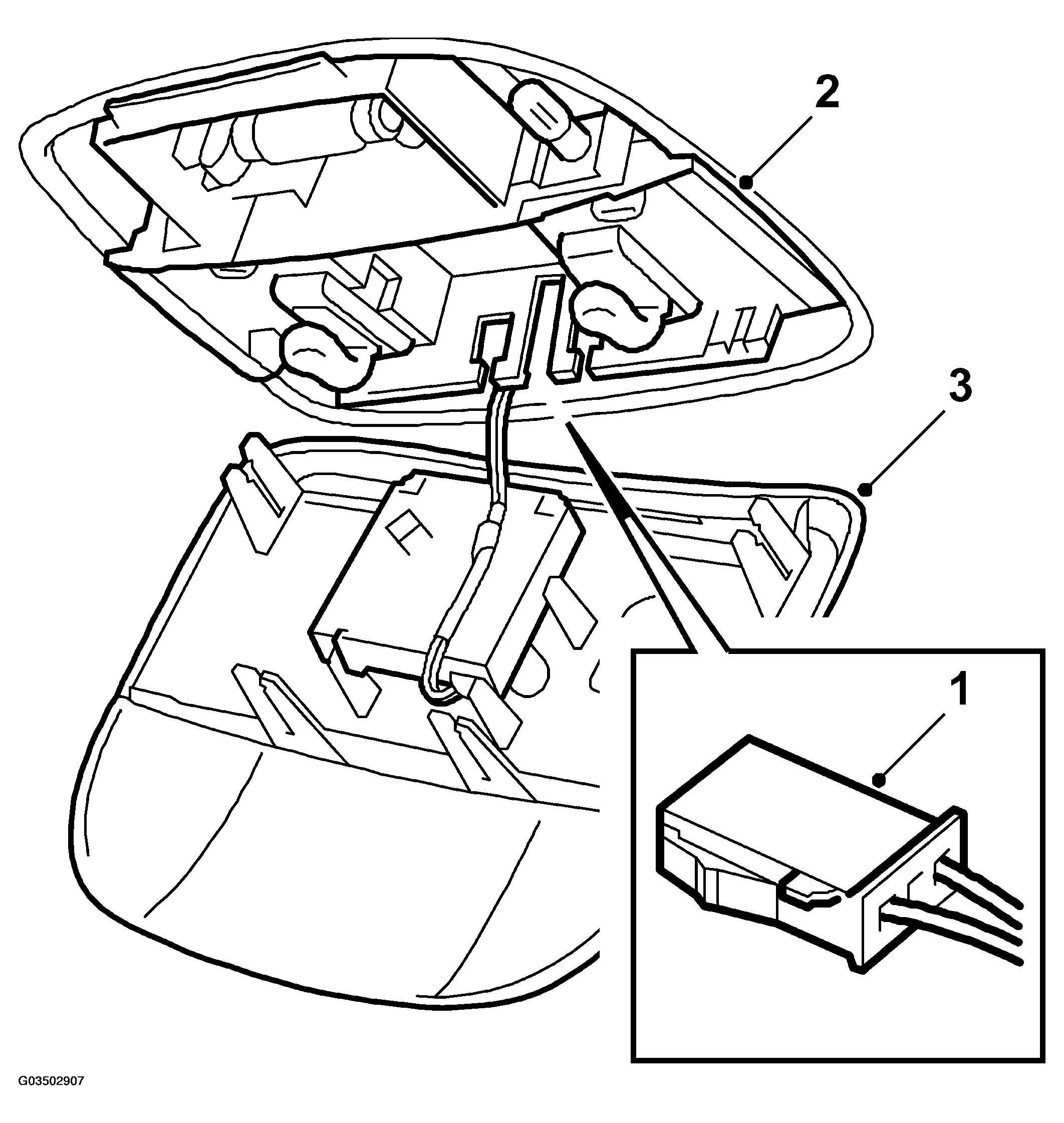

Fig 1: Illustration For Steps 1-3
G03502907Courtesy of SAAB-SCANIA OF AMERICA, INC.
  1. Replace the connector. Ensure that the connector is properly seated and attached to avoid vibrations.
  2. Fir the switch panel. Start with the front edge and push it forwards. Then press the rear edge upwards.
  3. Fit the lens cover.
