Anti-theft alarm fitting kit components: Siren: Notes

WARNING: This page is about a different car, the 2001 Saab 9-3. However, it is still accessible from the selected car via links, so may be relevant.

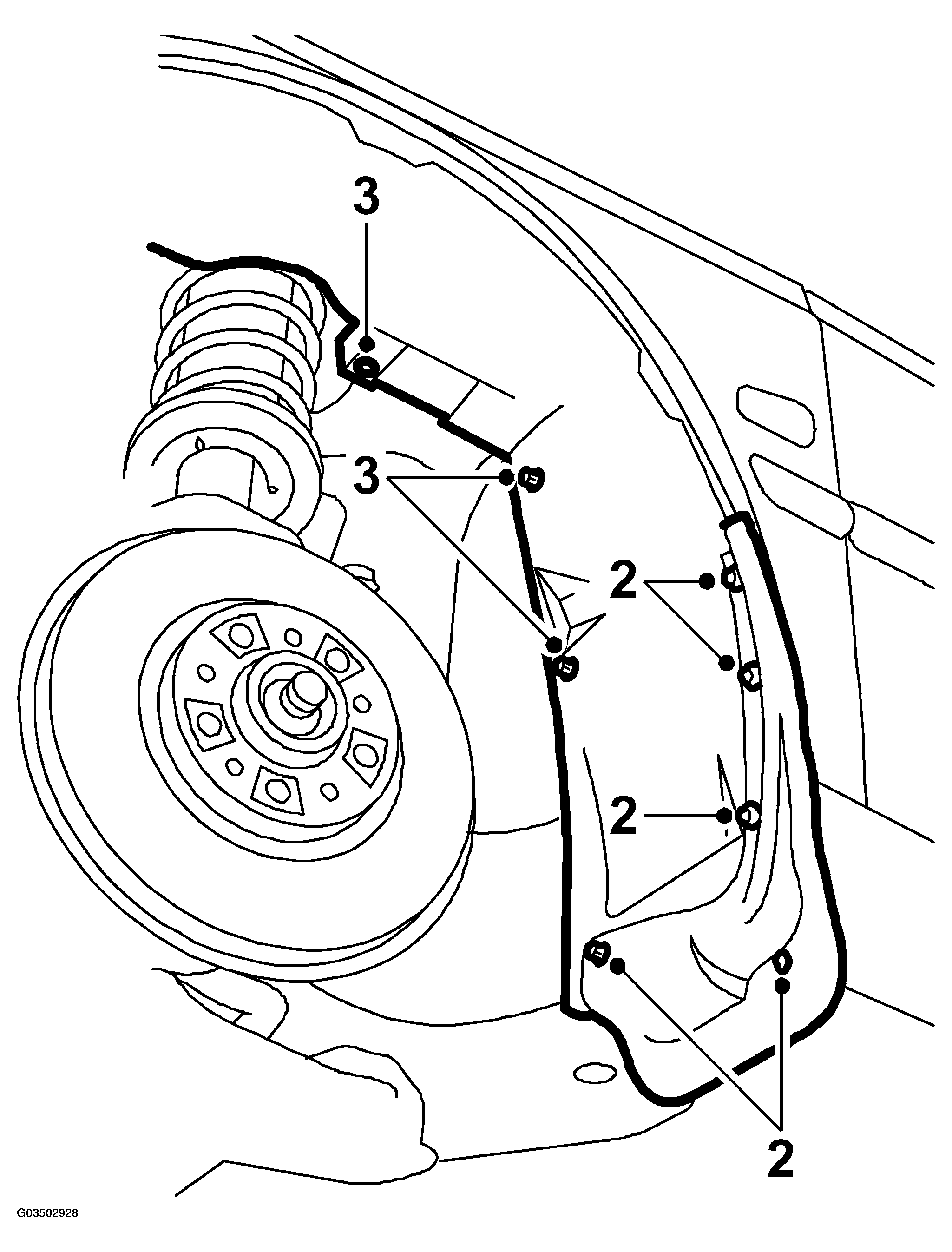

Fig 1: Illustration For Steps 2-3
G03502928Courtesy of SAAB-SCANIA OF AMERICA, INC.
  1. Raise the car and remove the front left wheel.
  2. Remove the front left mudflap (4 screws).
  3. Remove the rear section of the wing liner from the left-hand front wheel housing (2 nuts and 1 rivet).
  4. Localize the wiring harness with a 4 -pin electrical connector.

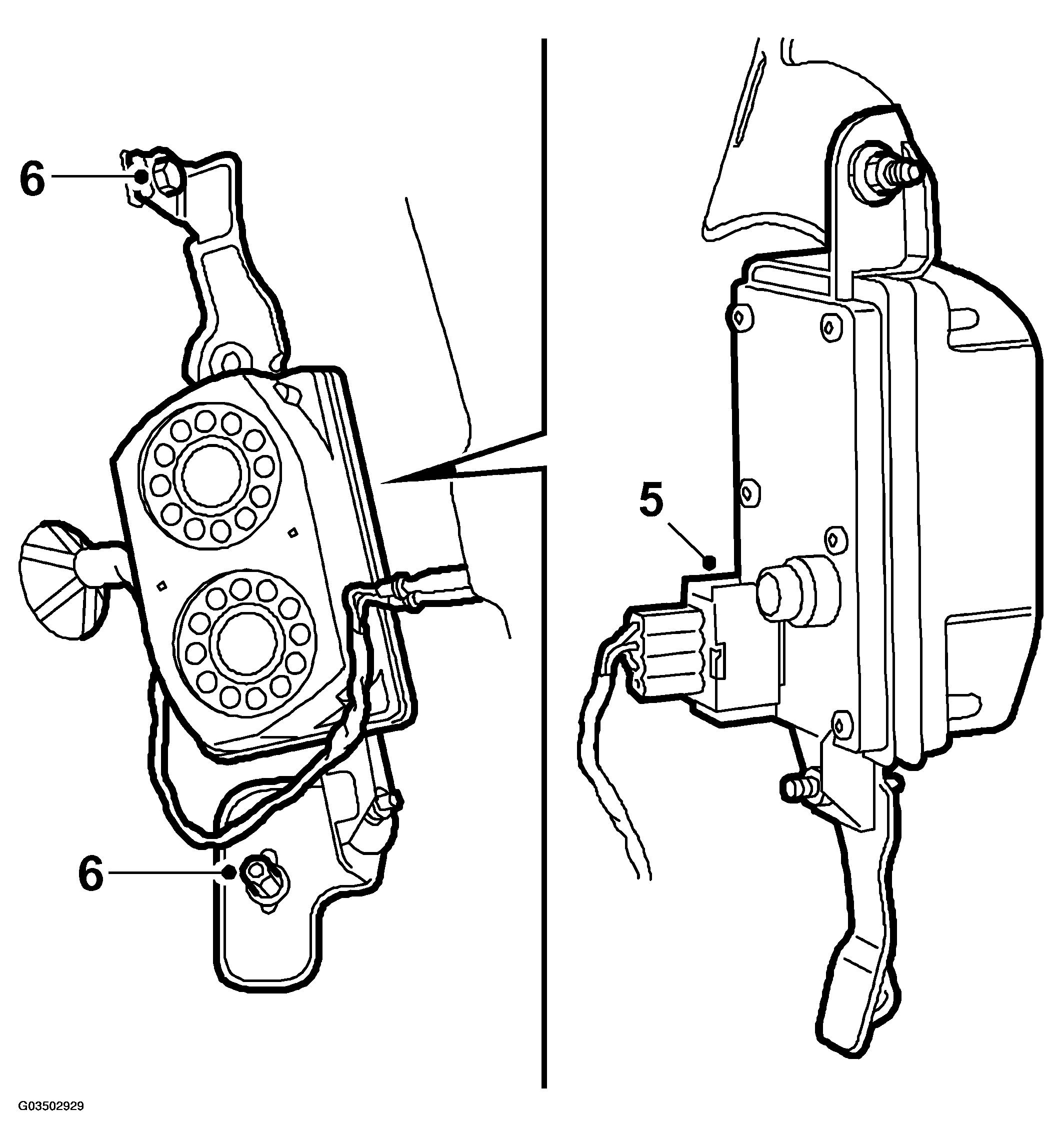

    Fig 2: Illustration For Steps 5-6
    G03502929Courtesy of SAAB-SCANIA OF AMERICA, INC.
  5. Plug the 4 -pin connector into the siren.
  6. Fit the siren on the two welded studs and secure it with 2 nuts.
  7. Fit the wing liner, mudflap, and front left wheel, and lower the car to the ground.
