LED (Light Emitting Diode)

WARNING: This page is about a different car, the 2001 Saab 9-3. However, it is still accessible from the selected car via links, so may be relevant.

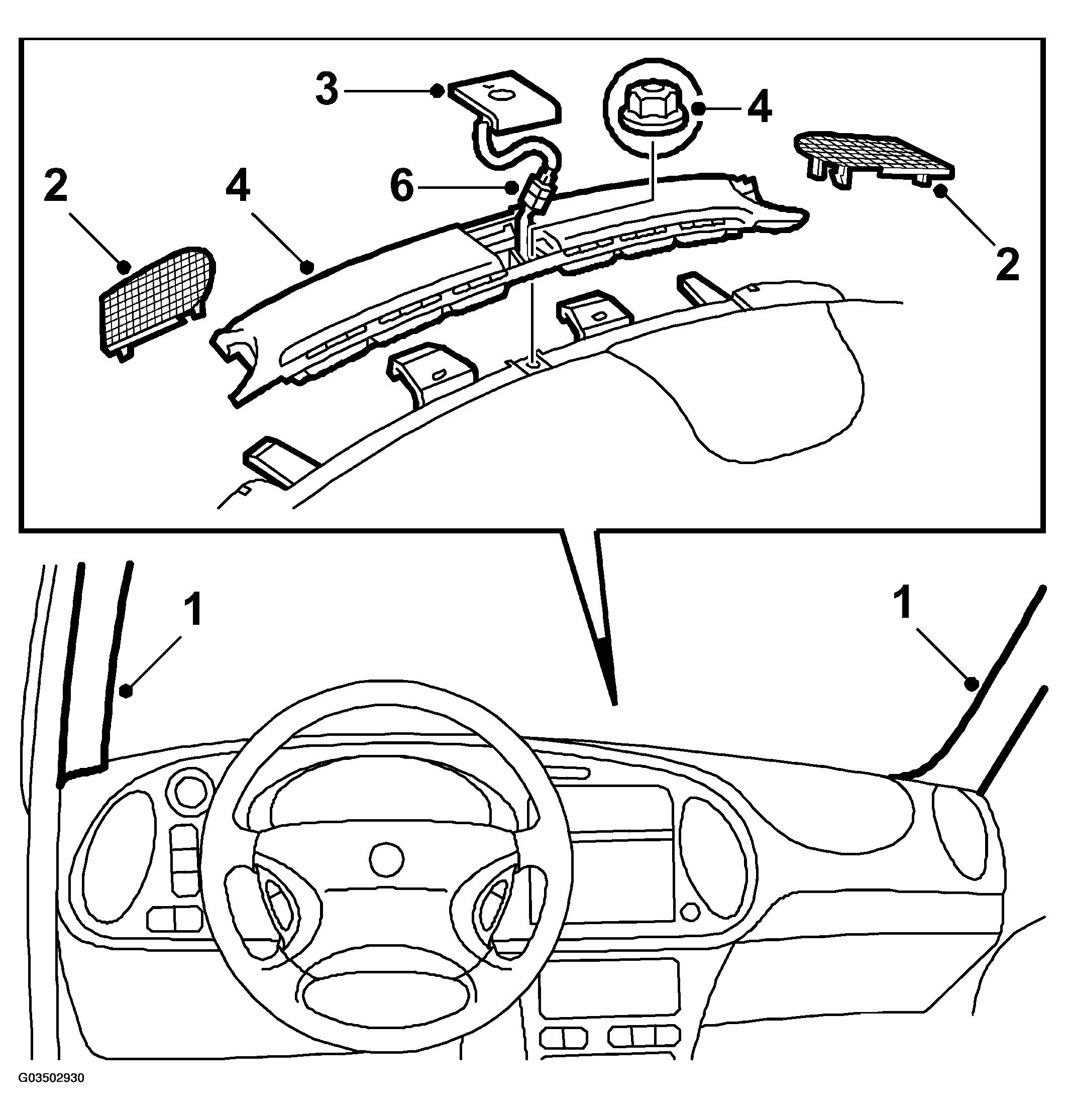

Fig 1: Illustration For Steps 1-4, 6
G03502930Courtesy of SAAB-SCANIA OF AMERICA, INC.
  1. Remove the trim from the A pillar by loosening the rubber strip and pulling off the trim (attached with clips).
  2. Remove the right-hand loudspeaker grille.
  3. In the middle of the defroster cover there is a cover plate. Remove this plate by pressing backwards and lifting slightly.
  4. Remove the defroster cover by loosening the nut and lifting the cover straight upwards at the rear edge (attached with clips).
  5. Localize the electrical connector for the LED.
  6. Fit the LED into the plate included in the kit and attach the connector to the LED. Ensure that the connector is positioned correctly in the appropriate space underneath the defroster cover.
  7. Fit the parts that were removed.
