Glass breakage sensor

WARNING: This page is about a different car, the 2001 Saab 9-3. However, it is still accessible from the selected car via links, so may be relevant.

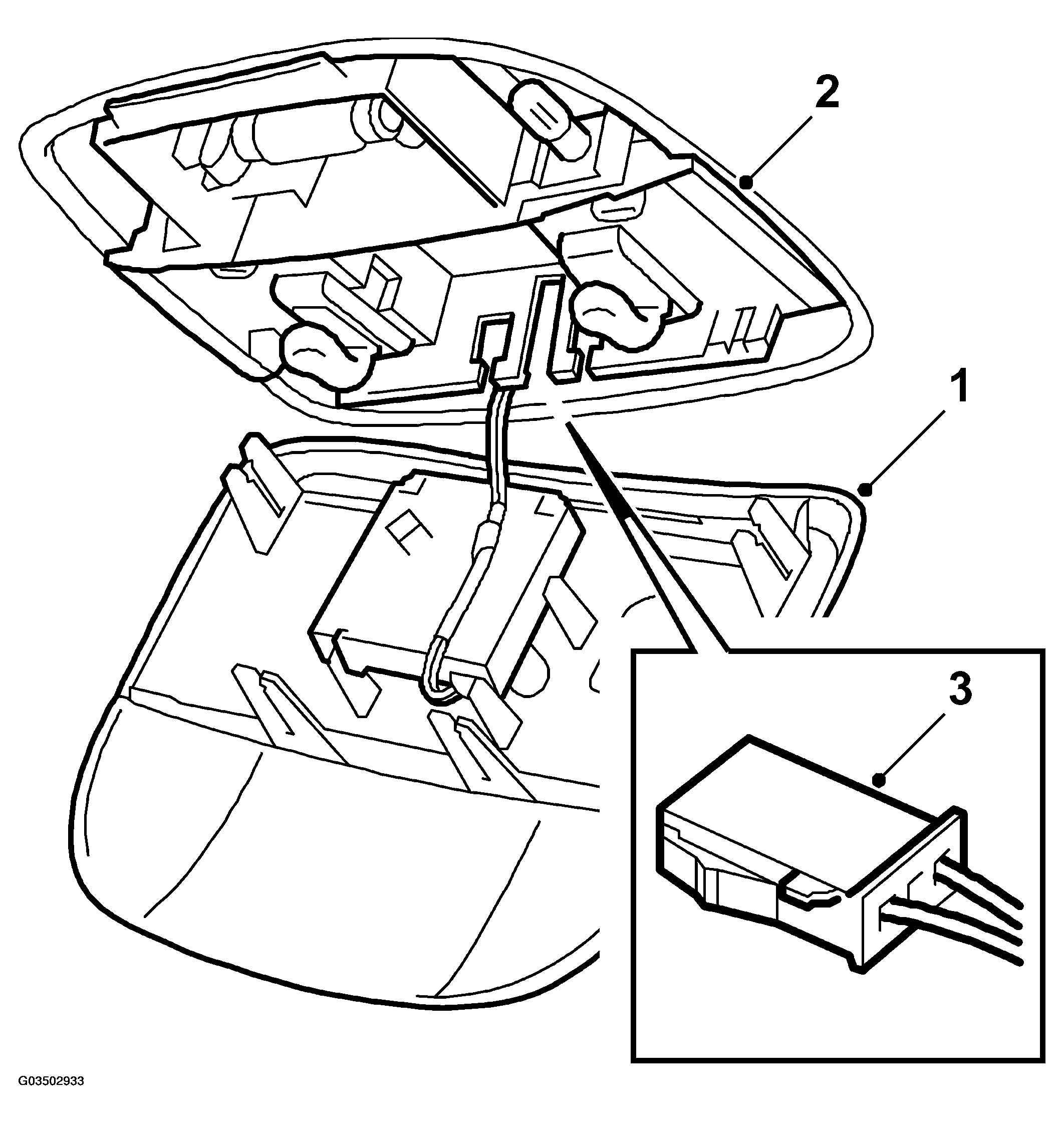

Fig 1: Illustration For Steps 1-3
G03502933Courtesy of SAAB-SCANIA OF AMERICA, INC.
  1. Remove the existing lens cover from the centre roof lamp.
  2. Loosen the switch panel in the lamp to obtain access to the electrical connector for the glass breakage sensor. Pull out the connector and fit the switch panel back in the lamp.
  3. Attach the electrical connector to the glass breakage sensor on the new lens cover.
  4. Press the lens cover into position.
  5. Finally, the glass breakage sensor must be programmed into the theft protection system with the diagnostic tool. If the tilt sensor is also to be fitted, it should be programmed after fitting.
