Bonnet switch

WARNING: This page is about a different car, the 2001 Saab 9-3. However, it is still accessible from the selected car via links, so may be relevant.

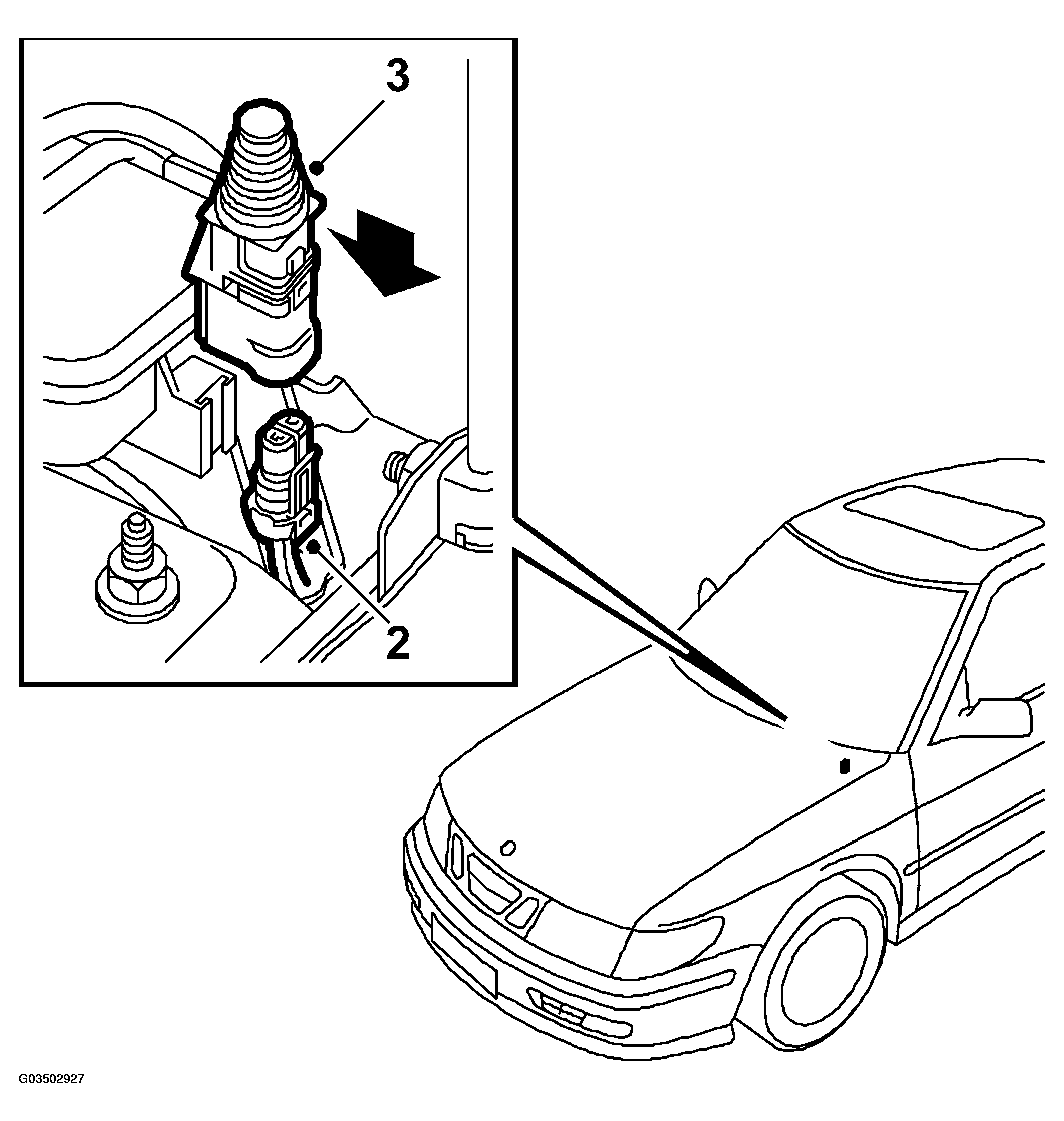

Fig 1: Illustration For Steps 2-3
G03502927Courtesy of SAAB-SCANIA OF AMERICA, INC.
  1. Open the bonnet and lift up the main fuse box to access the wiring harness with the bonnet switch connector located underneath.
  2. Plug in the wiring harness connector to the bonnet switch.
  3. Fit the bonnet switch into its holder.
