Section 25 (Bus And Diagnostics Communication): Wiring diagram: P-bus: Notes

WARNING: This page is about a different car, the 2001 Saab 9-3. However, it is still accessible from the selected car via links, so may be relevant.

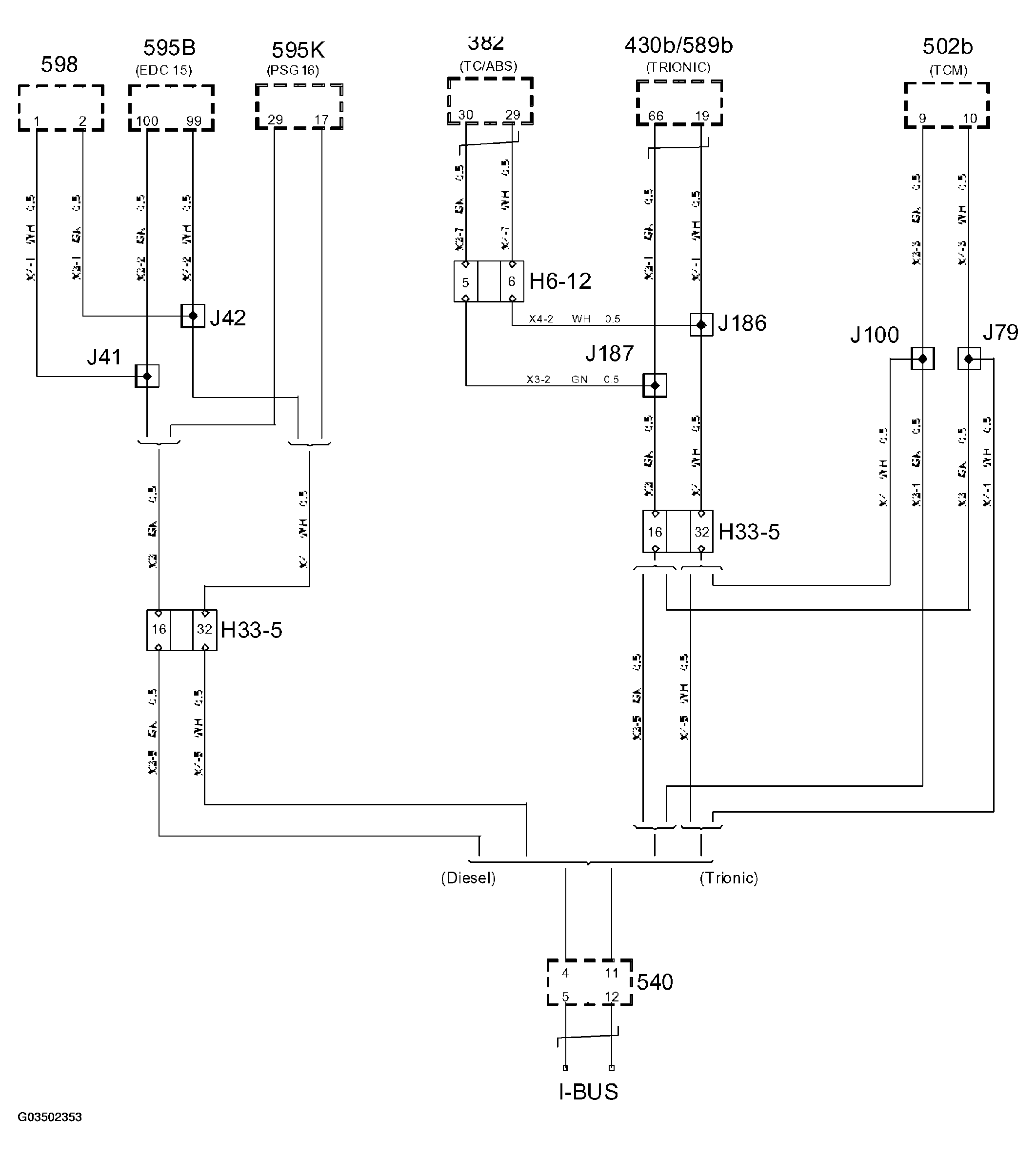

Fig 1: Component Identification Diagram - P-Bus Circuit
G03502353Courtesy of SAAB-SCANIA OF AMERICA, INC.
