I-bus 3D/5D LHD: Notes

WARNING: This page is about a different car, the 2001 Saab 9-3. However, it is still accessible from the selected car via links, so may be relevant.

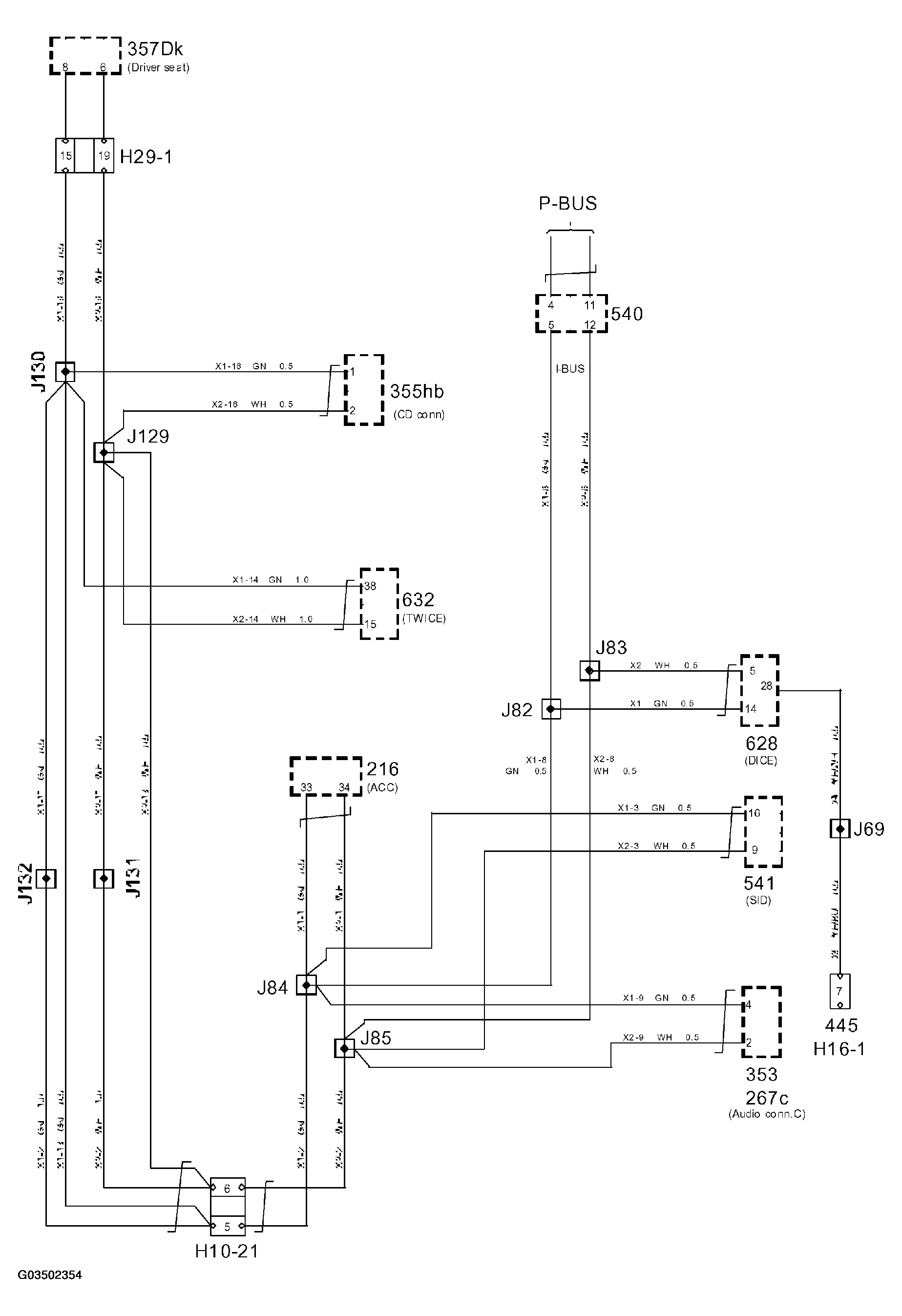

Fig 1: Component Identification Diagram - I-Bus 3D/5D Circuit (LHD)
G03502354Courtesy of SAAB-SCANIA OF AMERICA, INC.
