System overview, functions, cars with Trionic T7 engine management system

WARNING: This page is about a different car, the 2001 Saab 9-3. However, it is still accessible from the selected car via links, so may be relevant.

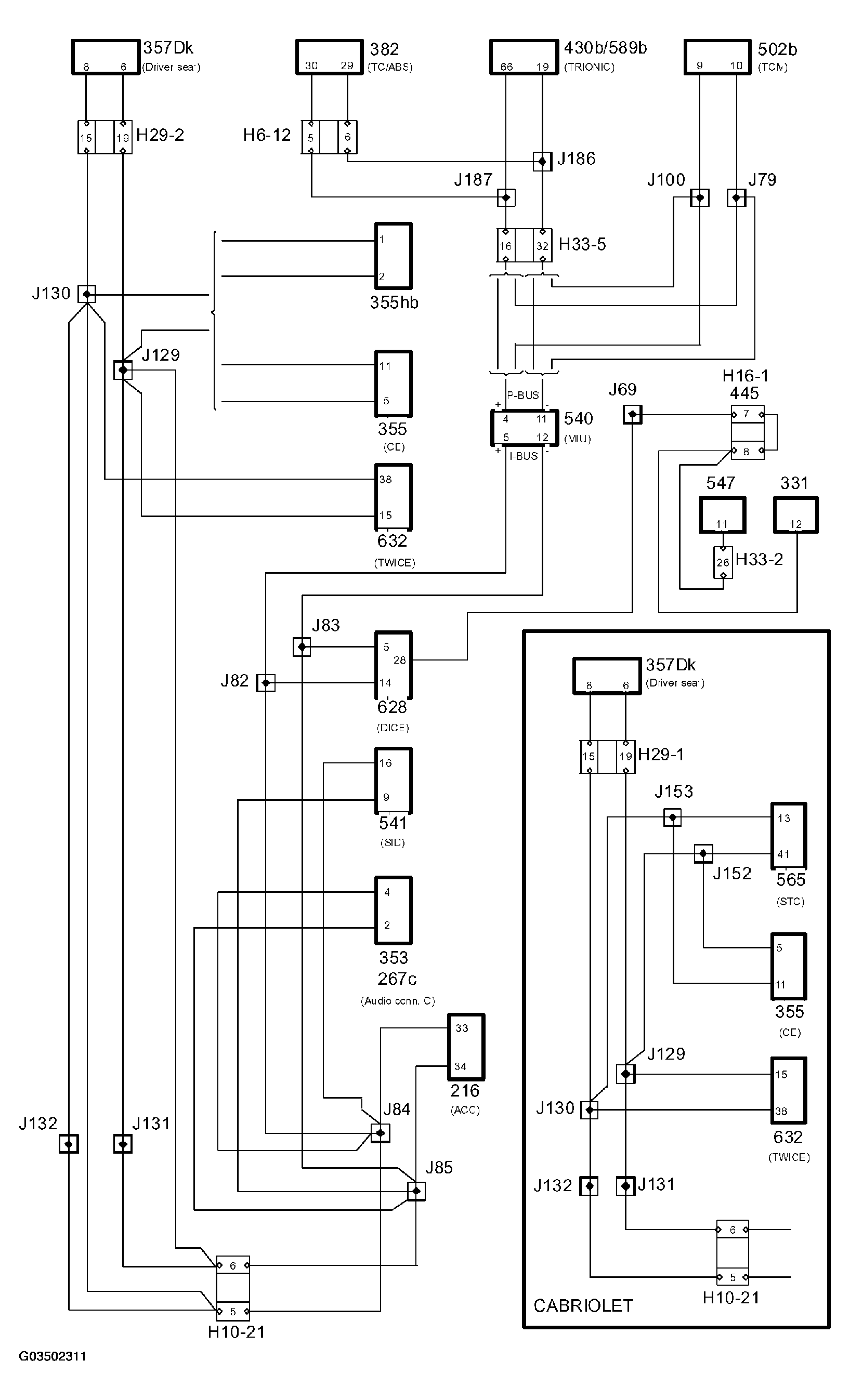

Fig 1: Bus And Diagnostics Circuit Diagram - Cars With Trionic T7 Engine Management System
G03502311Courtesy of SAAB-SCANIA OF AMERICA, INC.
