System overview, components connected to a bus, cars with Trionic T7 engine management system

WARNING: This page is about a different car, the 2001 Saab 9-3. However, it is still accessible from the selected car via links, so may be relevant.
  1. Trionic, engine management system (430b, 589b)

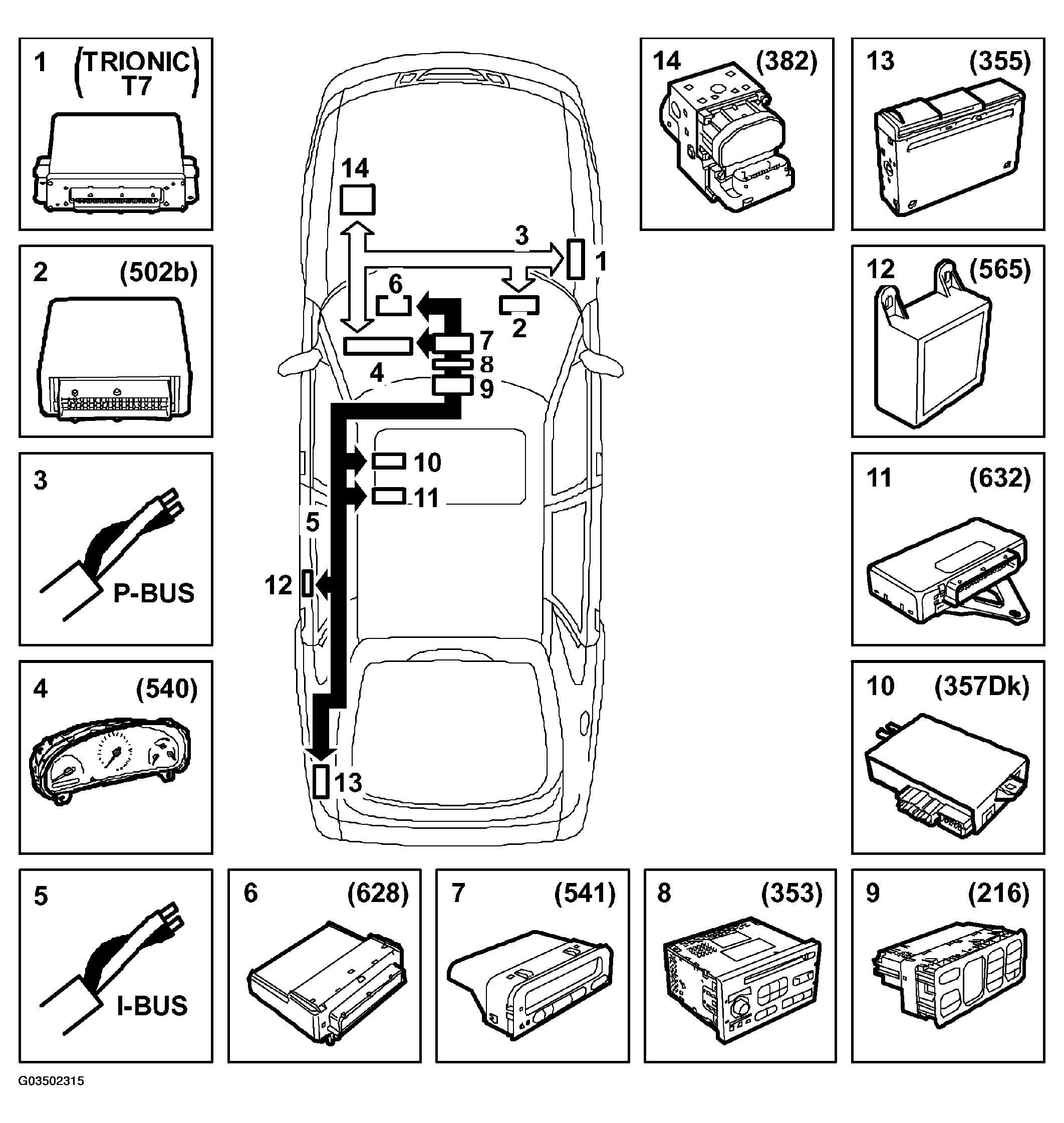

    Fig 1: Illustration For Steps 1-14
    G03502315Courtesy of SAAB-SCANIA OF AMERICA, INC.
  2. Transmission Control Module (TCM) (502b)
  3. P-bus (Powertrain bus)
  4. Main Instrument Unit (MIU) (540)
  5. I-bus (Instrument bus)
  6. Dashboard Integrated Central Electronics (DICE) (628)
  7. Saab Information Display (SID) (541)
  8. Audio system, main unit (353)
  9. Automatic Climate Control (ACC) (216)
  10. Power Seat Memory (PSM) (357Dk)
  11. Theft Warning Integrated Central Electronics (TWICE) (632)
  12. Soft Top Control (STC) (565)
  13. CD changer (CDC) (355)
  14. Traction Control (TC/ABS) (382)
