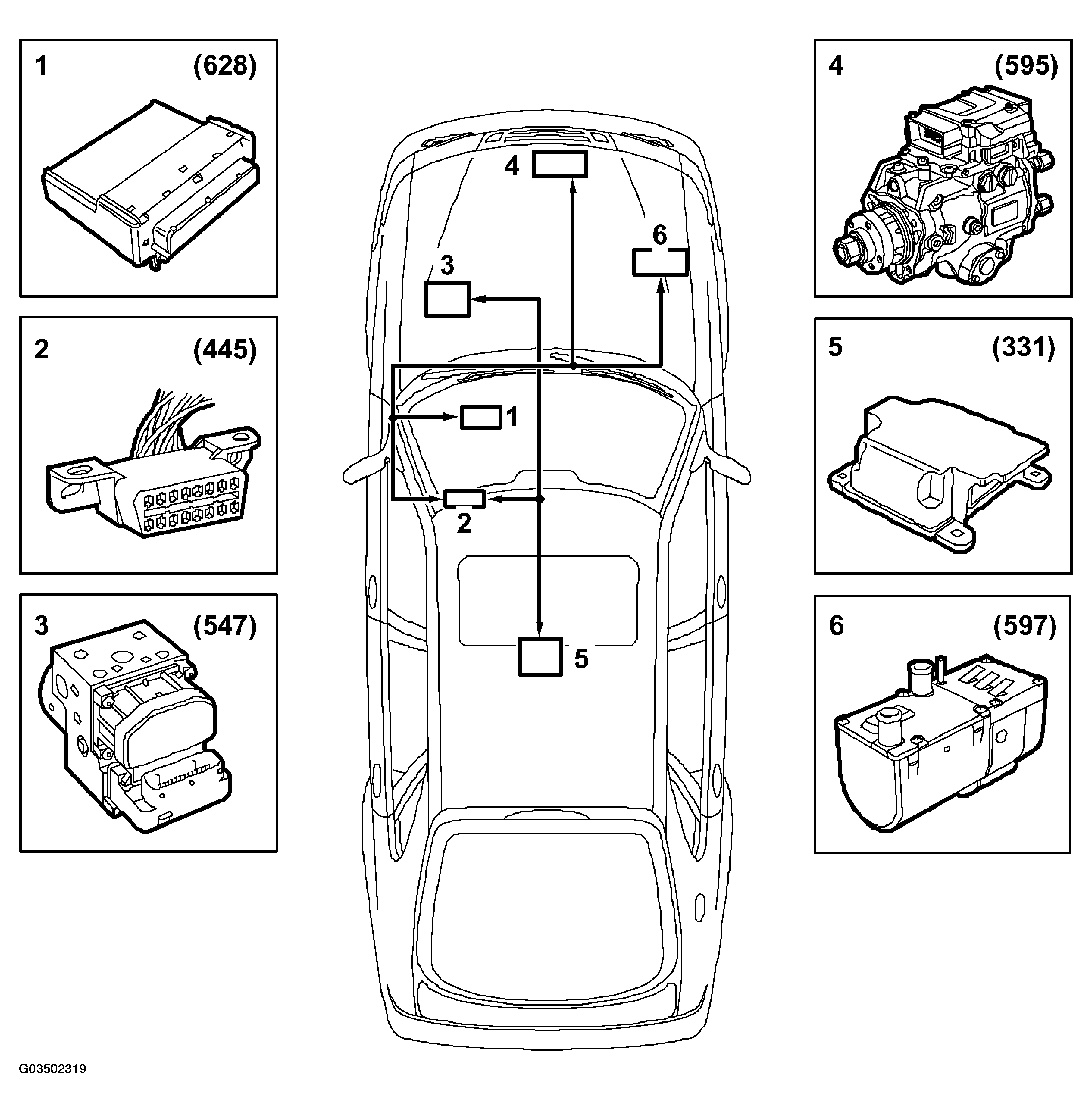

System overview, components connected to K lead, PSG 16
WARNING: This page is about a different car, the 2001 Saab 9-3. However, it is still accessible from the selected car via links, so may be relevant.
- Dashboard Integrated Central Electronics (DICE) (628)
Courtesy of SAAB-SCANIA OF AMERICA, INC.
- Data link connector (H16-5/445)
- Anti-lock Brake System (ABS) (547)
- PSG 16, diesel engine management system (595)
- Airbag (SRS) (331)
- Diesel Additional Heater (DAH) (597)
