Trionic T7 control module, 4-cyl (430b)

WARNING: This page is about a different car, the 2001 Saab 9-3. However, it is still accessible from the selected car via links, so may be relevant.

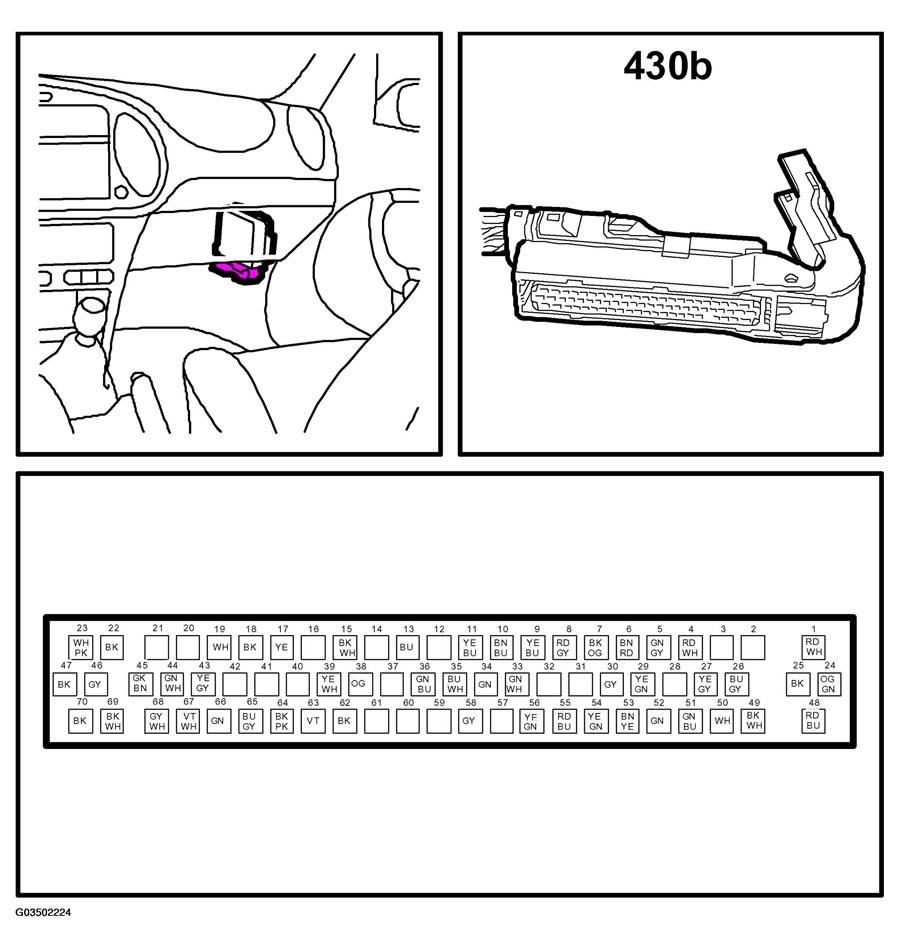

Fig 1: Locating Trionic T7 Control Module
G03502224Courtesy of SAAB-SCANIA OF AMERICA, INC.
