Crimp J42, engine harness EDC15

WARNING: This page is about a different car, the 2001 Saab 9-3. However, it is still accessible from the selected car via links, so may be relevant.

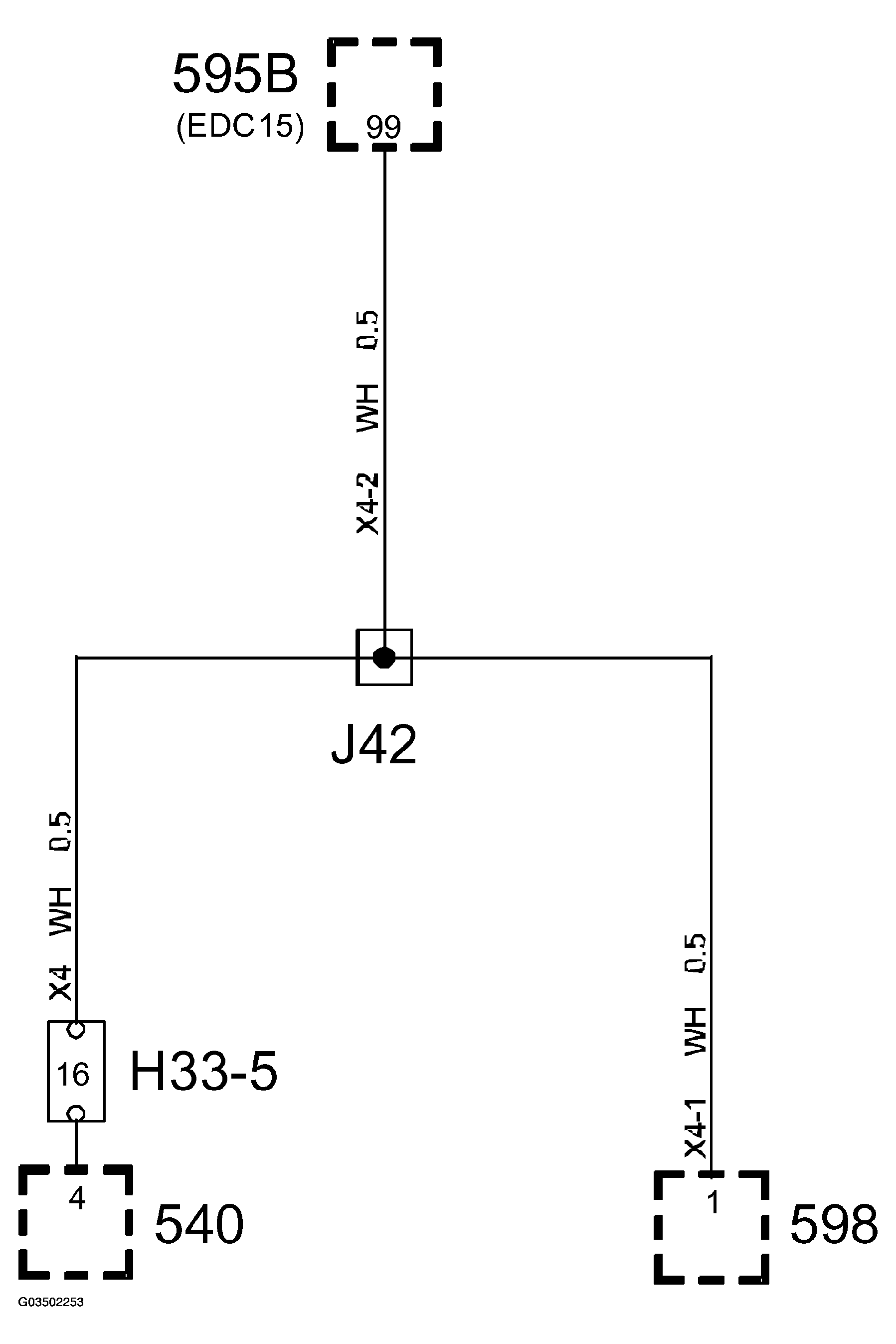

Fig 1: Crimp J42 Engine Harness EDC15 Diagram
G03502253Courtesy of SAAB-SCANIA OF AMERICA, INC.
