Home >> Saab >> 2003 >> 9-3 SE, Standard >> Repair and Diagnosis >> External Pages >> Different car >> Section 25 (Bus And Diagnostics Communication) >> Component location >> Control module, electrically adjustable driver's seat with memory (357Dk) >> K3

Control module, electrically adjustable driver's seat with memory (357Dk): K3

WARNING: This page is about a different car, the 2001 Saab 9-3. However, it is still accessible from the selected car via links, so may be relevant.

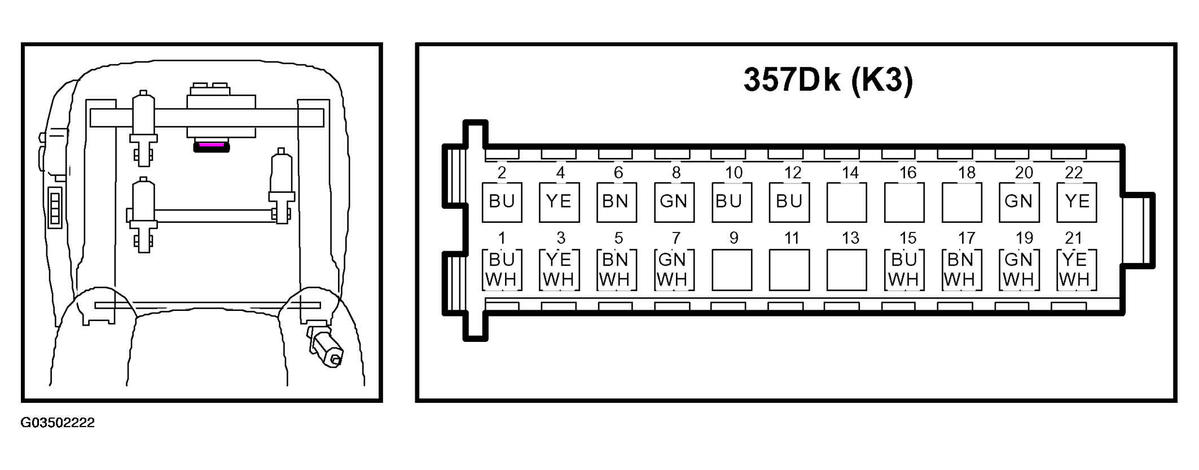

Fig 1: Locating Control Module Connector (K3)
G03502222Courtesy of SAAB-SCANIA OF AMERICA, INC.
