Control module, electrically adjustable driver's seat with memory (357Dk): K1

WARNING: This page is about a different car, the 2001 Saab 9-3. However, it is still accessible from the selected car via links, so may be relevant.

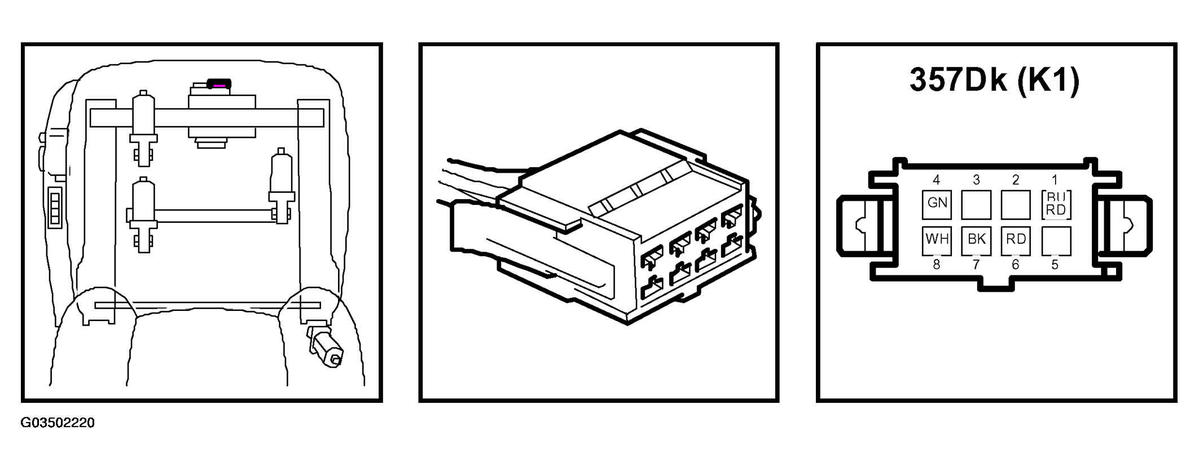

Fig 1: Locating Control Module Connector (K1)
G03502220Courtesy of SAAB-SCANIA OF AMERICA, INC.
