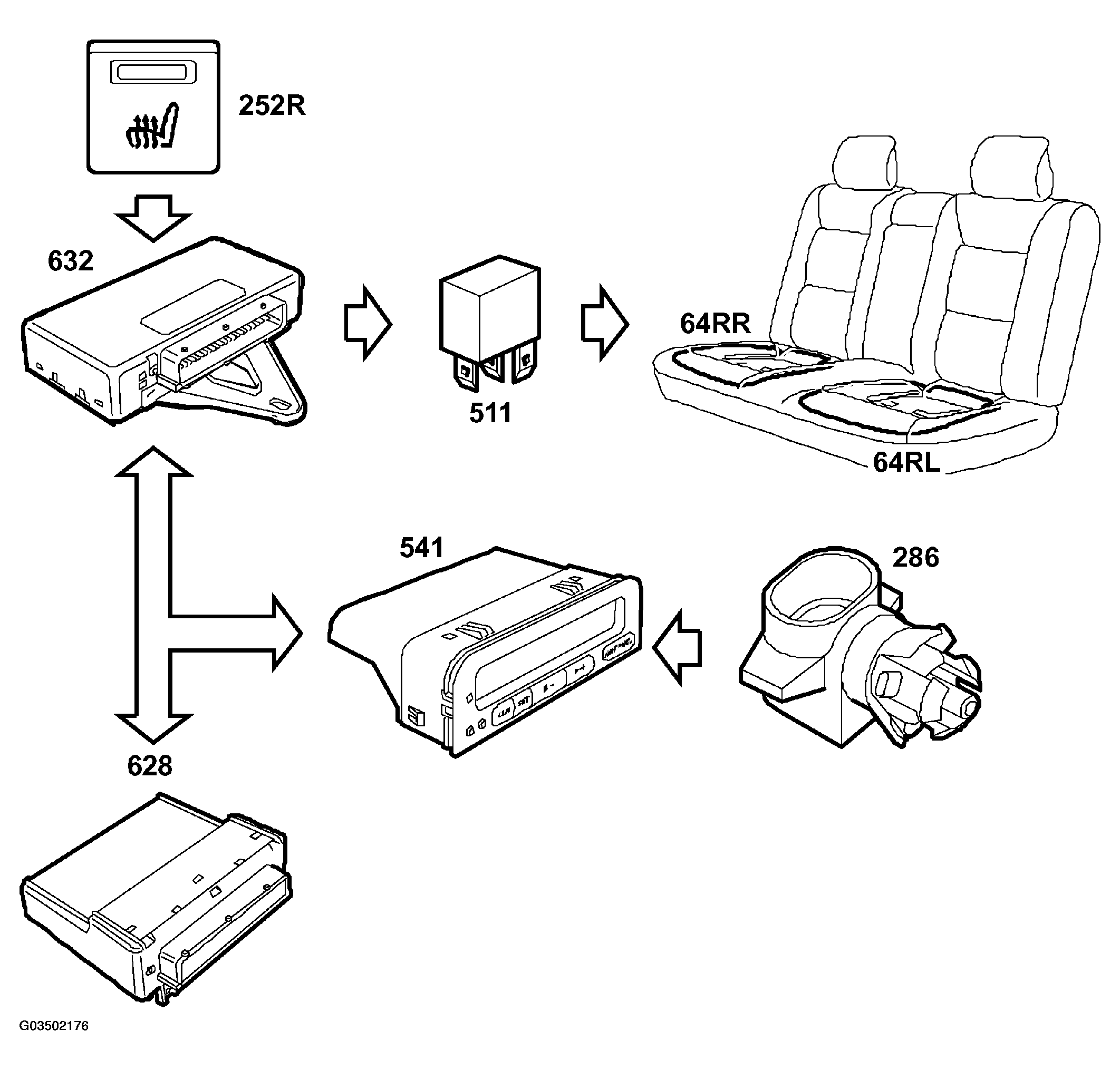

System overview, heated rear seat
WARNING: This page is about a different car, the 2001 Saab 9-3. However, it is still accessible from the selected car via links, so may be relevant.
Courtesy of SAAB-SCANIA OF AMERICA, INC.
- Control module, TWICE (632)
- Switch, heated rear seat (252R)
- Relay, heated rear seat (511)
- Heating pads, rear seat (64RL, 64RR)
- Control module, DICE (628)
- SID (541)
- Temperature sensor, outside air (286)
