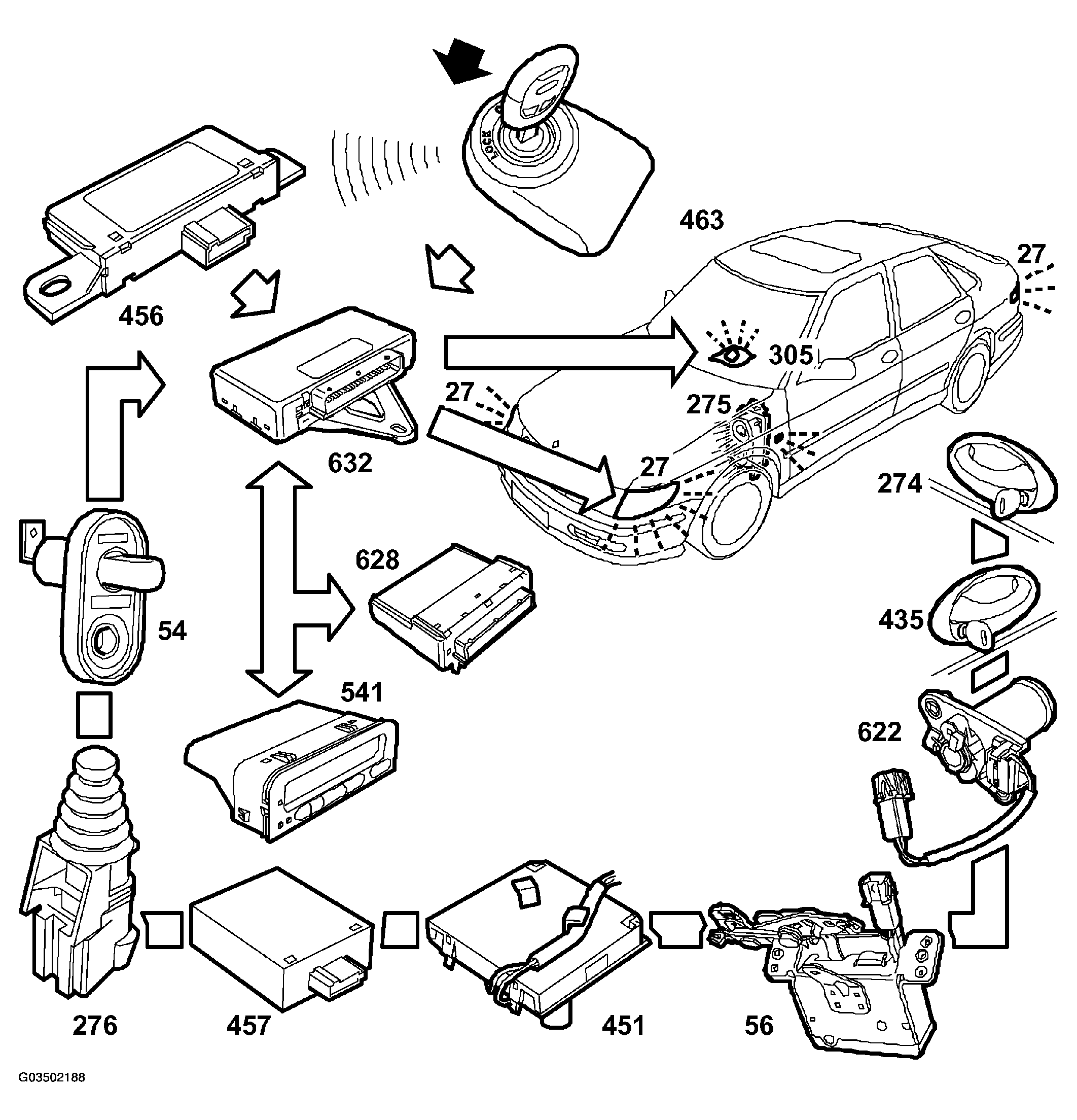

System Overview, anti-theft alarm
WARNING: This page is about a different car, the 2001 Saab 9-3. However, it is still accessible from the selected car via links, so may be relevant.
- Control module, TWICE (632)
- Car key
- Antenna, remote control, central locking system (456)
- Door switches (54D, P, RL, RR)
- Switch, luggage compartment illumination (56)
- Bonnet switch, anti-theft alarm (276)
- Glass breakage sensor (451)
- Tilt sensor (457)
- Microswitch, driver's door (274)
- Microswitch, passenger door (435)
- Microswitch, luggage compartment lock (622)
- Antenna unit, immobilizer (463)
- LED, anti-theft alarm (305)
- Siren, anti-theft alarm (275)
- Lamps, direction indicators (27)
- Control module, DICE (628)
- SID (541)
