Main components, seat belt warning

WARNING: This page is about a different car, the 2001 Saab 9-3. However, it is still accessible from the selected car via links, so may be relevant.

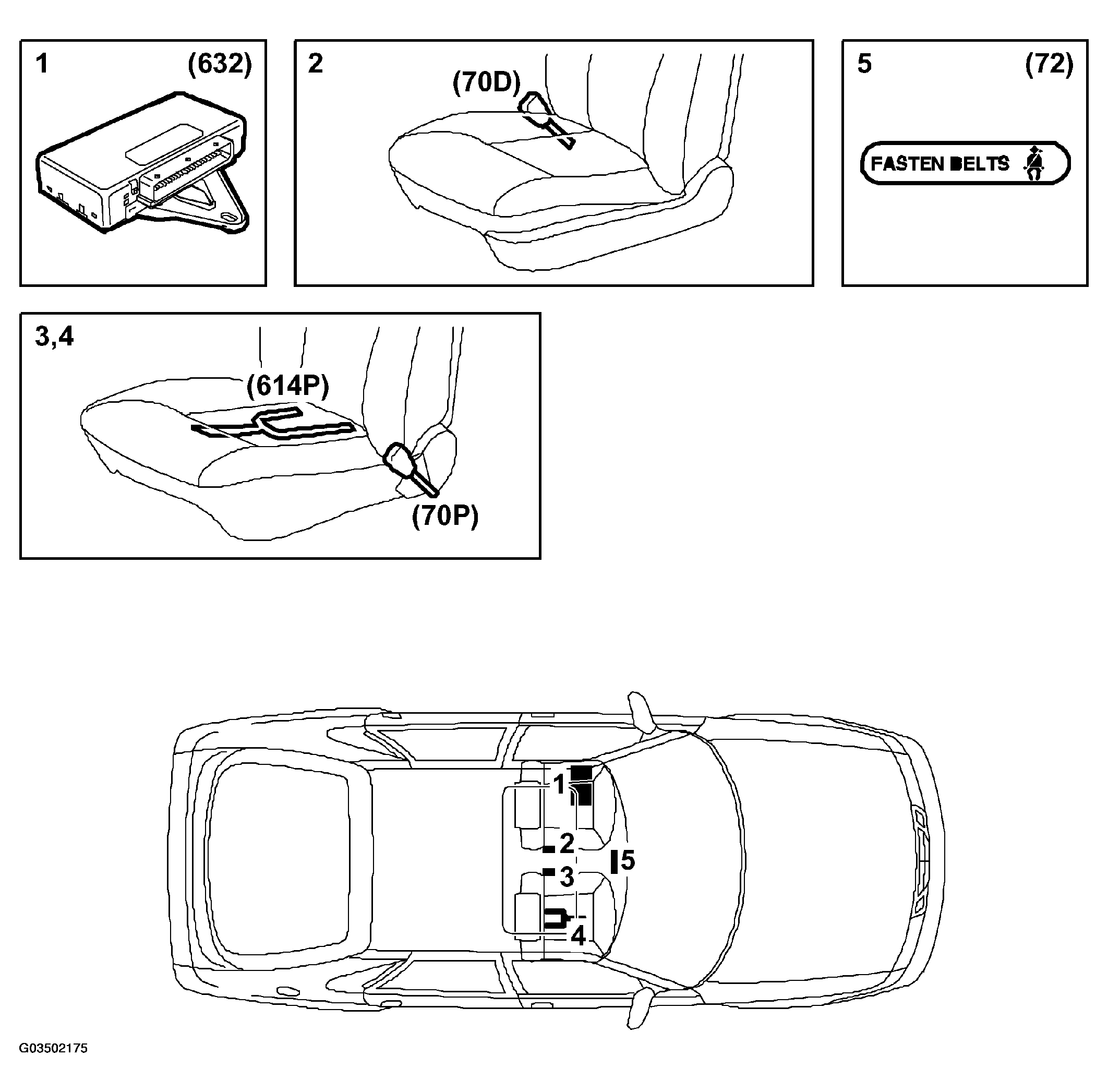

Fig 1: Identifying Main Components (Seat Belt Warning)
G03502175Courtesy of SAAB-SCANIA OF AMERICA, INC.
  1. Control module, TWICE (632)
  2. Seat belt switch, driver (70D)
  3. Seat belt switch, front-seat passenger (70P)
  4. Sensor for occupied seat cushion, front passenger (614P)
  5. Warning lamp, seat belt (72)
