Main components, heated rear seat

WARNING: This page is about a different car, the 2001 Saab 9-3. However, it is still accessible from the selected car via links, so may be relevant.

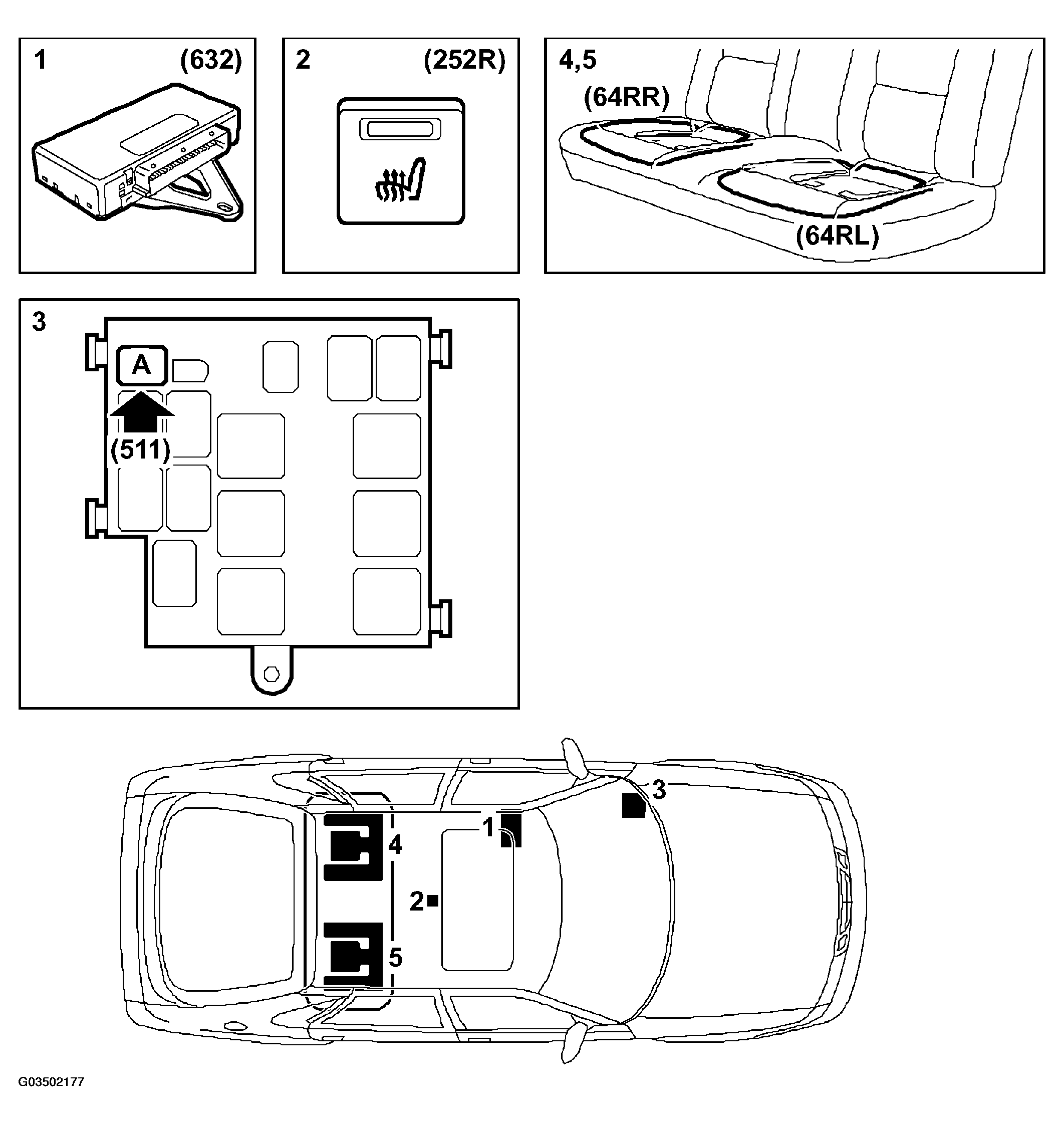

Fig 1: Identifying Main Components (Heated Rear Seat)
G03502177Courtesy of SAAB-SCANIA OF AMERICA, INC.
  1. Control module, TWICE (632)
  2. Switch, heated rear seat (252R)
  3. Relay, heated rear seat (511)
  4. Heating pad, rear seat left (64RL)
  5. Heating pad, rear seat right (64RR)
