Main components, electric luggage compartment opening

WARNING: This page is about a different car, the 2001 Saab 9-3. However, it is still accessible from the selected car via links, so may be relevant.

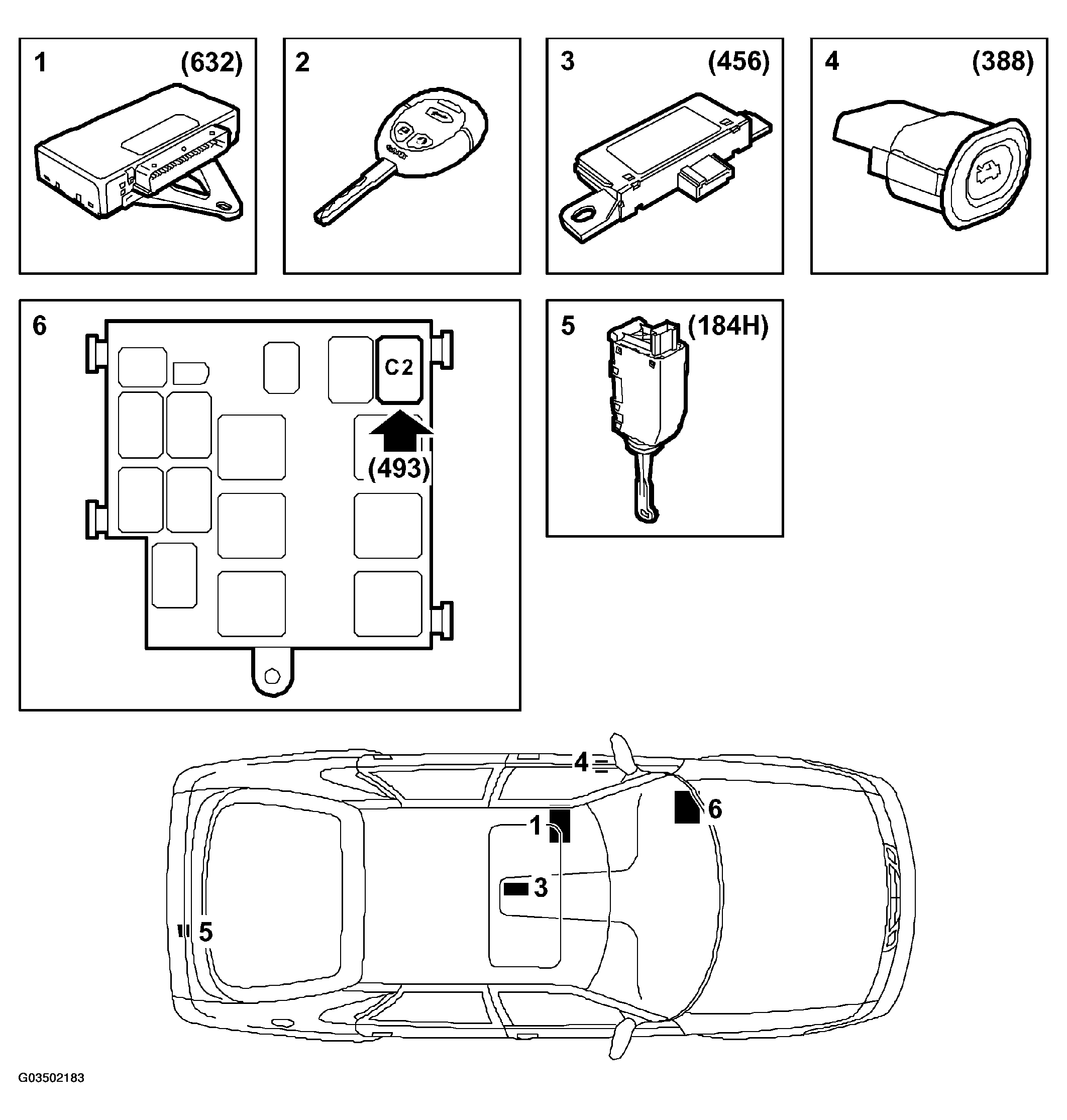

Fig 1: Identifying Main Components (Electric Luggage Compartment Opening)
G03502183Courtesy of SAAB-SCANIA OF AMERICA, INC.
  1. Control module, TWICE (632)
  2. Car key
  3. Antenna, remote control, central locking system (456)
  4. Switch, luggage compartment (388)
  5. Motor, central locking system, luggage compartment (184H)
  6. Relay, central locking system, luggage compartment (493)
