Bus communication, diesel PSG 16

WARNING: This page is about a different car, the 2001 Saab 9-3. However, it is still accessible from the selected car via links, so may be relevant.

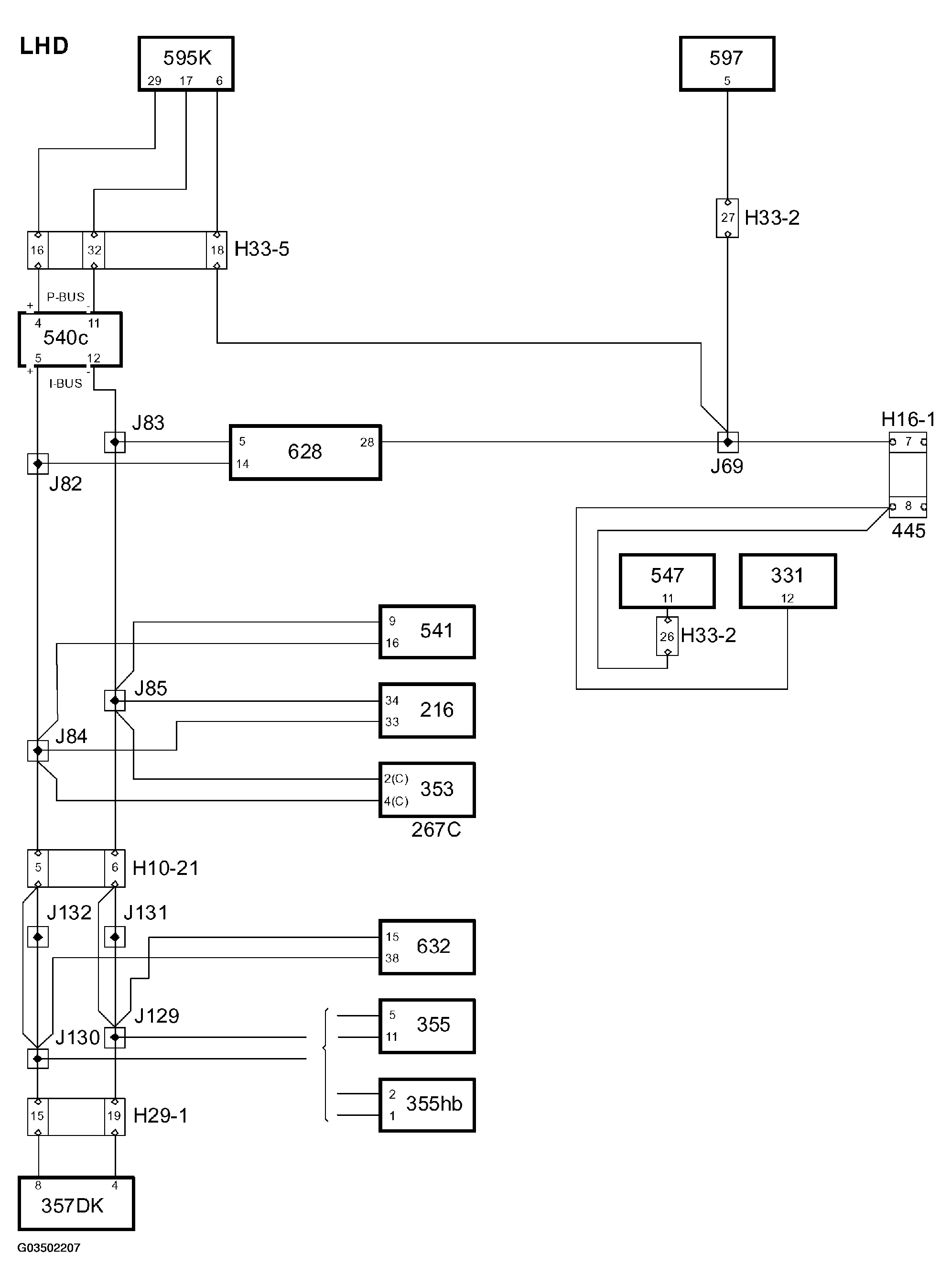

Fig 1: Circuit Diagram - Bus Communication, Diesel PSG 16 (LHD)
G03502207Courtesy of SAAB-SCANIA OF AMERICA, INC.

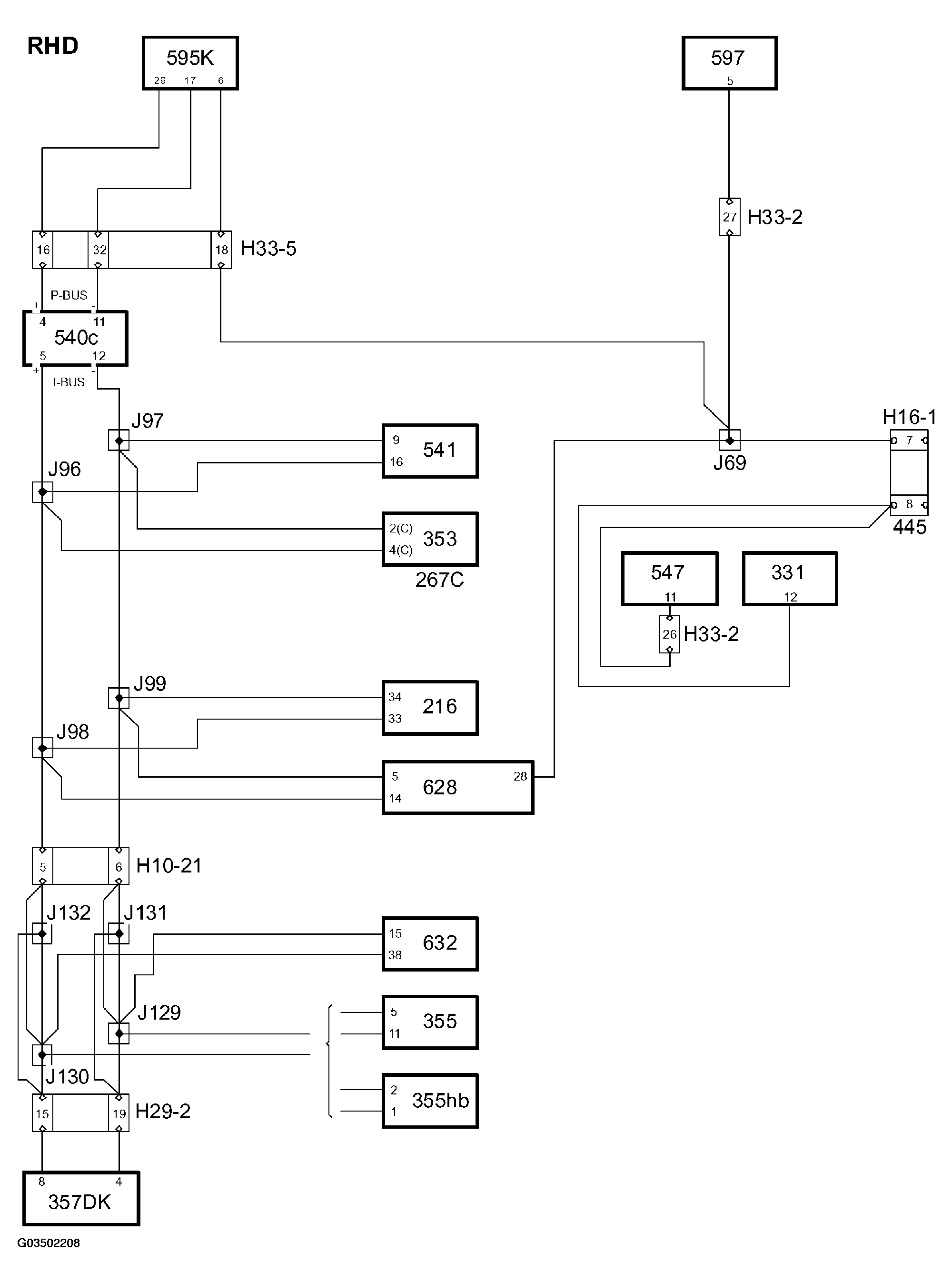

Fig 2: Circuit Diagram - Bus Communication, Diesel PSG 16 (RHD)
G03502208Courtesy of SAAB-SCANIA OF AMERICA, INC.
