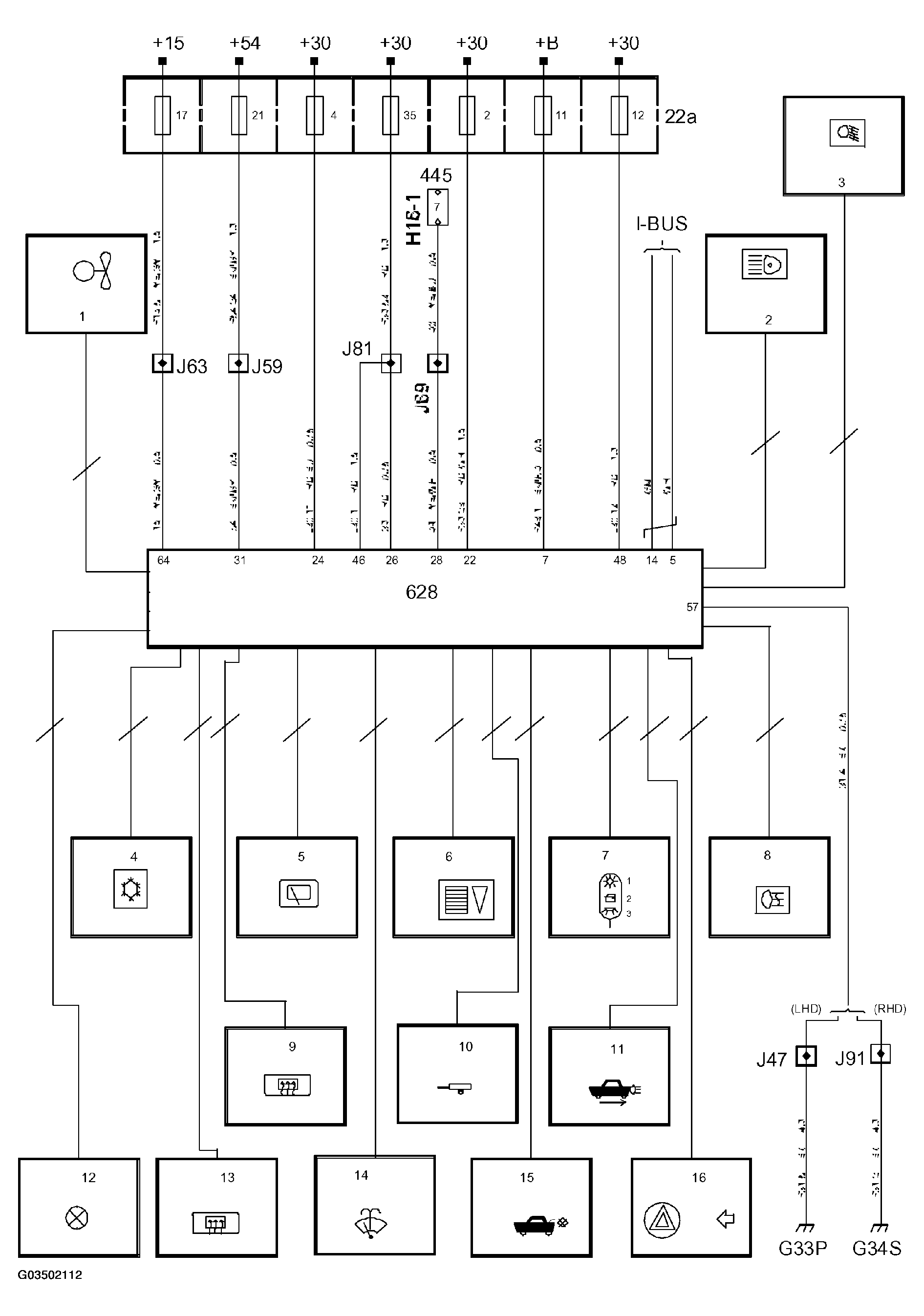

Section 23 (Dice): Wiring diagram: Dice: Notes
WARNING: This page is about a different car, the 2001 Saab 9-3. However, it is still accessible from the selected car via links, so may be relevant.
For DICE control module circuit wiring diagram, see BODY COMPUTER in SYSTEM WIRING DIAGRAMS article.
- Petrol engine:
Radiator fan system, one speed
Radiator fan system, 2 speeds
Diesel engine:
Radiator fan system, one speed
Radiator fan system, 2 speeds
- Main lighting
- Fog light
- Air conditioning, A/C
- Rear window wiper
- Lighting for buttons and controls
- Interior lighting and reading lamps
- Interior lighting and reading lamps 3D/5D
- Interior lighting and reading lamps, Convertible
- Rear fog lights
- Manual control panel, heating & ventilation
- Trailer connector
- Towbar provision 3D/5D
- Towbar provision Convertible
- Reversing lights
- Reversing lights, manual gearbox
- Reversing lights, automatic transmission
- Glove box light
- Electrically heated rear window and rear mirrors
- Windscreen wipers
- Luggage compartment lighting
- Direction indicators, hazard flashers
