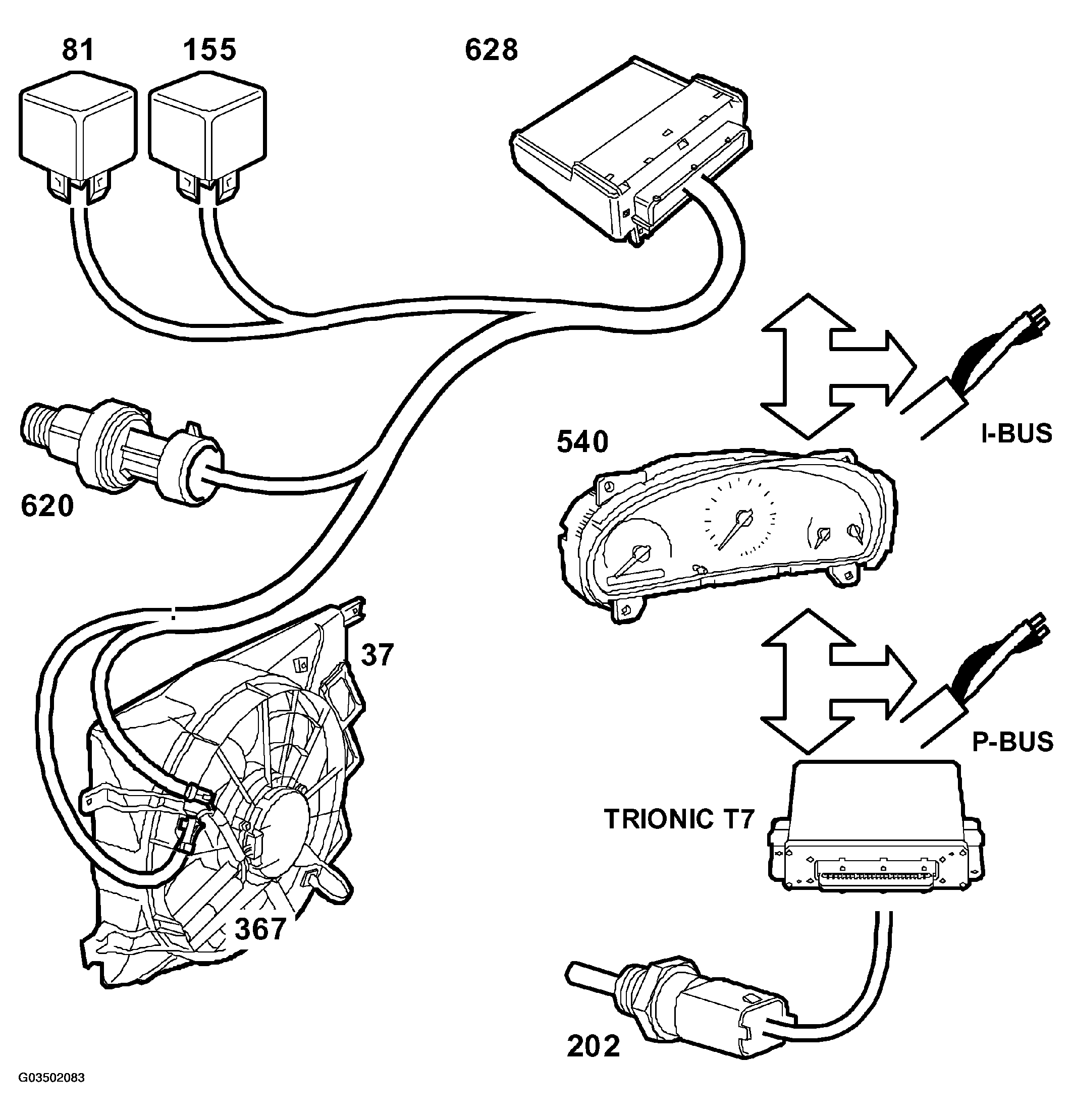

System overview, radiator fan system, petrol engine, Trionic T7 (2-speed)
WARNING: This page is about a different car, the 2001 Saab 9-3. However, it is still accessible from the selected car via links, so may be relevant.
- Control module, DICE (628)
- Relay, 2-speed radiator fan, low speed (155)
- Relay, 2-speed radiator fan, high-speed (81)
- Motor, radiator fan (37)
- Engine management system, petrol (Trionic T7)
- Resistor, 2-speed radiator fan (367)
- Main Instrument Unit (540d)
- Engine coolant temperature sensor (202)
- Pressure sensor, A/C (620)
