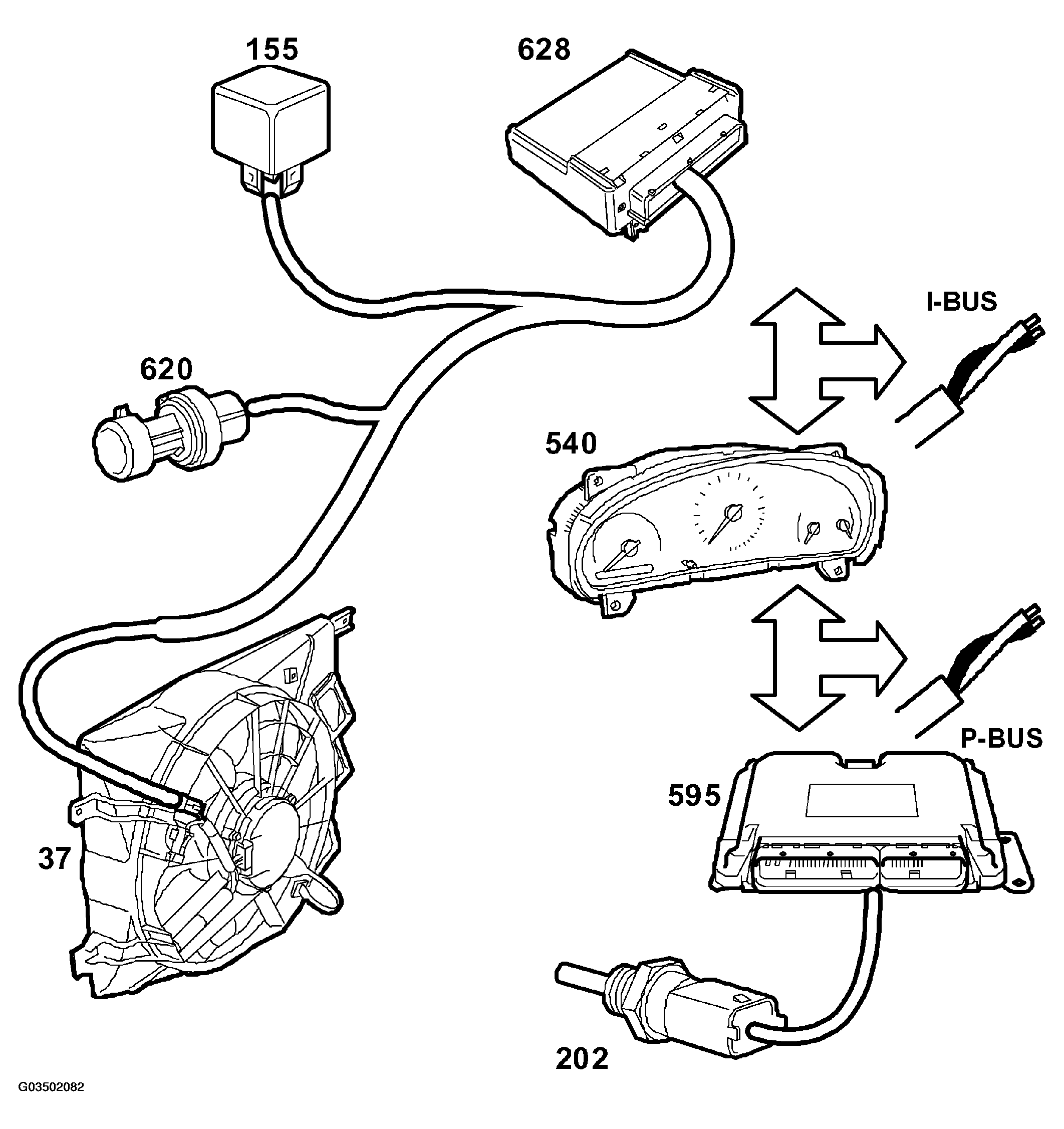

System overview, radiator fan system, diesel engine (1 speed)
WARNING: This page is about a different car, the 2001 Saab 9-3. However, it is still accessible from the selected car via links, so may be relevant.
- Control module, DICE (628)
- Relay, radiator fan (155)
- Motor, radiator fan (37)
- Engine management system, diesel (595)
- Main instrument unit (540)
- Engine coolant temperature sensor (202)
- Pressure sensor, A/C (620)
