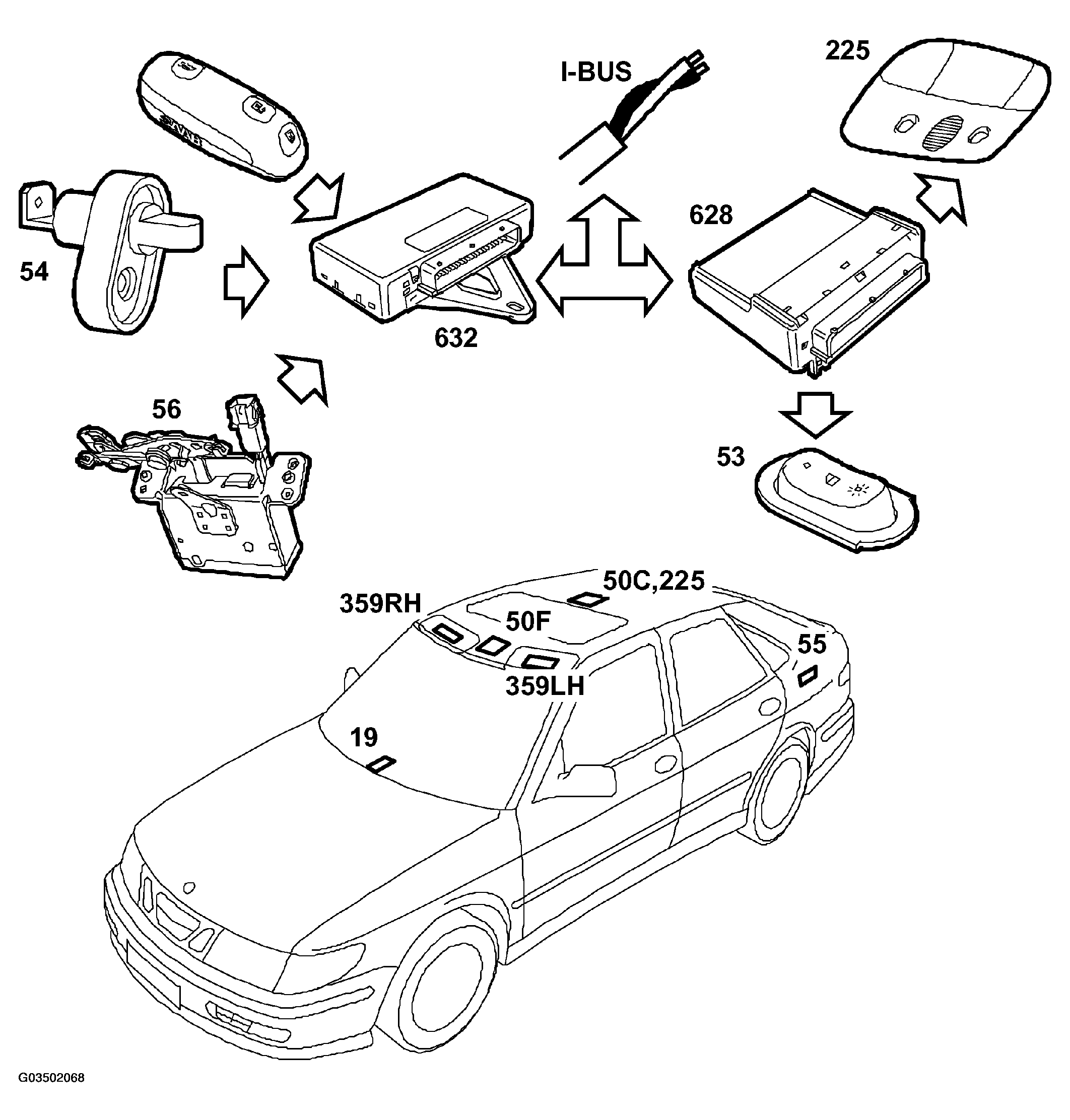

System overview, interior lighting
WARNING: This page is about a different car, the 2001 Saab 9-3. However, it is still accessible from the selected car via links, so may be relevant.
- Control module, DICE (628)
- Switch, cabin lighting (53)
- Bulb, roof lamp (50). (50C not present in convertible)
- Reading lamps (225)
- Bulbs, vanity mirror lighting (359)
- Bulb, glove box lighting (19)
- Switch, luggage compartment lighting (56)
- Bulb, lighting, luggage compartment (55)
- Door switches (54)
- Remote control
- Control module, TWICE (632)
