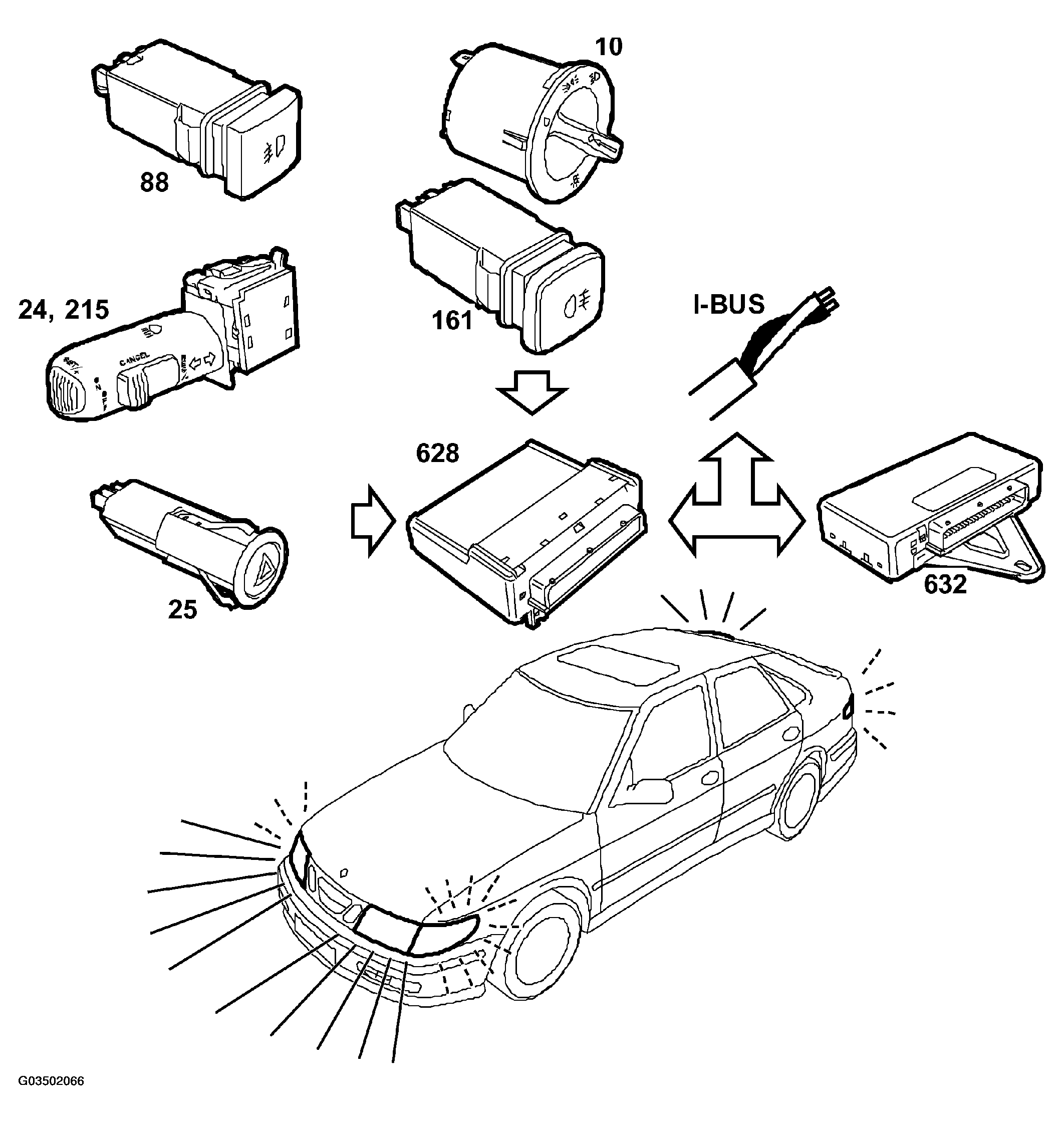

System overview, exterior lighting
WARNING: This page is about a different car, the 2001 Saab 9-3. However, it is still accessible from the selected car via links, so may be relevant.
Courtesy of SAAB-SCANIA OF AMERICA, INC.
- Control module, DICE (628)
- Switch, lights (10)
- Dipswitch (215)
- Switch, fog lights (88)
- Switch, rear fog lights (161)
- Switch, direction indicators (24)
- Switch, hazard flashers (25)
- Control module, TWICE (632)
