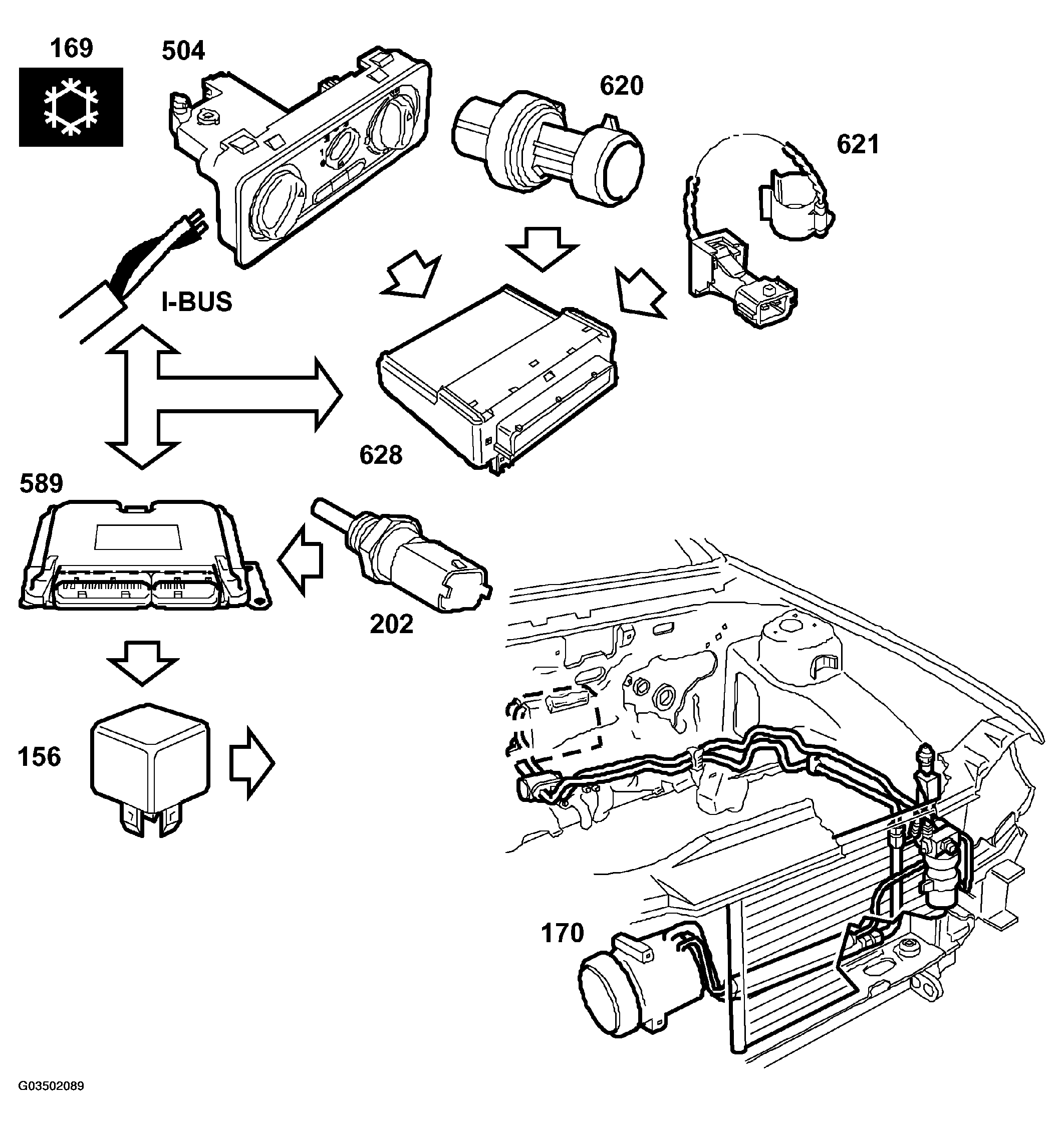

System overview, A/C function, diesel engine (Cars without ACC)
WARNING: This page is about a different car, the 2001 Saab 9-3. However, it is still accessible from the selected car via links, so may be relevant.
- Control module, DICE (628)
- Switch, A/C (169)
- Temperature sensor, A/C evaporator (621)
- Pressure sensor, A/C (620)
- Relay, A/C compressor (156)
- Compressor, A/C (170)
- Engine management system, diesel (595)
- Engine coolant temperature sensor (202)
- Control panel, manual climate control (504)
