Main components, intermittent wiper operation, windscreen

WARNING: This page is about a different car, the 2001 Saab 9-3. However, it is still accessible from the selected car via links, so may be relevant.

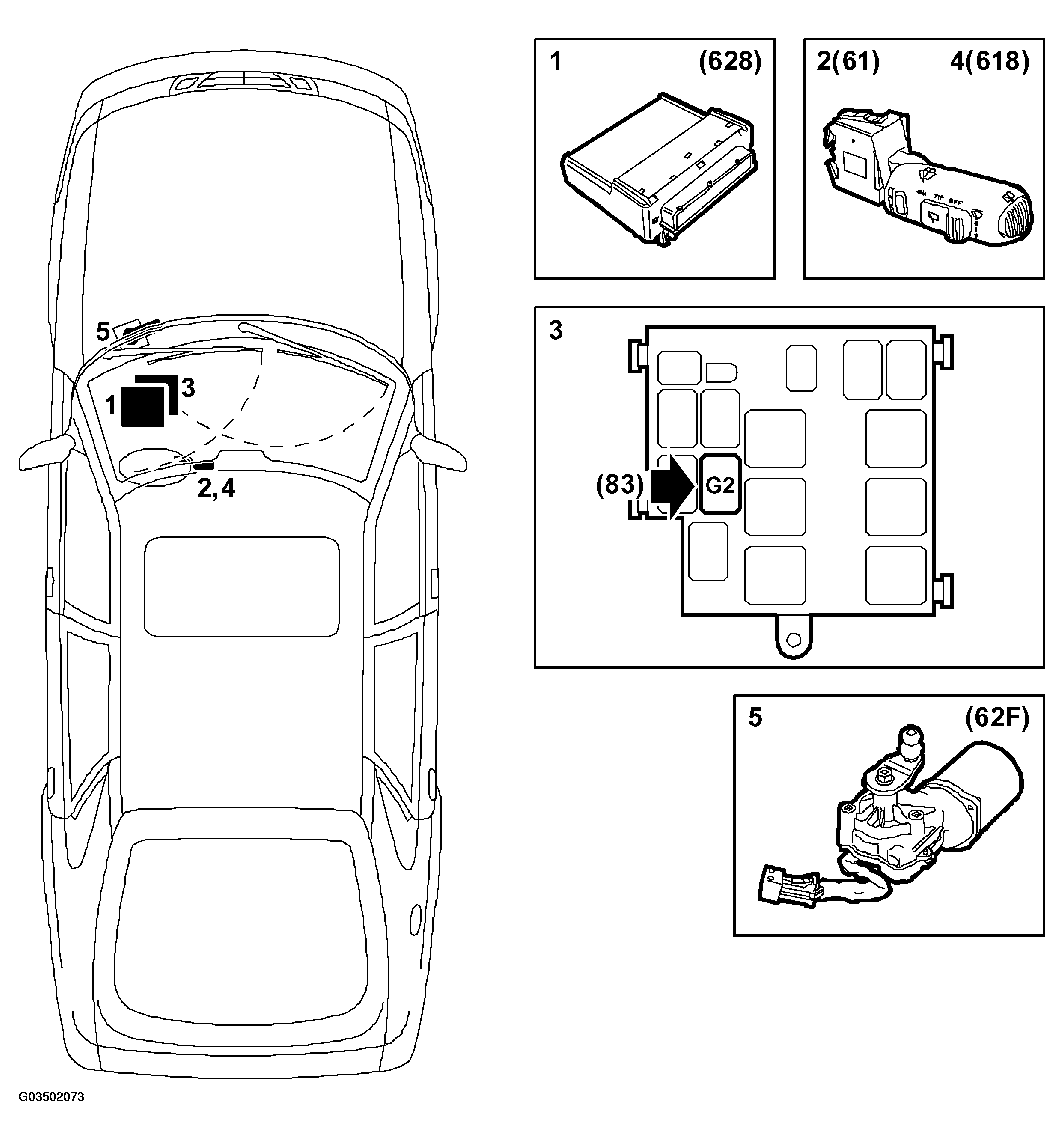

Fig 1: Identifying Main Components (Intermittent Wiper Operation, Windscreen)
G03502073Courtesy of SAAB-SCANIA OF AMERICA, INC.
  1. Control module, DICE (628)
  2. Stalk switch, windscreen wipers (61)
  3. Relay, intermittent wiper (83)
  4. Rheostat, intermittent wiper (618)
  5. Motor, windscreen wipers (62F)
