Main components, intermittent wiper operation, rear window

WARNING: This page is about a different car, the 2001 Saab 9-3. However, it is still accessible from the selected car via links, so may be relevant.

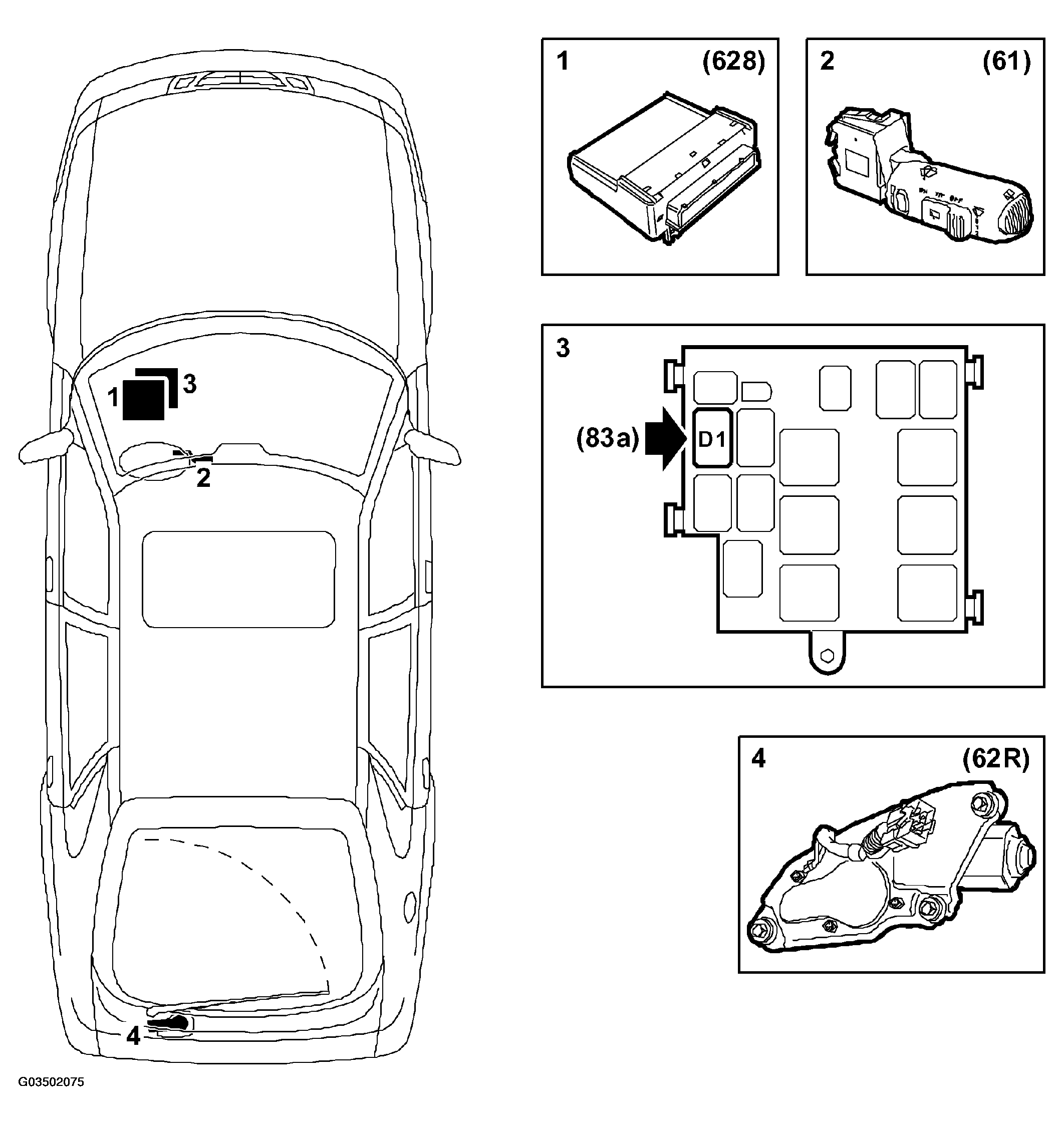

Fig 1: Identifying Main Components (Intermittent Wiper Operation, Rear Window)
G03502075Courtesy of SAAB-SCANIA OF AMERICA, INC.
  1. Control module, DICE (628)
  2. Stalk switch, rear window wiper (61)
  3. Relay, intermittent wiper, rear (83a)
  4. Motor, rear window wiper (62R)
