Main components, headlamp wiping

WARNING: This page is about a different car, the 2001 Saab 9-3. However, it is still accessible from the selected car via links, so may be relevant.

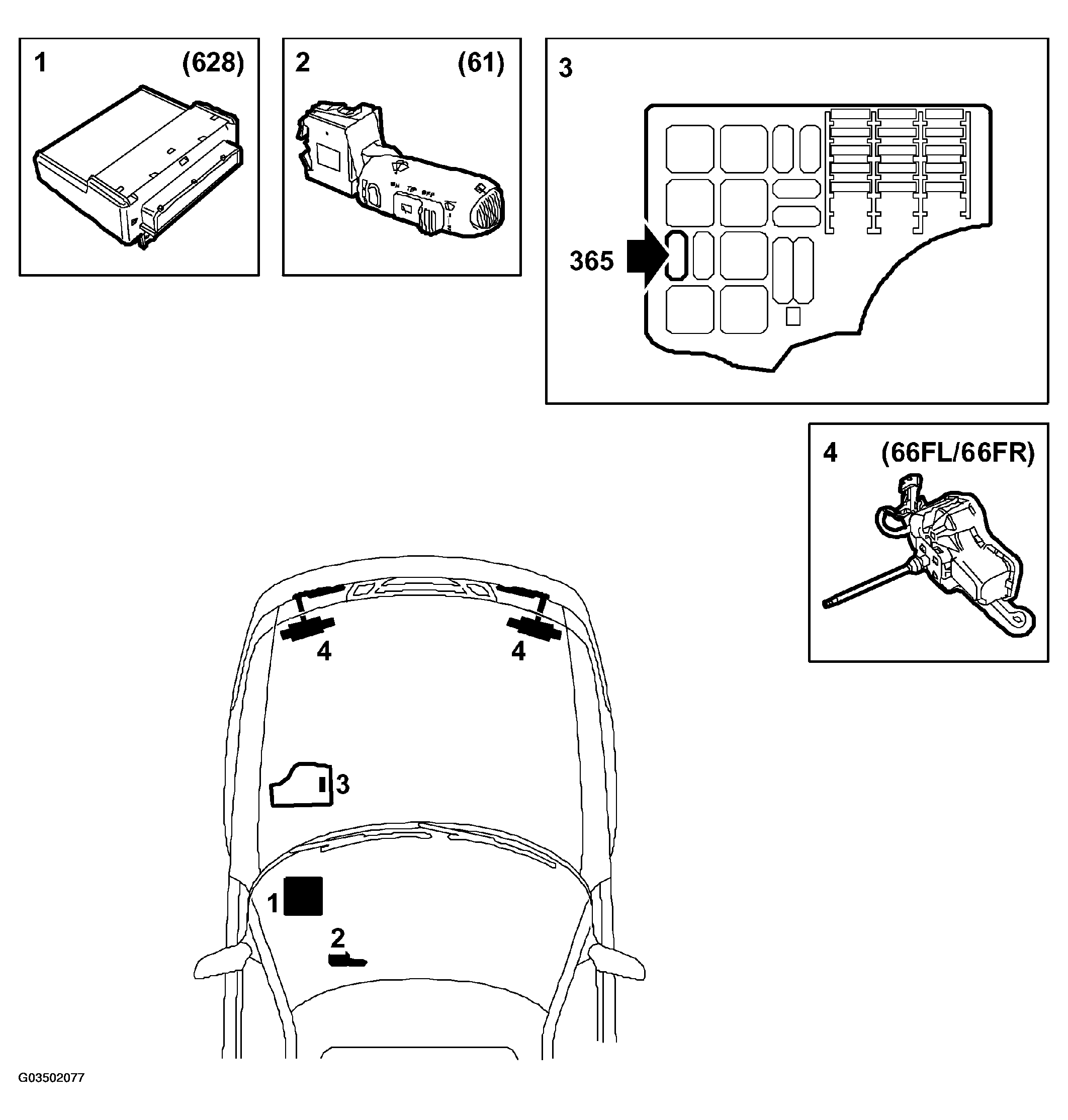

Fig 1: Identifying Main Components (Headlamp Wiping)
G03502077Courtesy of SAAB-SCANIA OF AMERICA, INC.
  1. Control module, DICE (628)
  2. Stalk switch, windscreen wipers (61)
  3. Relay, headlamp wipers (365)
  4. Motor, headlamp wipers (66FL, 66FR)
