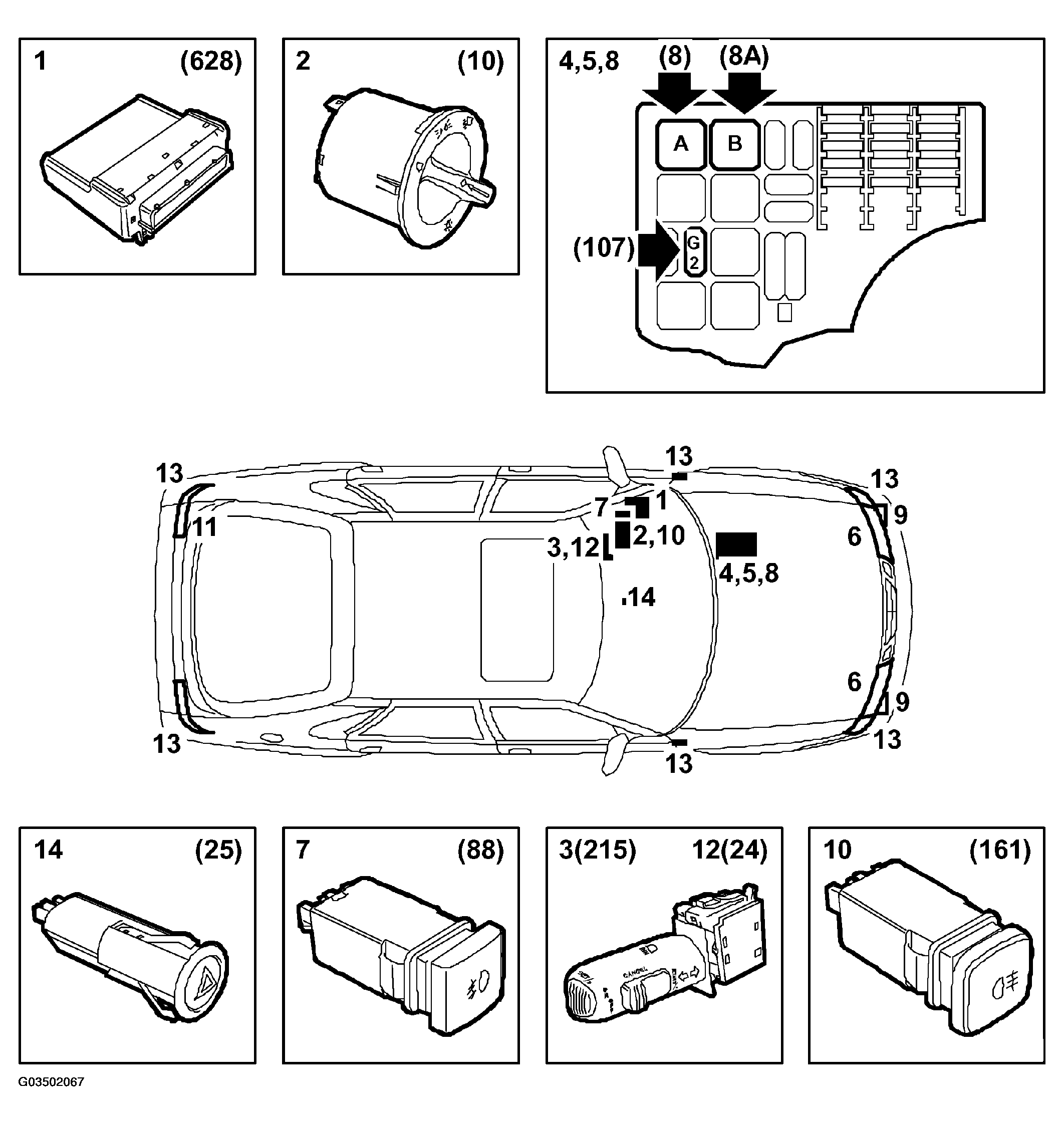

Main components, exterior lighting
WARNING: This page is about a different car, the 2001 Saab 9-3. However, it is still accessible from the selected car via links, so may be relevant.
- Control module, DICE (628)
- Switch, lights (10)
- Dipswitch (215)
- Relay, headlamps (8)
- Main beam relay (8A)
- Bulbs, main/dipped beams (11/12)
- Switch, fog lights (88)
- Relay, fog light (107)
- Bulbs, fog lights (85)
- Switch, rear fog lights (161)
- Bulb, rear fog light (33)
- Switch, direction indicators (24)
- Bulbs, direction indicators (27)
- Switch, hazard flashers (25)
