Main components, button illumination and lighting for controls

WARNING: This page is about a different car, the 2001 Saab 9-3. However, it is still accessible from the selected car via links, so may be relevant.

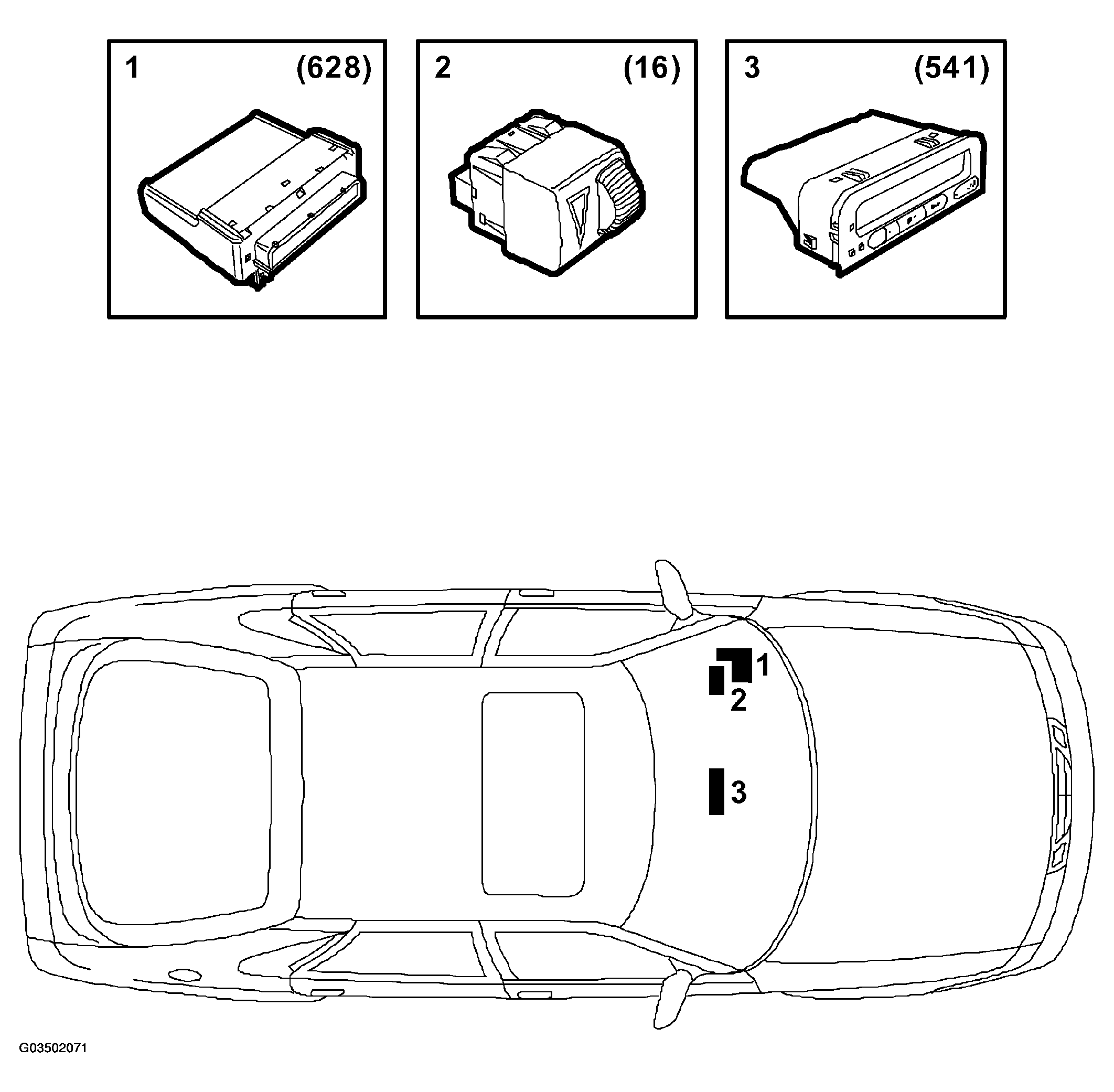

Fig 1: Identifying Main Components (Button Illumination And Lighting For Controls)
G03502071Courtesy of SAAB-SCANIA OF AMERICA, INC.
  1. Control module, DICE (628)
  2. Rheostat, instrument lighting (16)
  3. SID (541)
