Test readings, control module connections: Connector

WARNING: This page is about a different car, the 2001 Saab 9-3. However, it is still accessible from the selected car via links, so may be relevant.

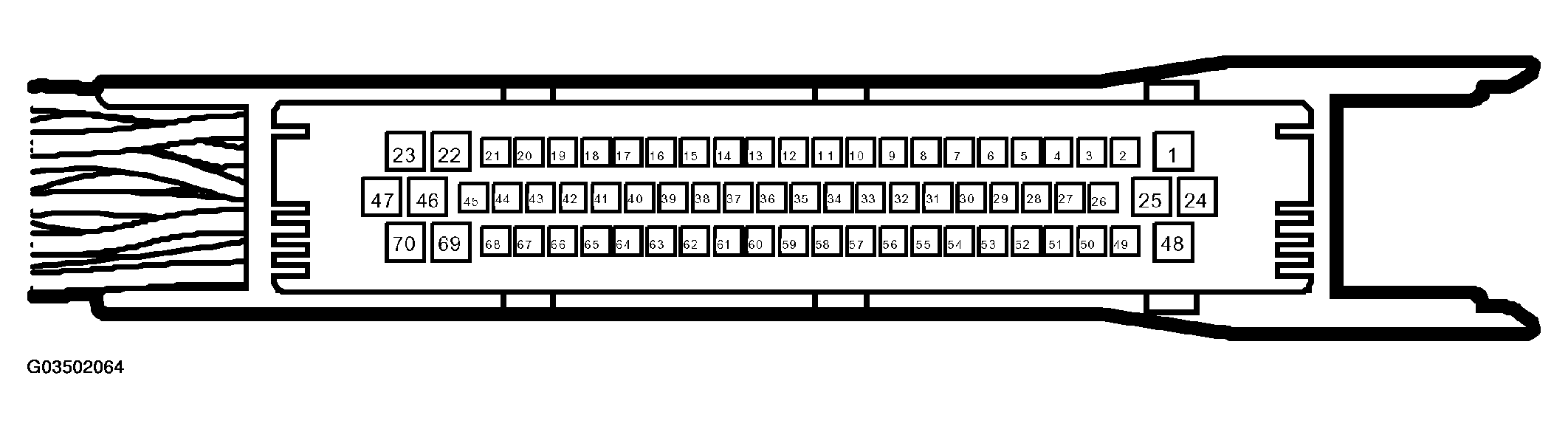

Fig 1: Identifying Connector Pinouts
G03502064Courtesy of SAAB-SCANIA OF AMERICA, INC.

> = greater than; < = less than; ~ = alternating current (LP: LOGIC PROBE P = select pulse; p = visible pulses)

CONNECTOR PINOUTS REFERENCE

Pin no. Cable color Component/ function In/out Test conditions Test between Test reading See
1   No connection
2 BU/RD Luggage compartment lighting Out Boot lid/tailgate open. 2-57 B+ Lighting and signalling systems,
LUGGAGE COMPARTMENT LIGHTING
3 OG Hazard flasher, switch In Hold switch depressed (closed). 3-26 B+ Lighting and signalling systems
HAZARD FLASHERS
4 GN Dipped beam relay Out Light switch in pos. 2.
Ignition ON
4-26 B+ Lighting and signalling systems
DIPPED BEAM
5 WH I-bus (-). In/Out Bus active 5-57 2-3V BUS COMMUNICATION
6   No connection
7 BN/RD Ignition +B, logic In Key turned in ignition switch 7-57 B+ CONTROL MODULE POWER SUPPLY
BUS COMMUNICATION
8   No connection
9 GN A/C pressure sensor in In Ignition ON 9-54 0.4-4.6V(2 -30 bar) Heating and ventilation, A/C,
REFRIGERANT PRESSURE SENSOR
10 GN/GY Evaporator temperature, sensor.
Power supply
In Ignition ON 10-30 6°C = 2.8-3.7V Heating and ventilation, A/C
WIRING DIAGRAMS

WIRING DIAGRAMS

11 GY Main beam relay Out Main beam, light switch in pos. 2.
Ignition ON
11-26 B+ Lighting and signalling systems
MAIN BEAM
12 YE Headlamp wipers, relay Out Activate with diagnostic tool 26-12 B+ Wash/wipe systems
HEADLAMP WIPERS
13   No connection
14 GN I-bus (+). In/Out Bus active 14-57 2-3V BUS COMMUNICATION
15 GN/RD Light switch, pos. 2 In Light switch in pos. 2.
Ignition ON
15-57 B+ Lighting and signalling systems
MAIN LIGHTING
16 GY/RD Rear fog lights, switch In Light switch in pos. 2.
Ignition ON. Switch held depressed (closed).
16-57 B+ Lighting and signalling systems
REAR FOG LIGHT
17   No connection
18 GY/BK Electrically heated rear window from MCC In Switch held depressed (closed). 18-57 B+ Glass, windows and mirrors
ELECTRICALLY HEATED REAR WINDOW AND DOOR MIRRORS
19 BK/RD Intermittent wiper, rear window, switch. In Ignition ON.
Switch in intermittent position.
19-57 B+ Wash/wipe systems
REAR WINDOW WIPER
20 BN/OG Direction indicators LH, switch In Switch to the left. 20-57 B+ Lighting and signalling systems
DIRECTION INDICATORS
21 BU/WH Intermittent wiper, windscreen, switch. In Ignition ON.
Switch in intermittent position.
21-57 B+ Wash/wipe systems
WINDSCREEN WIPERS
22 RD/WH Direction indicators, power supply +30 In Always +30. 22-57 B+ Lighting and signalling systems
DIRECTION INDICATORS
23 GY/GN Interior Lighting Out Door open 23-57 B+ Lighting and signalling systems
INTERIOR LIGHTING
24 BU/RD Comfort lighting in cabin, power supply +30. In Always +30. 24-57 B+ Lighting and signalling systems
INTERIOR LIGHTING
25 BU/BN Rear fog light bulb. Out Light switch in pos. 2.
Ignition ON. Hold switch depressed (closed).
25-57 B+ Lighting and signalling systems
REAR FOG LIGHT
26 RD DICE, power supply +30 In Always +30. 26-57 B+ CONTROL MODULE POWER SUPPLY
27 BU Intermittent wiper, rear window, relay. Out Activate function with diagnostics instrument. 27-B+ B+ Wash/wipe systems
REAR WINDOW WIPER
28 YE/BU Diagnostics KW 2000 In/Out Communication with DICE or a bus system 28-57 11V BUS COMMUNICATION

NO DIAGNOSTICS COMMUNICATION

29 YE/RD Front fog lights; relay. Out Market dependent or activate with diagnostics instrument. 26-29 B+ Lighting and signalling systems
FRONT FOG LIGHTS
30 BK Evaporator temperature sensor, ground In Always 26-30 B+ Heating and ventilation, A/C
WIRING DIAGRAMS

WIRING DIAGRAMS

31 BN/GY Ignition +54, logic. In Key in "ON" position 31-57 B+ CONTROL MODULE POWER SUPPLY
32   No connection
33 RD/WH Intermittent wiper potentiometer, ground. In Always 26-33 B+ Wash/wipe systems
WINDSCREEN WIPERS
34   No connection
35 BN/RD Radiator fan low speed, relay Out Activate function with diagnostics instrument. 26-35 B+ COOLING SYSTEM

36   No connection
37   No connection
38 GN/GY A/C pressure sensor, power supply Out Ignition ON 38-57 5V Heating and ventilation, A/C
WIRING DIAGRAMS

WIRING DIAGRAMS

39 YE/GY Light switch in zero position In Light switch in zero position.
Ignition ON
39-57 B+ (fuse 15 fitted)
0V (fuse 15 not fitted)
Lighting and signalling systems
MAIN LIGHTING
40   Rear window wiper, parking position In Rear window wiper not in parked position.
Ignition ON
40-57 B+ Wash/wipe systems
REAR WINDOW WIPER
41 BU/WH Main/dipped beam In Move stalk switch to farthest position 41-57 B+ Lighting and signalling systems
MAIN LIGHTING
42 BU/YE Rear window washer, switch. In Ignition ON.
Switch activated.
42-57 B+ Wash/wipe systems
WASHER SYSTEM, REAR WINDOW
43   No connection
44 GY/OG Direction indicators RH, switch In Switch to the right 44-57 B+ Lighting and signalling systems
DIRECTION INDICATORS
45 WH Reversing-light switch In Reverse gear selected/engaged. 45-57 B+ Lighting and signalling systems
REVERSING LIGHTS
46 RD Map/compartment lighting, power supply +30 In Always +30. 46-57 B+ Lighting and signalling systems
READING AND MIRROR LIGHTING
47 BK/GN Right direction indicator, bulb. Out Switch to the right
Ignition ON
47-57 B+ Lighting and signalling systems
DIRECTION INDICATORS
48 RD Rear fog lights, power supply +30. In Always +30. 48-57 B+ Lighting and signalling systems
REAR FOG LIGHT
49 GN/WH Button illumination Out Light switch in pos. 2.
Ignition ON. Rheostat on max.
49-57 PWM 3.5V to B+ Lighting and signalling systems
LIGHTING FOR BUTTONS AND CONTROLS
50   No connection
51   No connection
52 GN/RD Electrically heated rear window, relay Out Ignition ON
Hold switch depressed (closed).
26-52 B+ Glass, windows and mirrors
ELECTRICALLY HEATED REAR WINDOW AND DOOR MIRRORS
53 BN/GY Radiator fan high speed, relay Out Activate function with diagnostics instrument. 26-53 B+ RADIATOR FAN
54 VT/WH A/C pressure sensor, ground. In Always 26-54 B+ Heating and ventilation, A/C
WIRING DIAGRAMS

WIRING DIAGRAMS

55 WT/WH Intermittent wiper, potentiometer. In Ignition ON 55-57 2 sec: 0V 15 sec: 6.3V Wash/wipe systems
WINDSCREEN WIPERS
56   No connection
57 BK Ground. In Always 57-B+ B+ CONTROL MODULE GROUND
58 GY/RD Intermittent wiper, windscreen, relay. Out Activate function with diagnostics instrument. 58-B+ B+ Wash/wipe systems
WINDSCREEN WIPERS
59   No connection
60   No connection
61   No connection
62 BN/BK Front fog lights, switch In Ignition ON
Hold switch depressed (closed).
62-57 B+ Lighting and signalling systems
FRONT FOG LIGHTS
63 BN Windscreen wipers, parking position. In Windscreen wiper not in parked position.
Ignition ON
63-57 B+ Wash/wipe systems
WINDSCREEN WIPERS
64 YE/GY Ignition +15, logic. In Ignition ON 64-57 B+ CONTROL MODULE POWER SUPPLY
65 GY A/C request MCC In Ignition ON
Hold A/C switch depressed (closed).
65-57 B+ Heating and ventilation, A/C
WIRING DIAGRAMS

WIRING DIAGRAMS

66   No connection
67   No connection
68 GN/WH Windscreen washers, switch In Ignition ON.
Switch activated.
68-57 B+ Wash/wipe systems
WASHER SYSTEM, WINDSCREEN
69 GY/BK Direction indicators LH, lamp Out Ignition ON.
Switch to the left.
69-57 B+ Lighting and signalling systems
DIRECTION INDICATORS
70 GN/BU Reading lamp Out Ignition ON 70-57 B+ Lighting and signalling systems
READING AND MIRROR LIGHTING
