+B missing when +15 is on

WARNING: This page is about a different car, the 2001 Saab 9-3. However, it is still accessible from the selected car via links, so may be relevant.

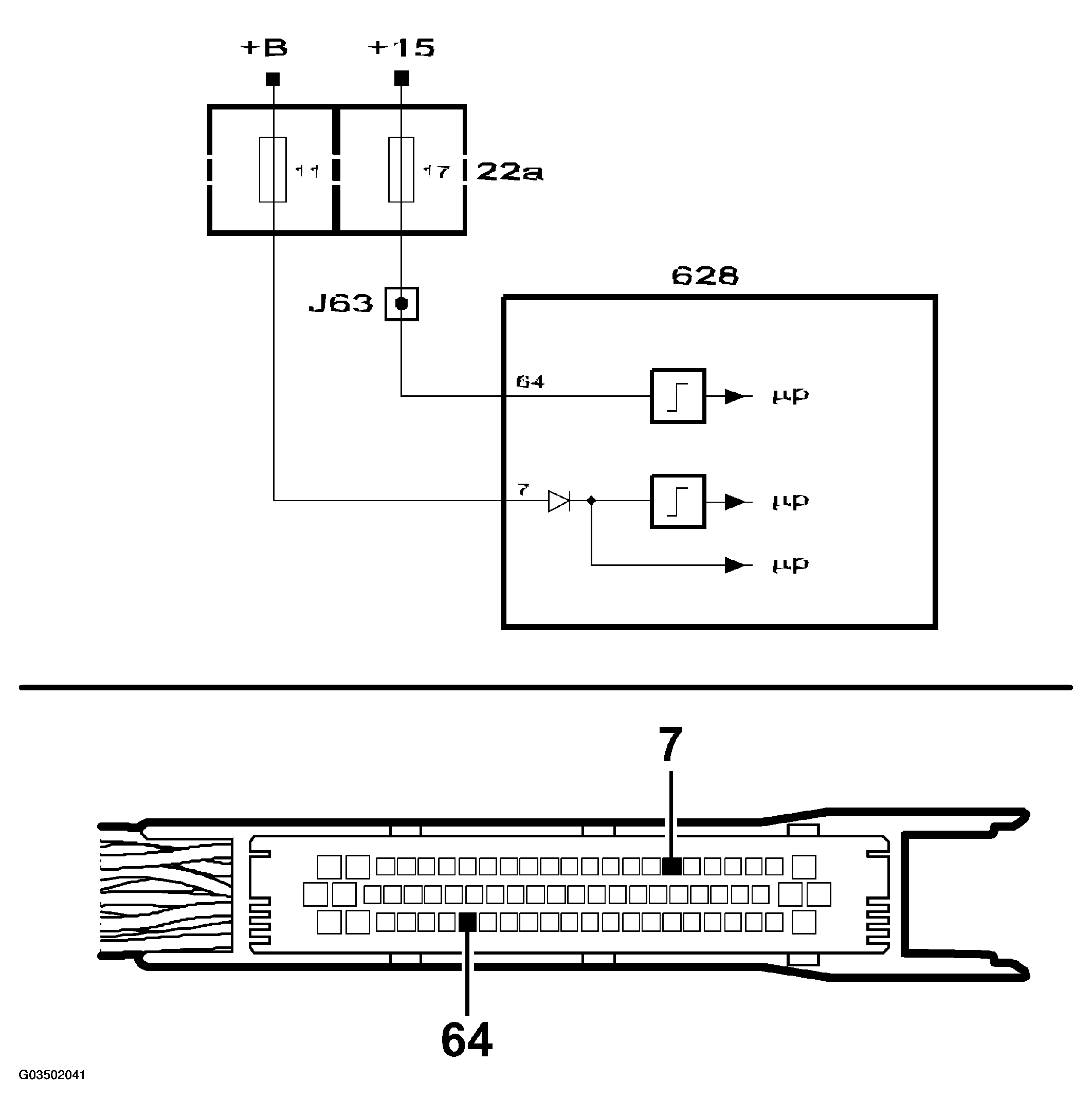

Fig 1: +B Missing When +15 Is On Circuit
G03502041Courtesy of SAAB-SCANIA OF AMERICA, INC.
