Rear window wiper: Notes

WARNING: This page is about a different car, the 2001 Saab 9-3. However, it is still accessible from the selected car via links, so may be relevant.

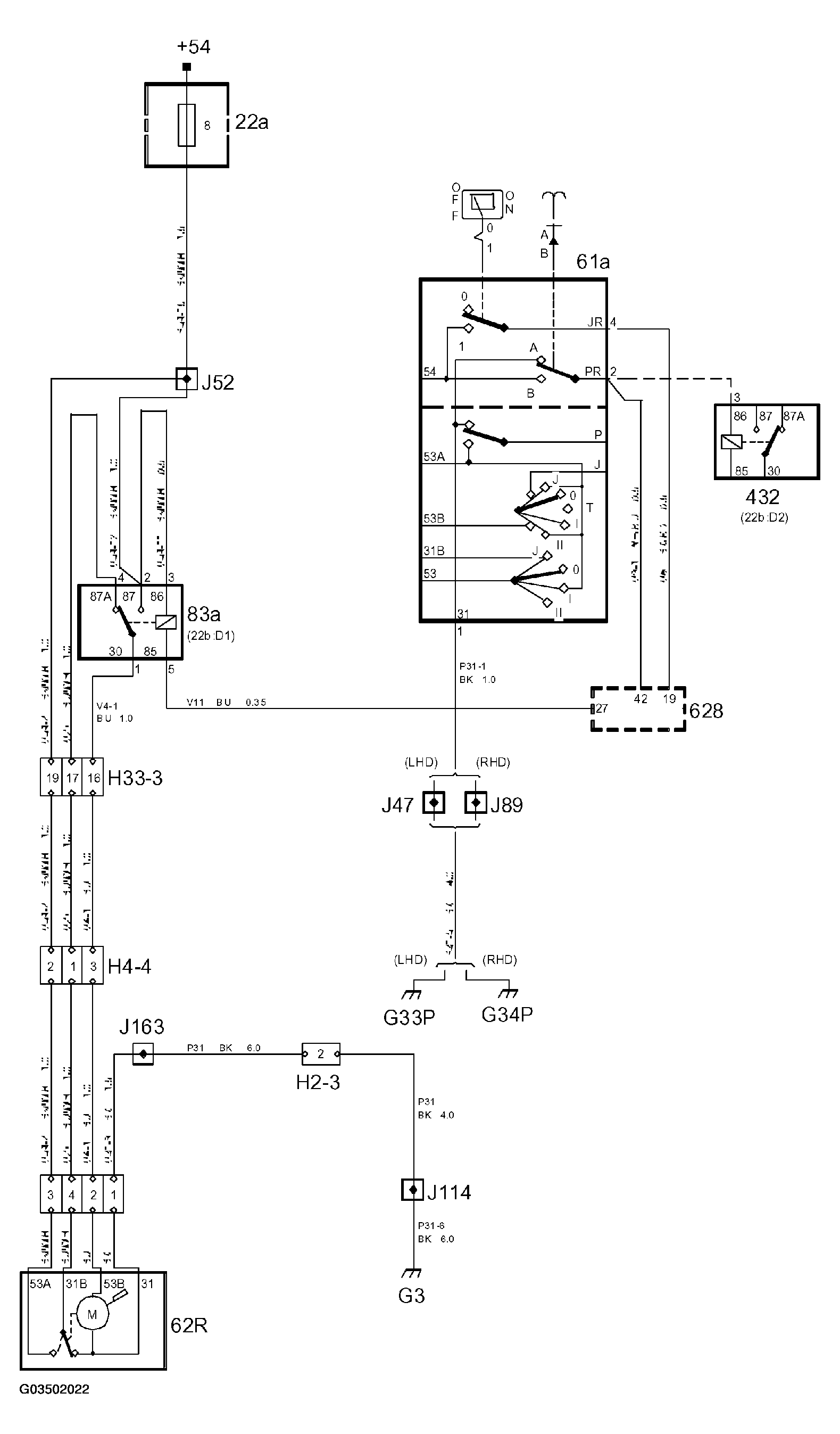

Fig 1: Wiring Diagram - Rear Window Wiper
G03502022
