Low Speed (I)

WARNING: This page is about a different car, the 2001 Saab 9-3. However, it is still accessible from the selected car via links, so may be relevant.

The windscreen wipers operate with approximately 48 double strokes per minute.

When switch (61) is placed in position (I), +54 voltage is supplied to the switch via fuse 31. Pin 8 in the switch supplies power to pin 3 in the motor (62F).

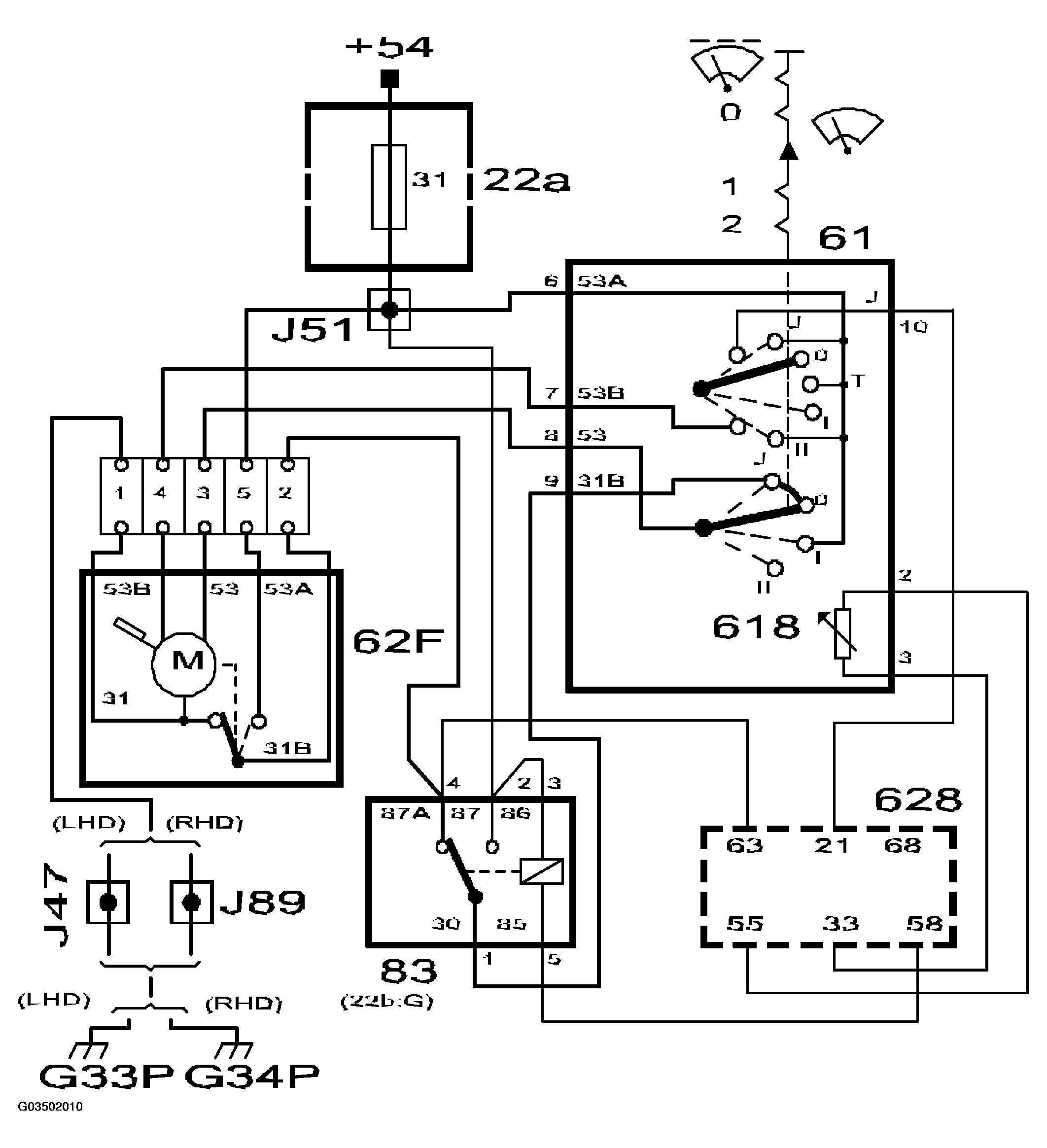

Fig 1: Circuit Diagram - Windscreen Wipers (Low Speed (I))

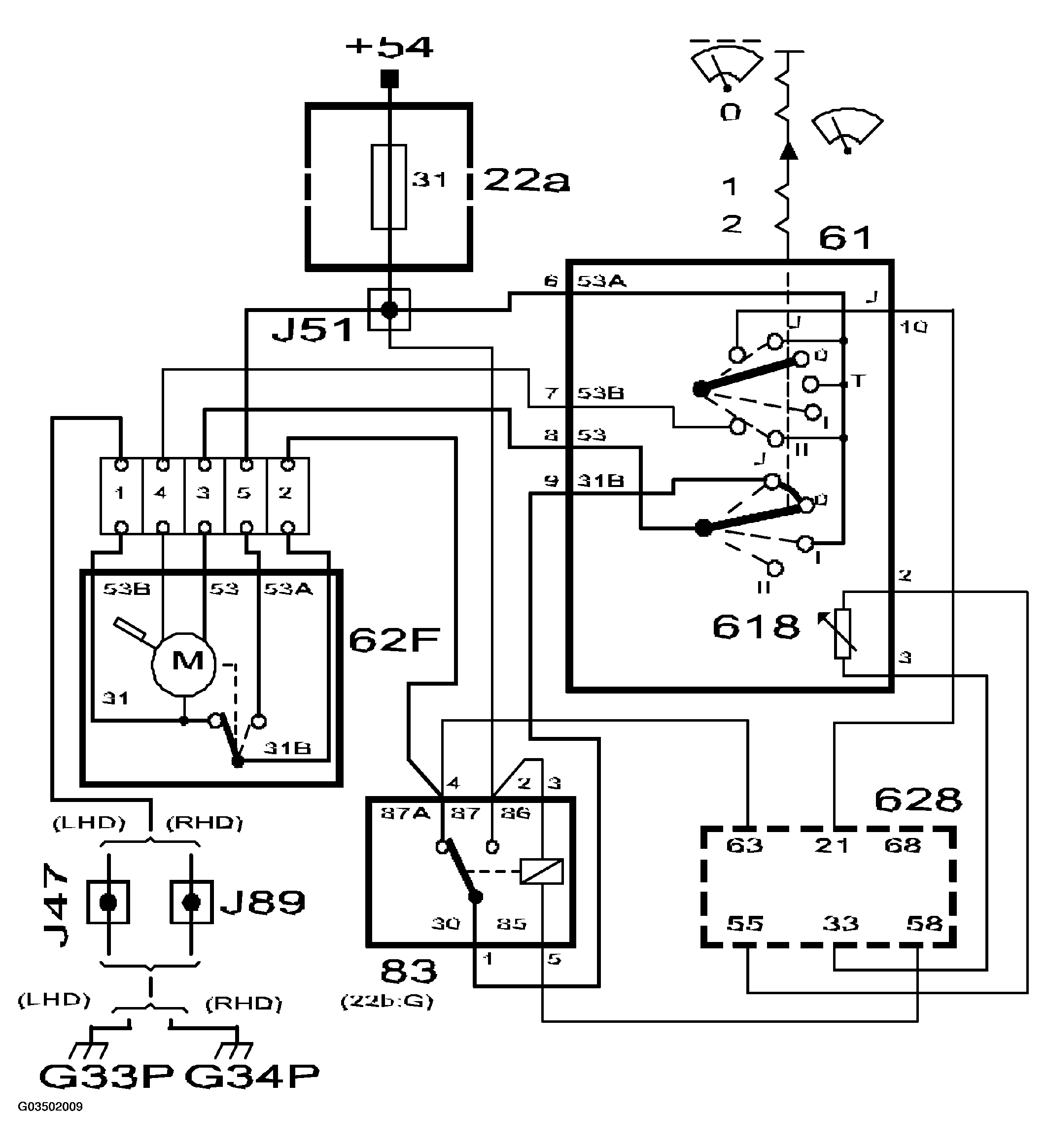

Fig 2: Circuit Diagram - Windscreen Wipers (High Speed (II))
