System overview, rear window wiper

WARNING: This page is about a different car, the 2001 Saab 9-3. However, it is still accessible from the selected car via links, so may be relevant.

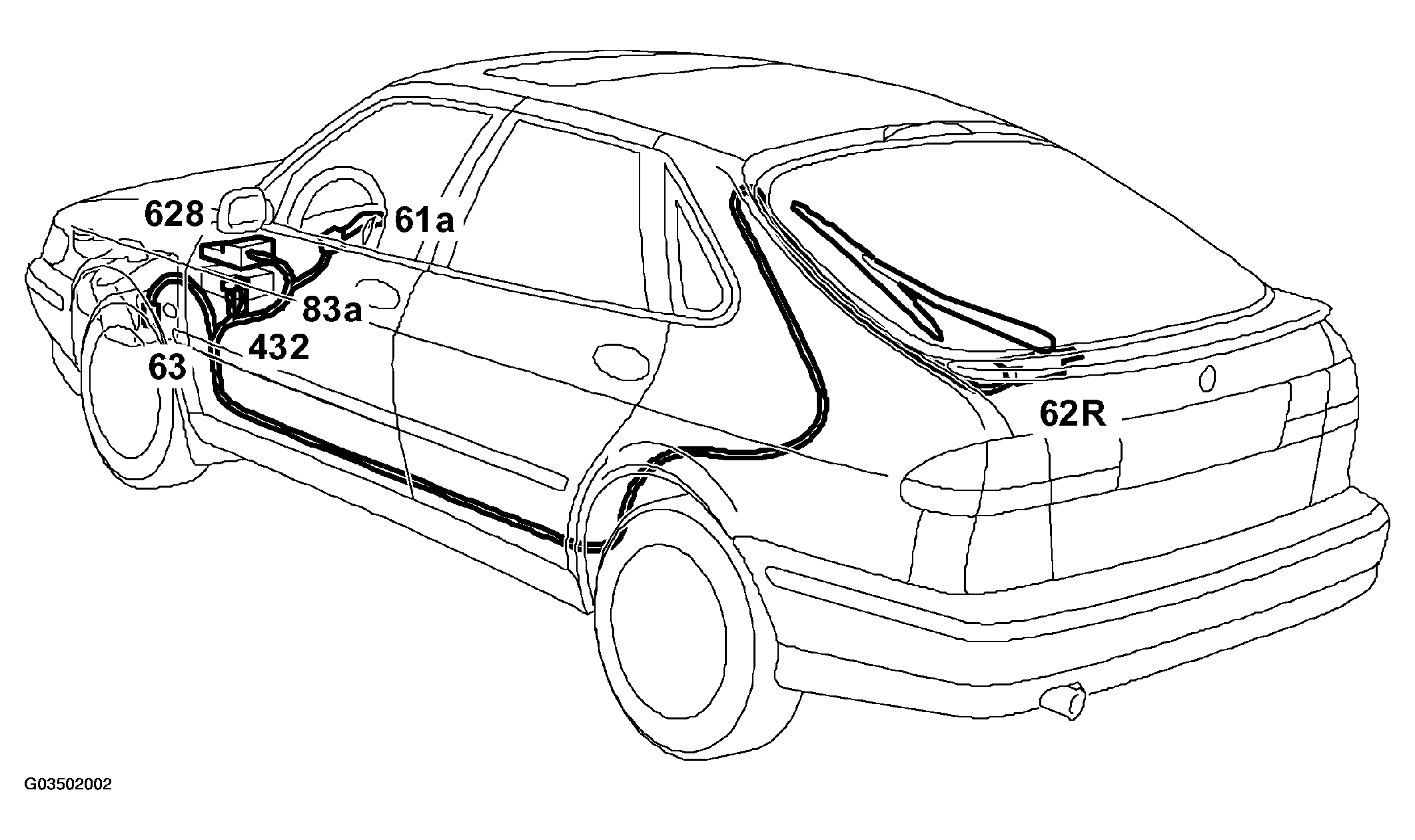

Fig 1: System Overview (Rear Window Wiper)

Switch for the rear window wiper (61a)
Rear window wiper motor (62R)
Washer fluid pump (63)
Relay, intermittent wiper (83a)
Relay, washer fluid pump (432)
DICE (628)
