Main components, rear window wiper

WARNING: This page is about a different car, the 2001 Saab 9-3. However, it is still accessible from the selected car via links, so may be relevant.

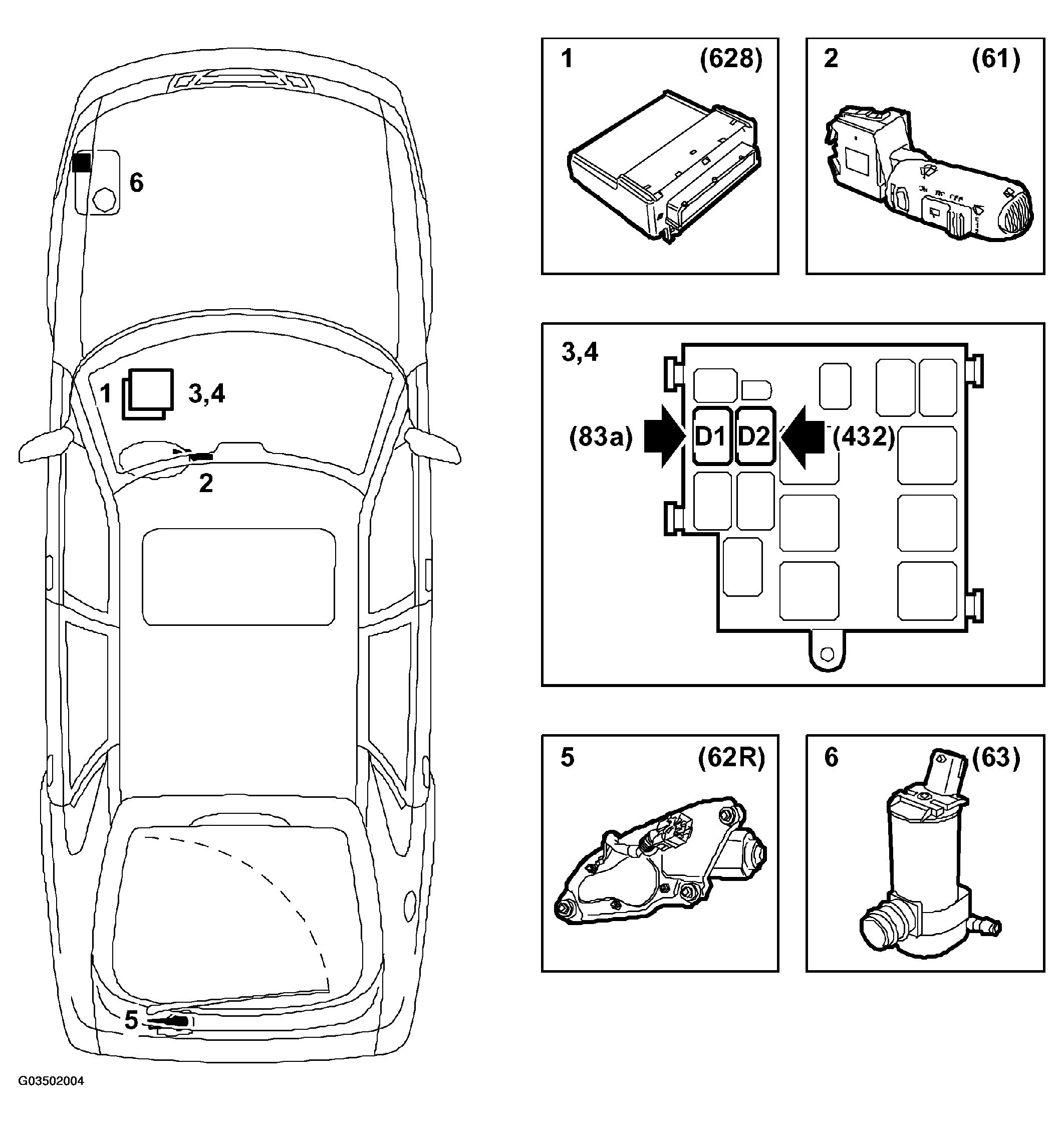

Fig 1: Identifying Main Components (Rear Window Wiper)
G03502004
  1. DICE (628)
  2. Switch for the rear window wiper (61a)
  3. Relay, intermittent wiper (83a)
  4. Relay, washer fluid pump (432)
  5. Rear window wiper motor (62R)
  6. Washer fluid pump (63)
