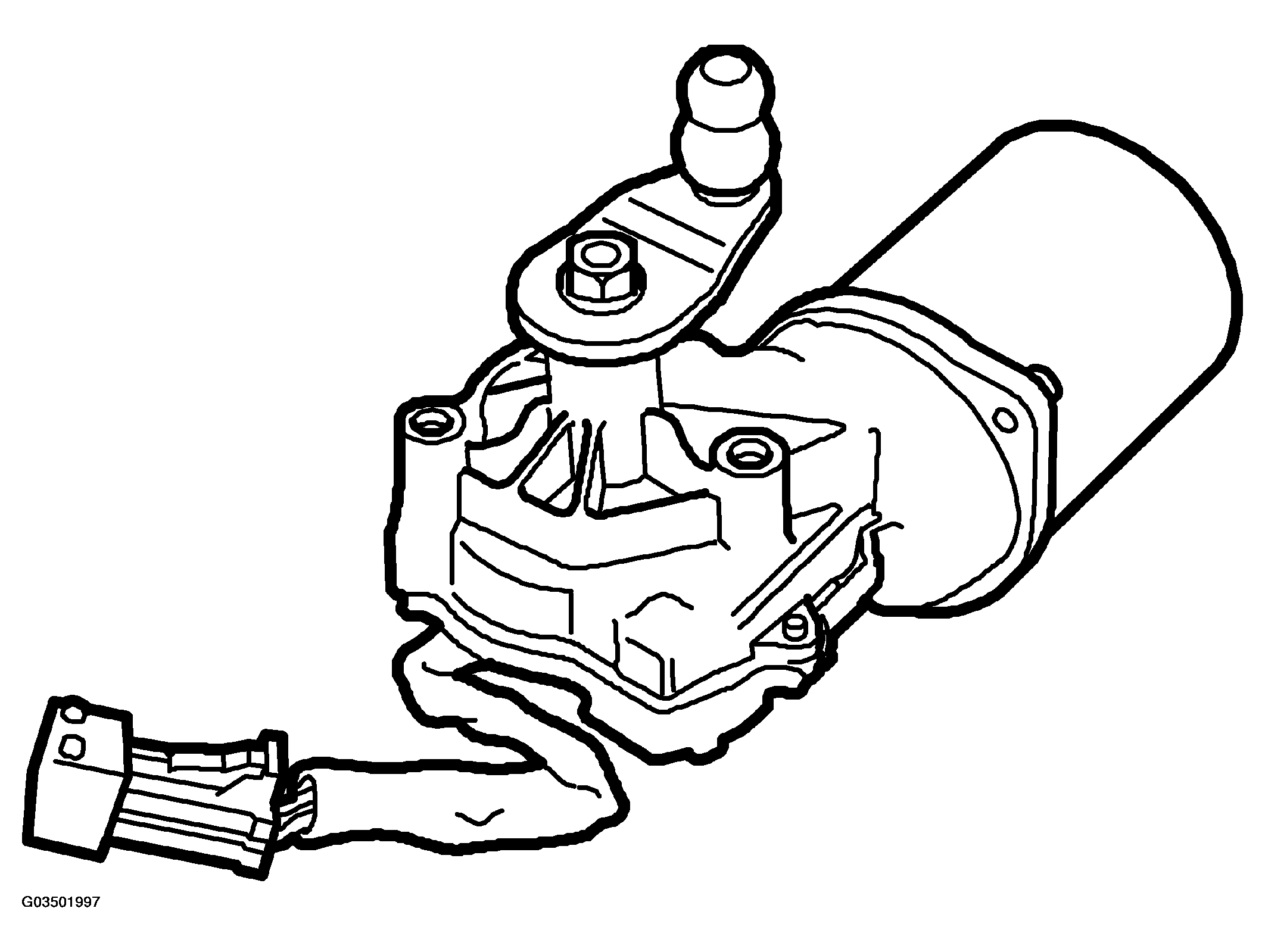

Windscreen wiper motor
WARNING: This page is about a different car, the 2001 Saab 9-3. However, it is still accessible from the selected car via links, so may be relevant.
WINDSCREEN WIPER MOTOR TECHNICAL DATA
| Manufacturer | Denso |
| Stroke (strokes/min.) and power consumption at 13.5V with a wet windscreen: | |
| low speed | 485 rpm |
| high speed | 736 rpm |
| Nominal power consumption (with a wet windscreen after 30 mins. driving): | |
| low speed | 4.5A |
| high speed | 7A |
| Power consumption at 13.5V, jammed motor: (e.g., frozen wiper blades) |
|
| low speed | 40A |
| high speed | 40A |
| Maximum torque (at the spindle, at 13.5 V and with a warm engine) | |
| low speed | 23.56 N.m |
| high speed | 17.55 N.m |
