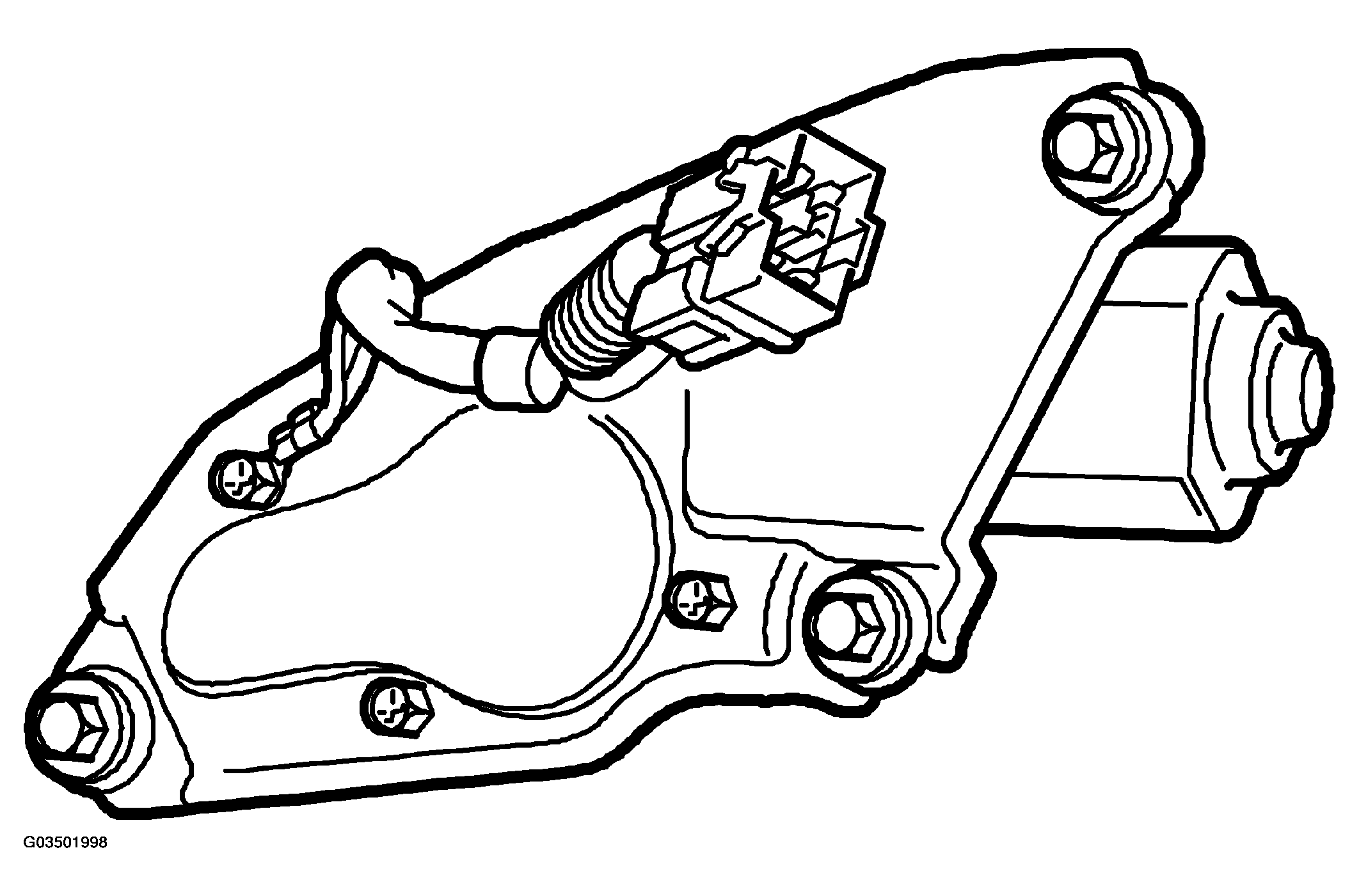

Rear window wiper motor
WARNING: This page is about a different car, the 2001 Saab 9-3. However, it is still accessible from the selected car via links, so may be relevant.
REAR WINDOW WIPER MOTOR TECHNICAL DATA
| Manufacturer |
Denso |
| Stroke with a wet window (strokes/min.) |
385 rpm |
| Maximum torque (at the spindle) |
12 N.m |
| Nominal power consumption with a wet windscreen |
5 A max. |
Power consumption, jammed motor
(e.g., frozen wiper blades) |
14 A max. |
