Fault Symptoms

WARNING: This page is about a different car, the 2001 Saab 9-3. However, it is still accessible from the selected car via links, so may be relevant.

Wash-wipe system inoperative.

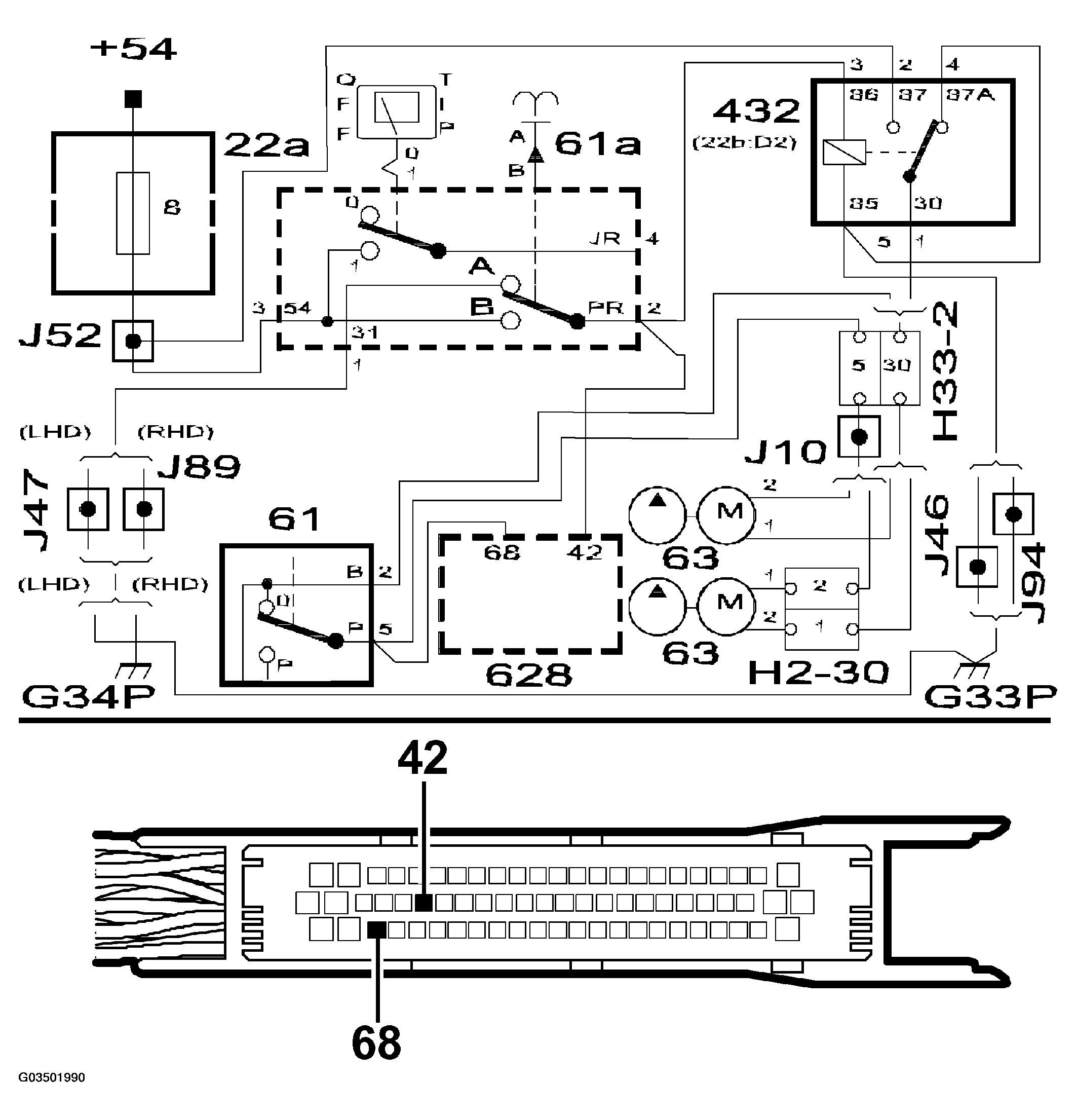

Fig 1: Circuit Diagram - Wash-Wipe System Inoperative (1 Of 2)
G03501990

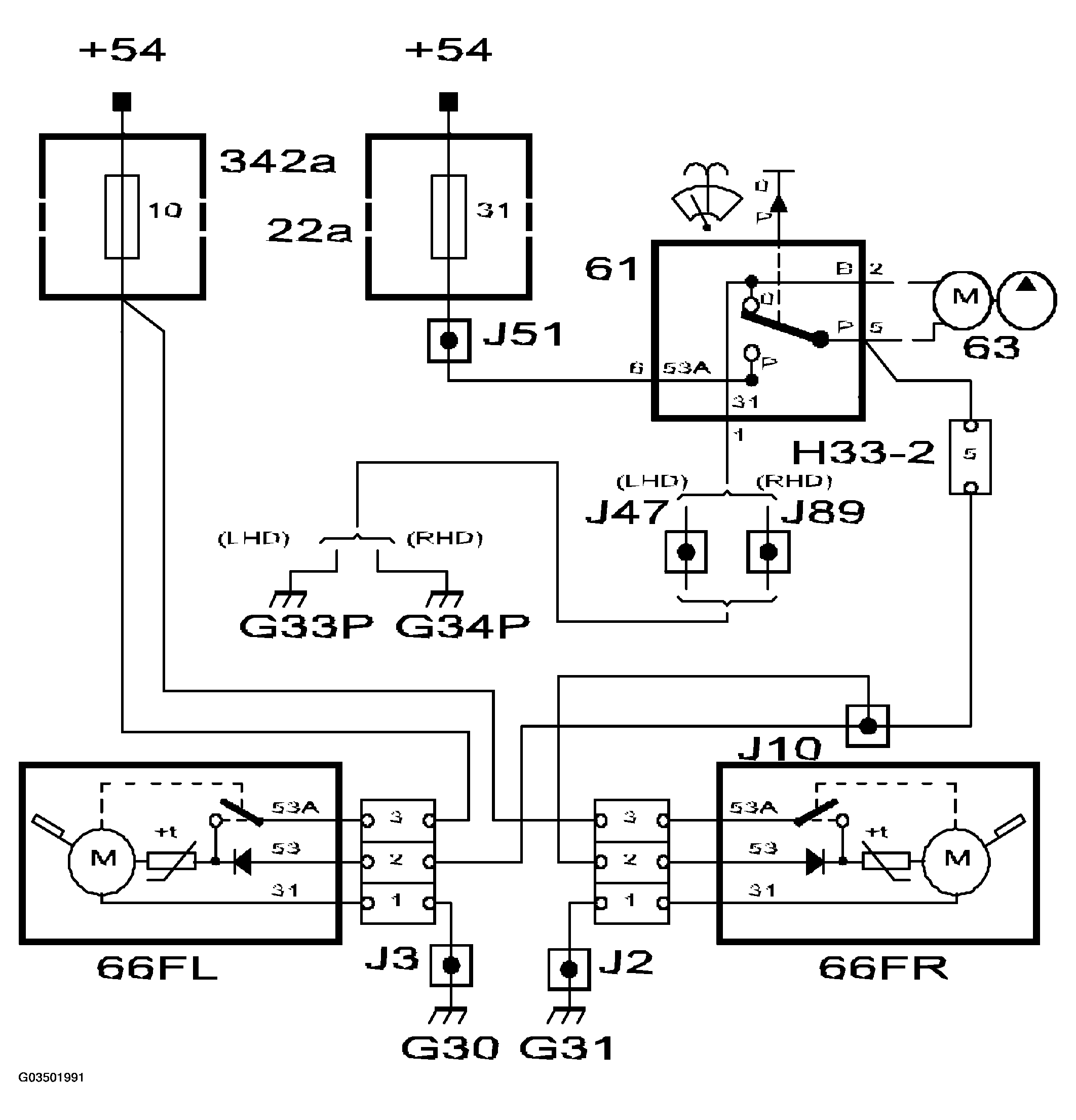

Fig 2: Circuit Diagram - Wash-Wipe System Inoperative (2 Of 2)
G03501991
