Fault Symptoms

WARNING: This page is about a different car, the 2001 Saab 9-3. However, it is still accessible from the selected car via links, so may be relevant.

The intermittent windscreen wipers are either not working or the wipers are in constant motion.

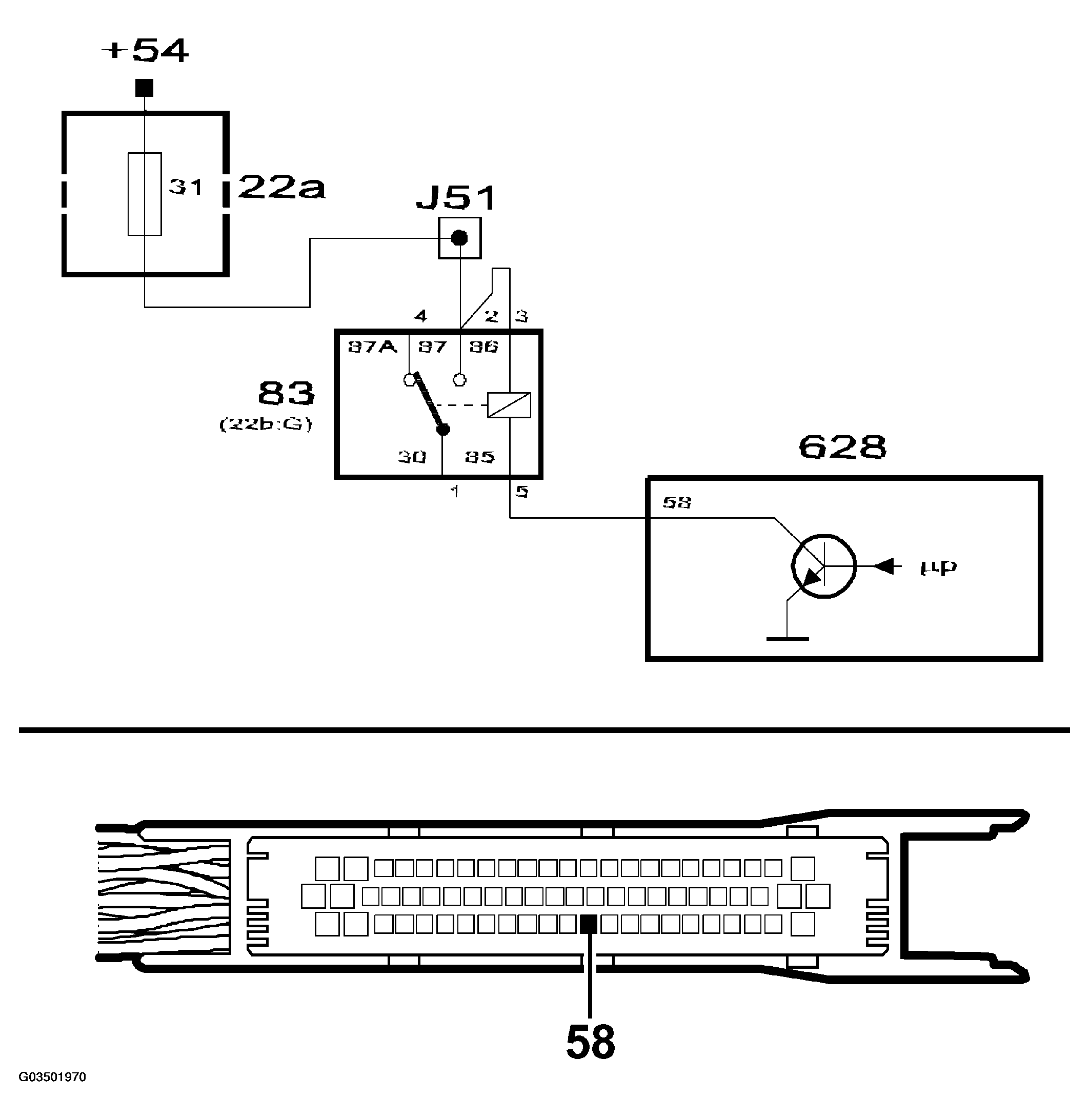

Fig 1: Circuit Diagram - Windscreen Wipers Relay (Break/Short Circuit To Ground)
G03501970

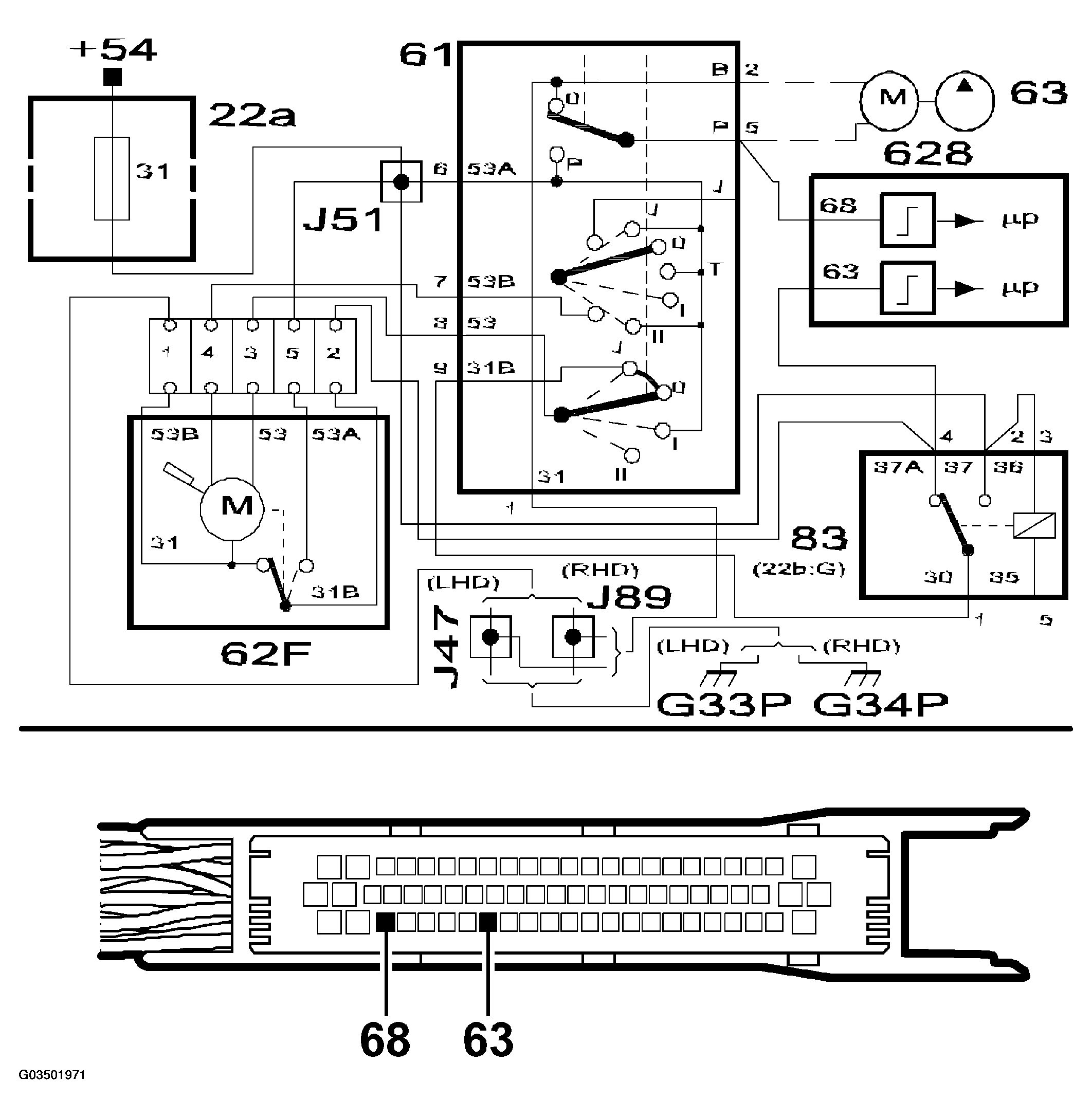

Fig 2: Circuit Diagram - Windscreen Wipers Relay (Short Circuit To B+)
G03501971
