Motor, windscreen wipers (62F)

WARNING: This page is about a different car, the 2001 Saab 9-3. However, it is still accessible from the selected car via links, so may be relevant.

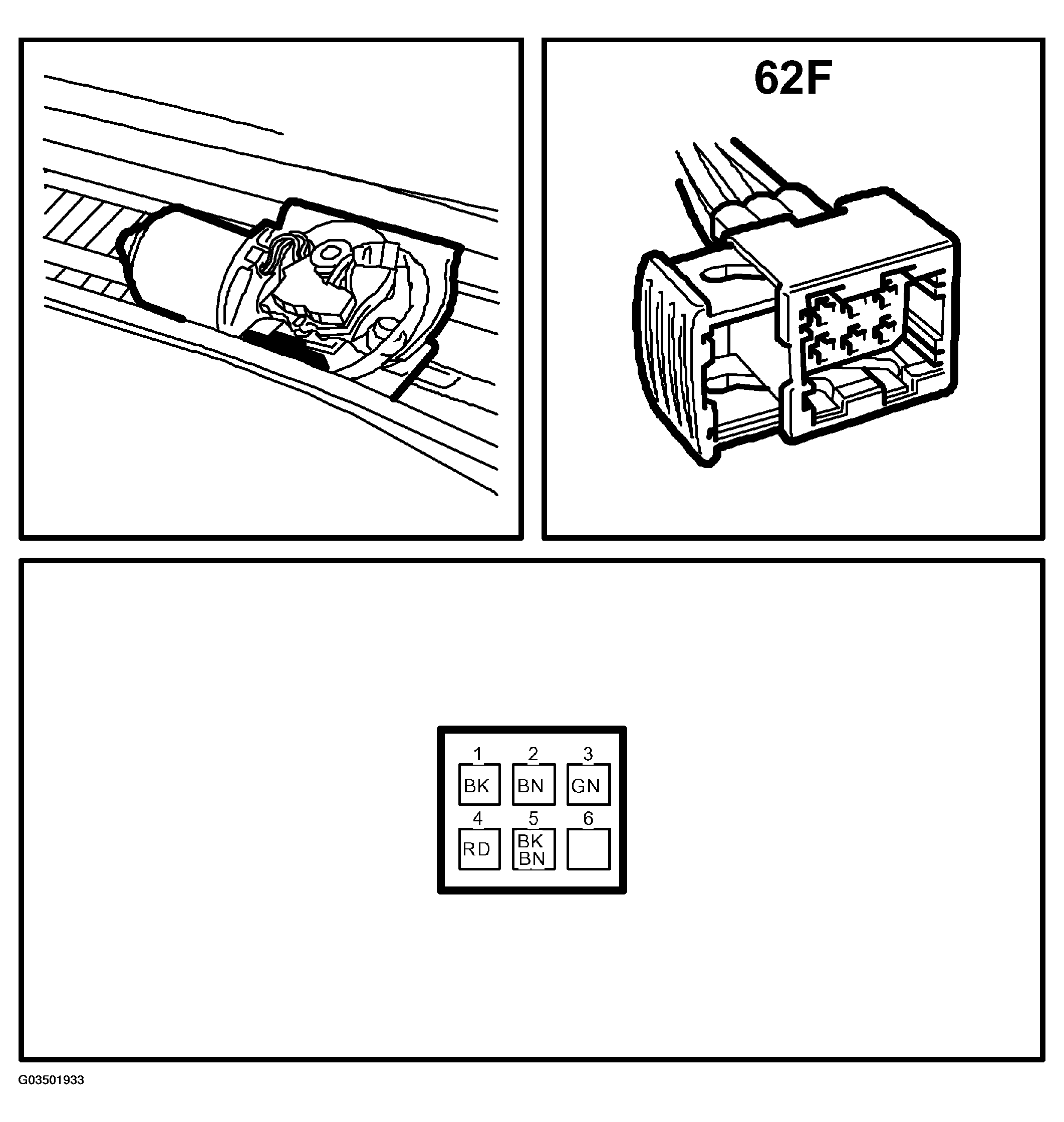

Fig 1: Identifying Motor Connector Pinouts (Windscreen Wipers (62F))
G03501933
