Windscreen wiper switch: Removal

WARNING: This page is about a different car, the 2001 Saab 9-3. However, it is still accessible from the selected car via links, so may be relevant.
  1. Move the steering wheel into its outermost position.
  2. Remove the steering column cowling sections (3 screws).
    NOTE: Be careful when removing the bracket cowls. The 4 snap connections can break.
  3. Pull out the switch, 2 clips (it is fitted into a groove).

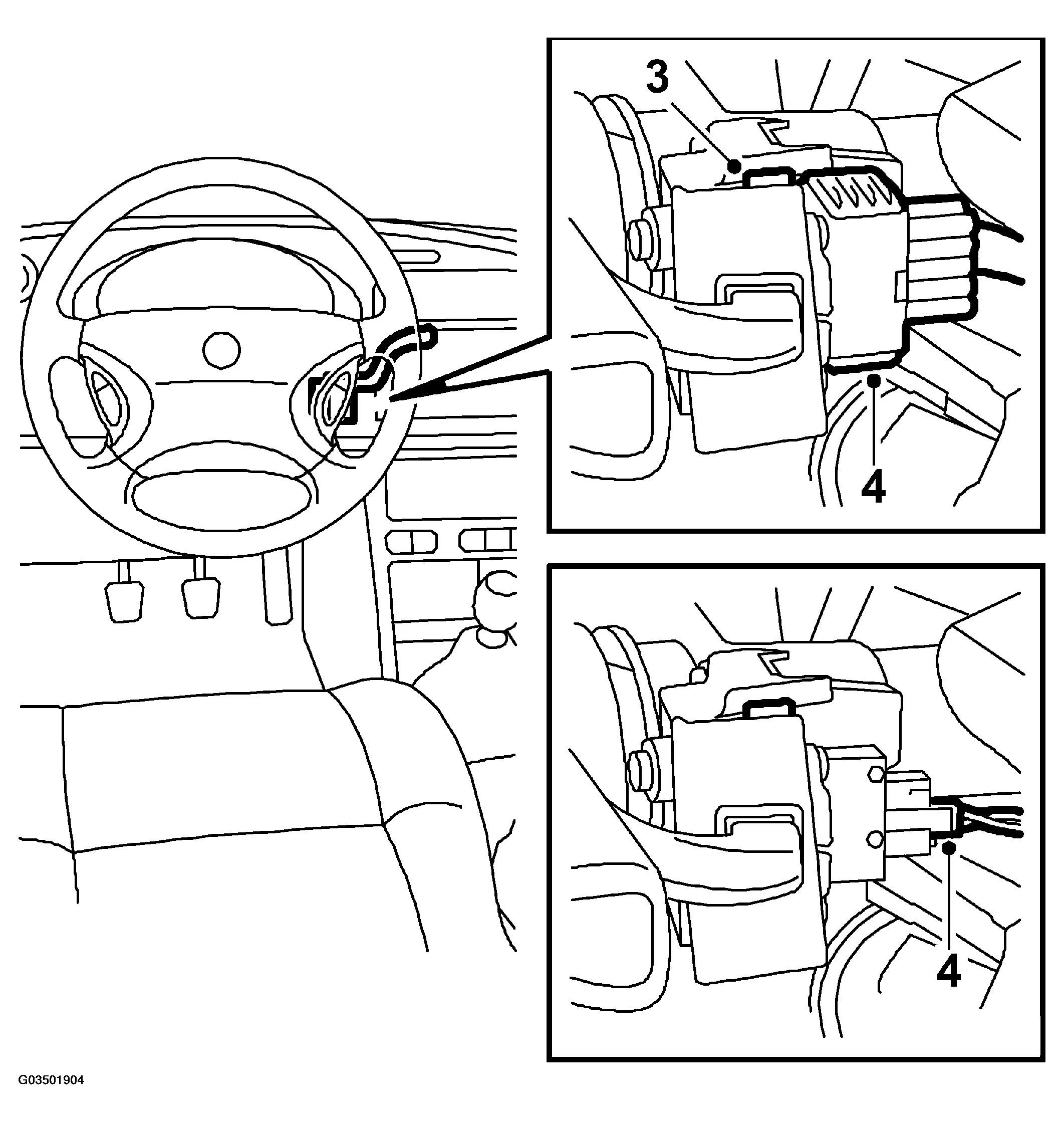

    Fig 1: Illustration For Steps 3-4
    G03501904
  4. Unplug the switch's electrical connection.
