Windscreen wiper switch: Refitting

WARNING: This page is about a different car, the 2001 Saab 9-3. However, it is still accessible from the selected car via links, so may be relevant.

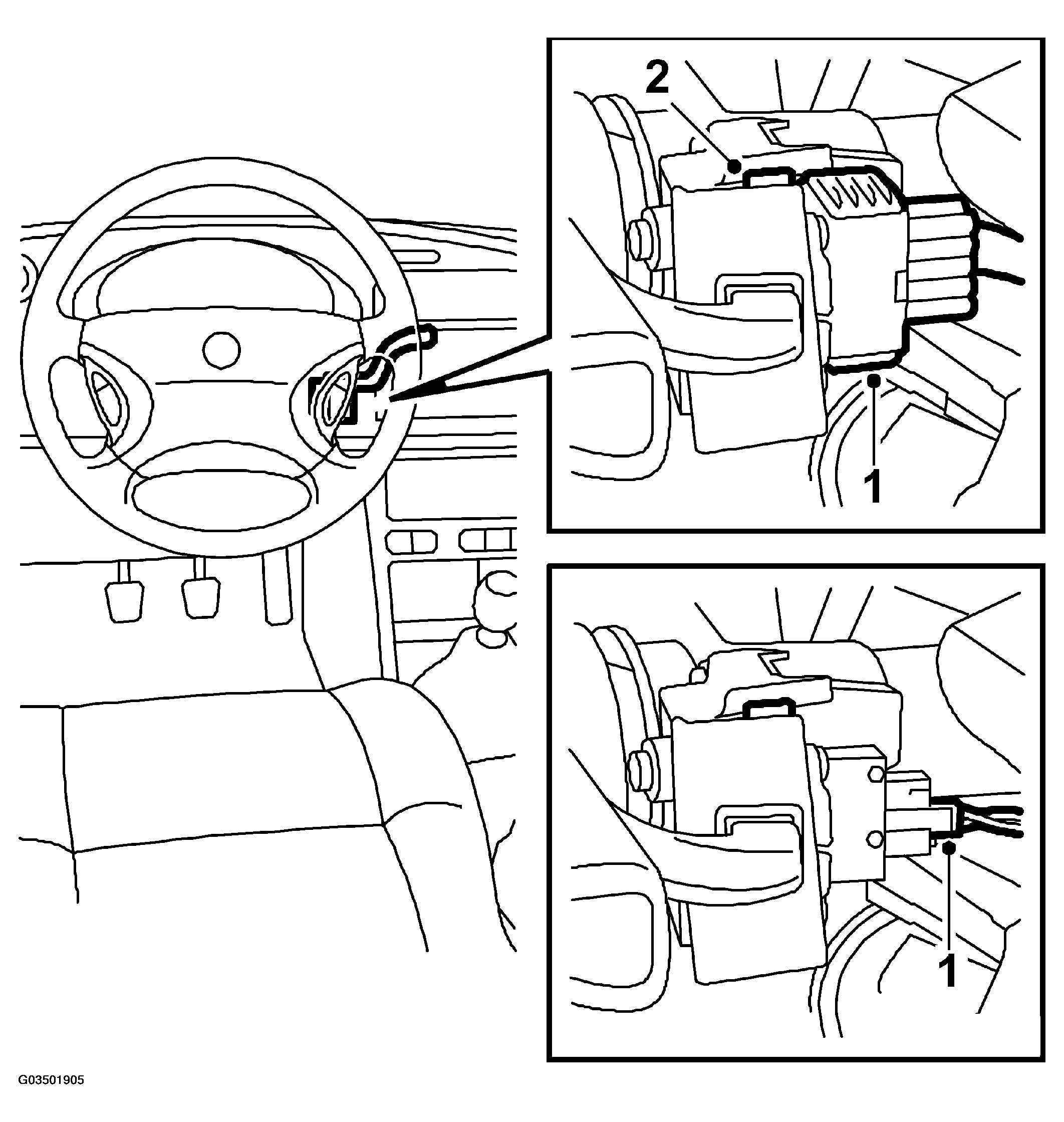

Fig 1: Illustration For Steps 1-2
G03501905
  1. Plug in the switch's electrical connection.
  2. Refit the switch.
  3. Refit the steering column cowling sections.

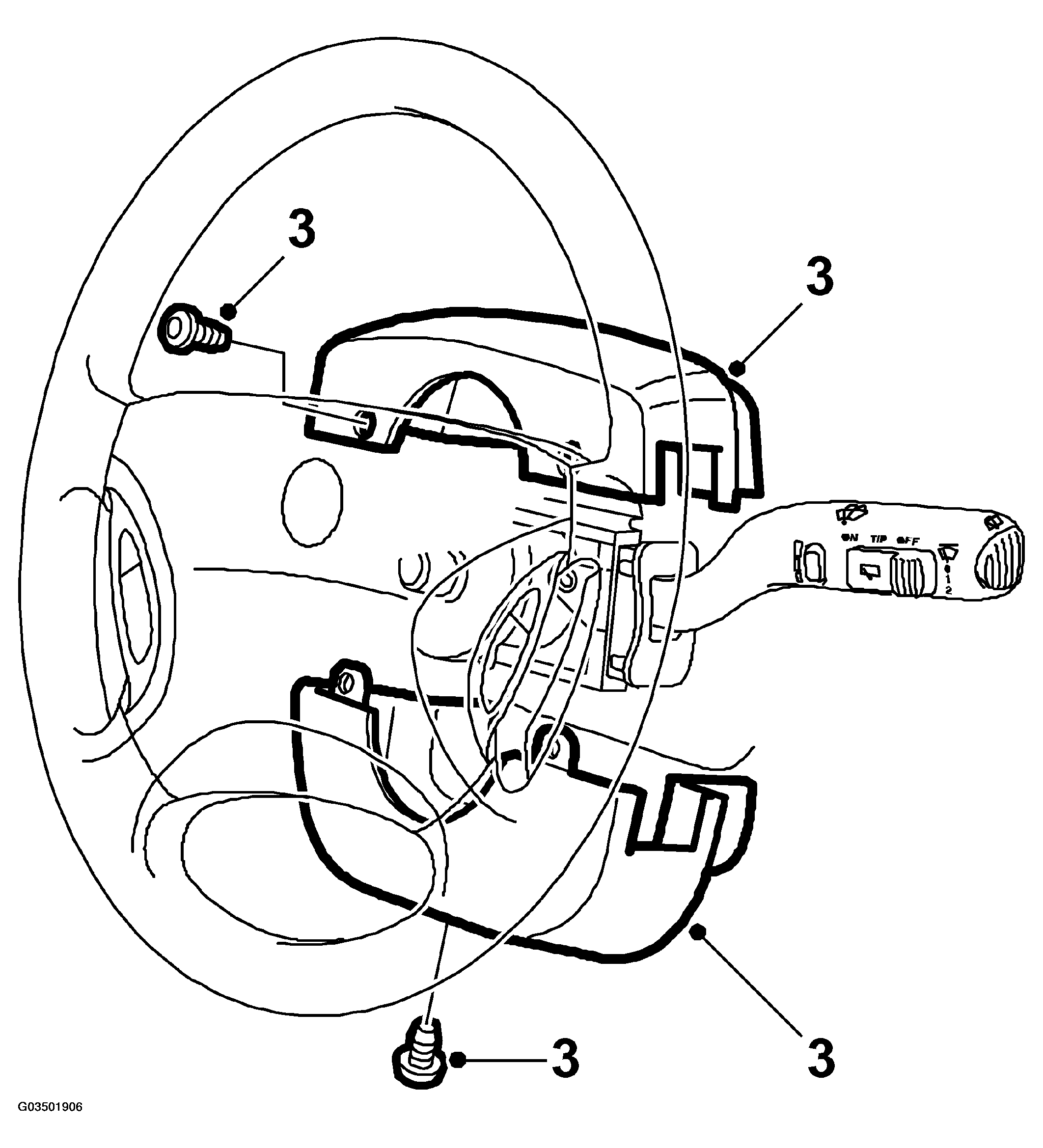

    Fig 2: Illustration For Steps 3
    G03501906
  4. Adjust the steering wheel to its original position.
