Windscreen wiper assembly: Removal

WARNING: This page is about a different car, the 2001 Saab 9-3. However, it is still accessible from the selected car via links, so may be relevant.

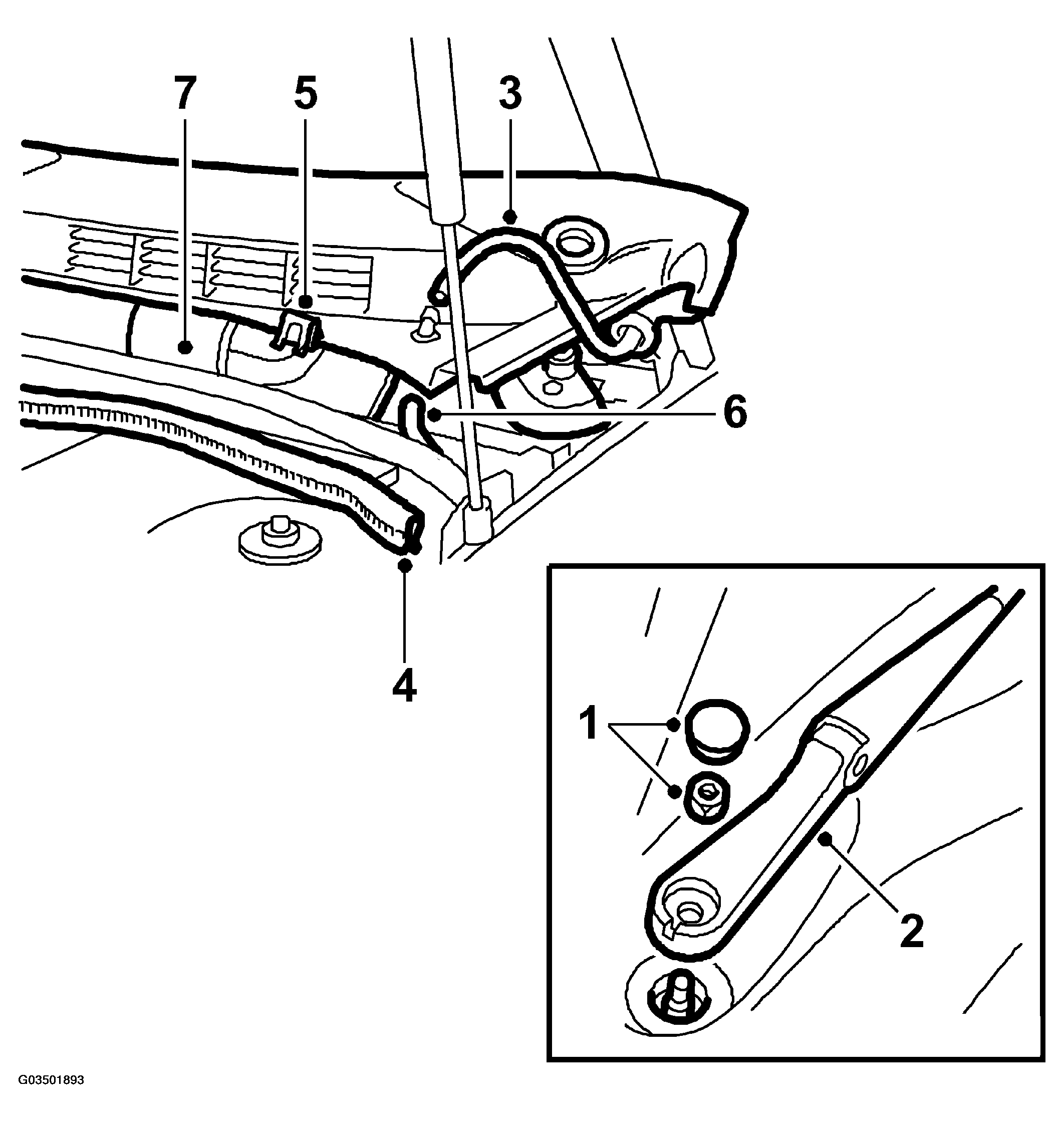

Fig 1: Illustration For Steps 1-7
G03501893
  1. Detach the protective cover with a screwdriver and remove the retaining nuts from the wiper arms.
  2. Remove the wiper arms.
  3. Disconnect the washer hose leading to the bonnet from the cover on top of the false bulkhead panel.
  4. Remove the rubber seal from the partition.
  5. Remove the clips that hold the cover on top of the false bulkhead panel.
  6. Detach the washer hose from the underside of the cover and remove the cover.
  7. Remove the cover from the center spindle and the heating and ventilation unit.
  8. Detach and disconnect the connector from the bracket.

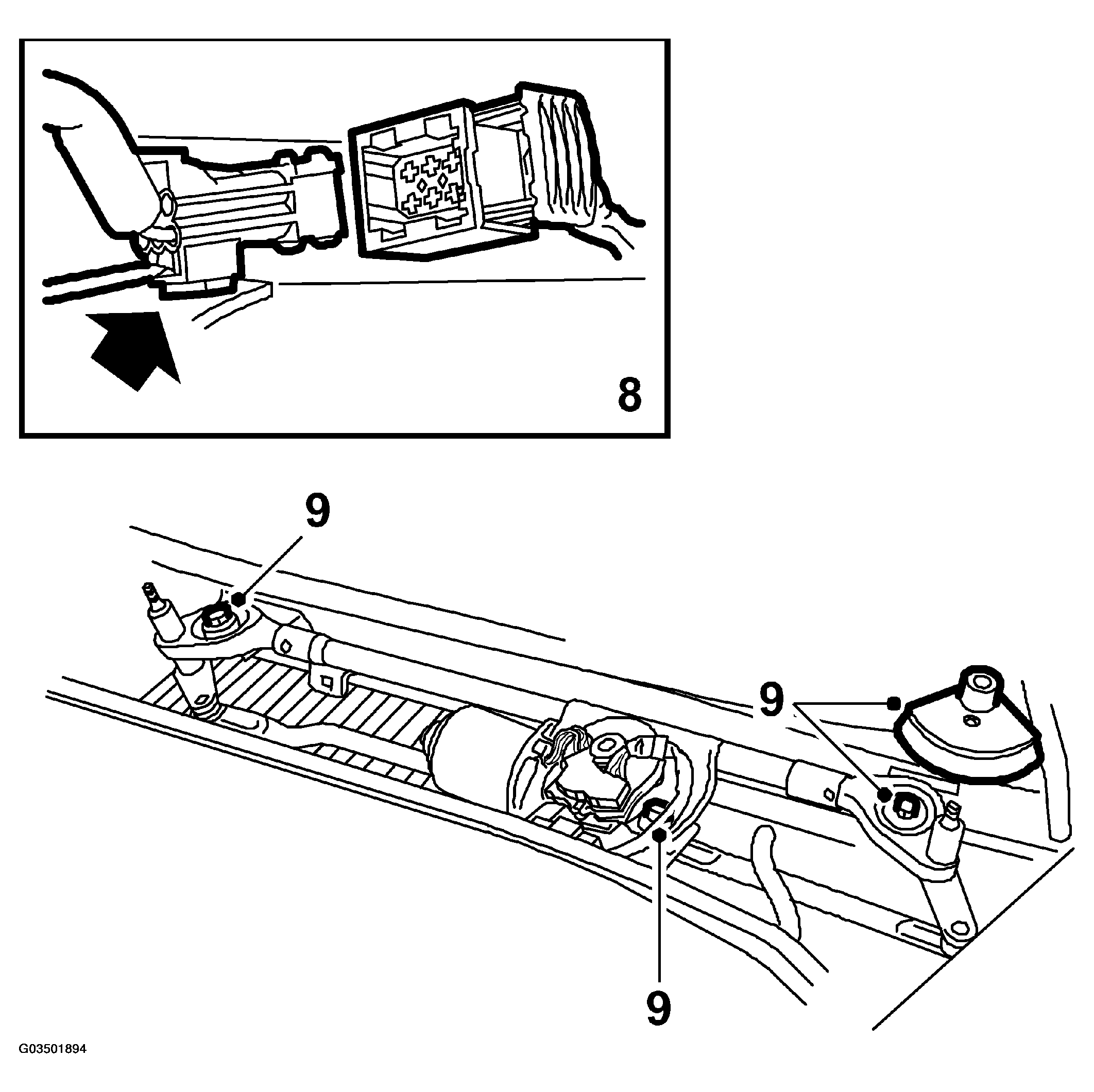

    Fig 2: Illustration For Steps 8-9
    G03501894
  9. Remove the wiper unit (4 screws).
  10. Lift out the whole windscreen wiper assembly.

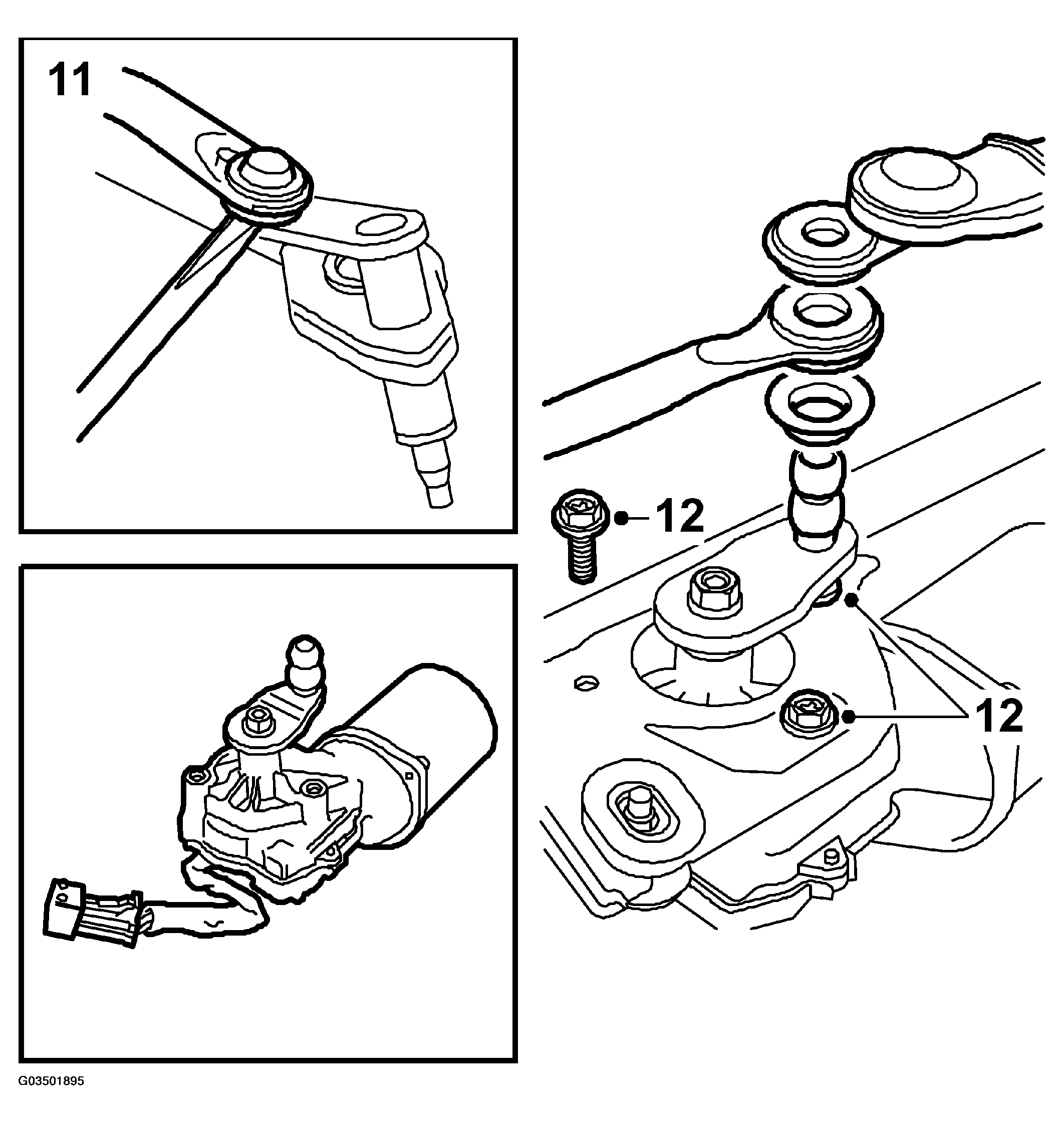

    Fig 3: Illustration For Steps 11-12
    G03501895
  11. Remove the link arms from the bracket and motor.
  12. Remove the motor (3 screws).
