Windscreen wiper assembly: Refitting

WARNING: This page is about a different car, the 2001 Saab 9-3. However, it is still accessible from the selected car via links, so may be relevant.

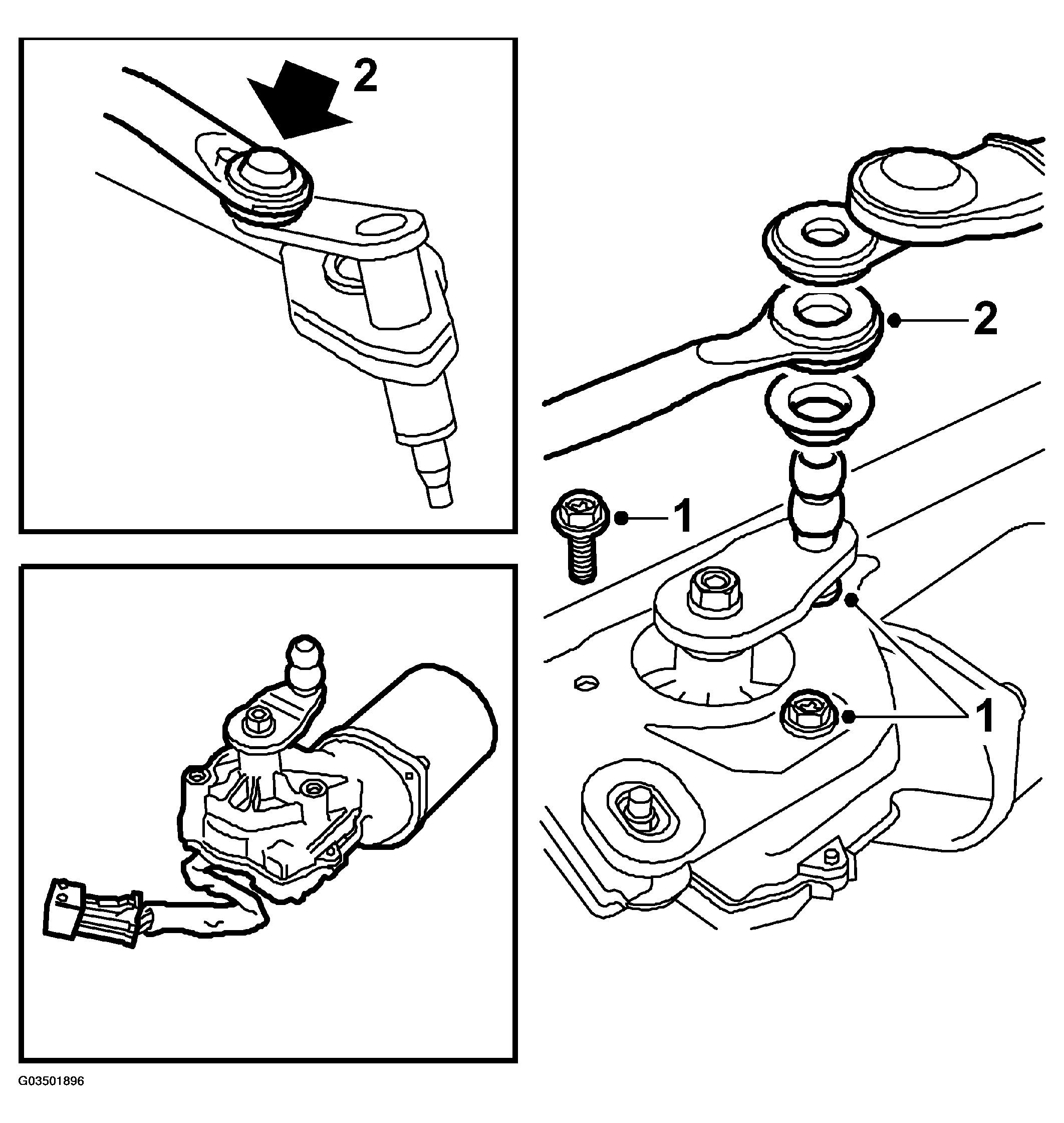

Fig 1: Illustration For Steps 1-2
G03501896
  1. Refit the motor (3 screws).
  2. Refit the link arms on to the bracket and motor.
  3. Refit the windscreen wiper assembly.

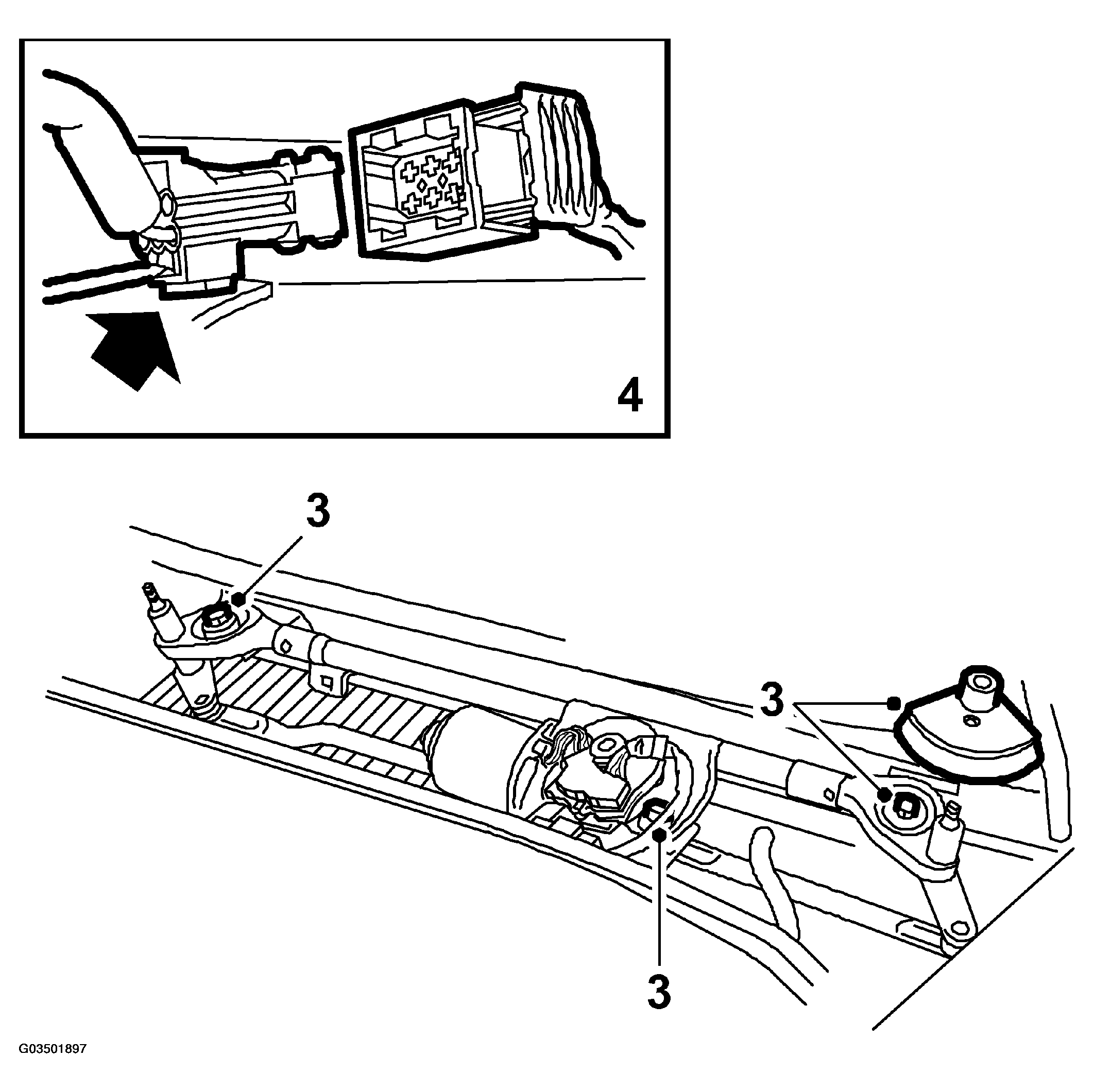

    Fig 2: Illustration For Steps 3-4
    G03501897

    Tightening torque: 8 N.m (6 lbf ft).

  4. Plug in the connectors.
  5. Refit the cover on to the center spindle and the heating and ventilation unit.
  6. Refit the washer hose and the cover on top of the false bulkhead panel.
  7. Refit the clips that hold the protective cover in place.

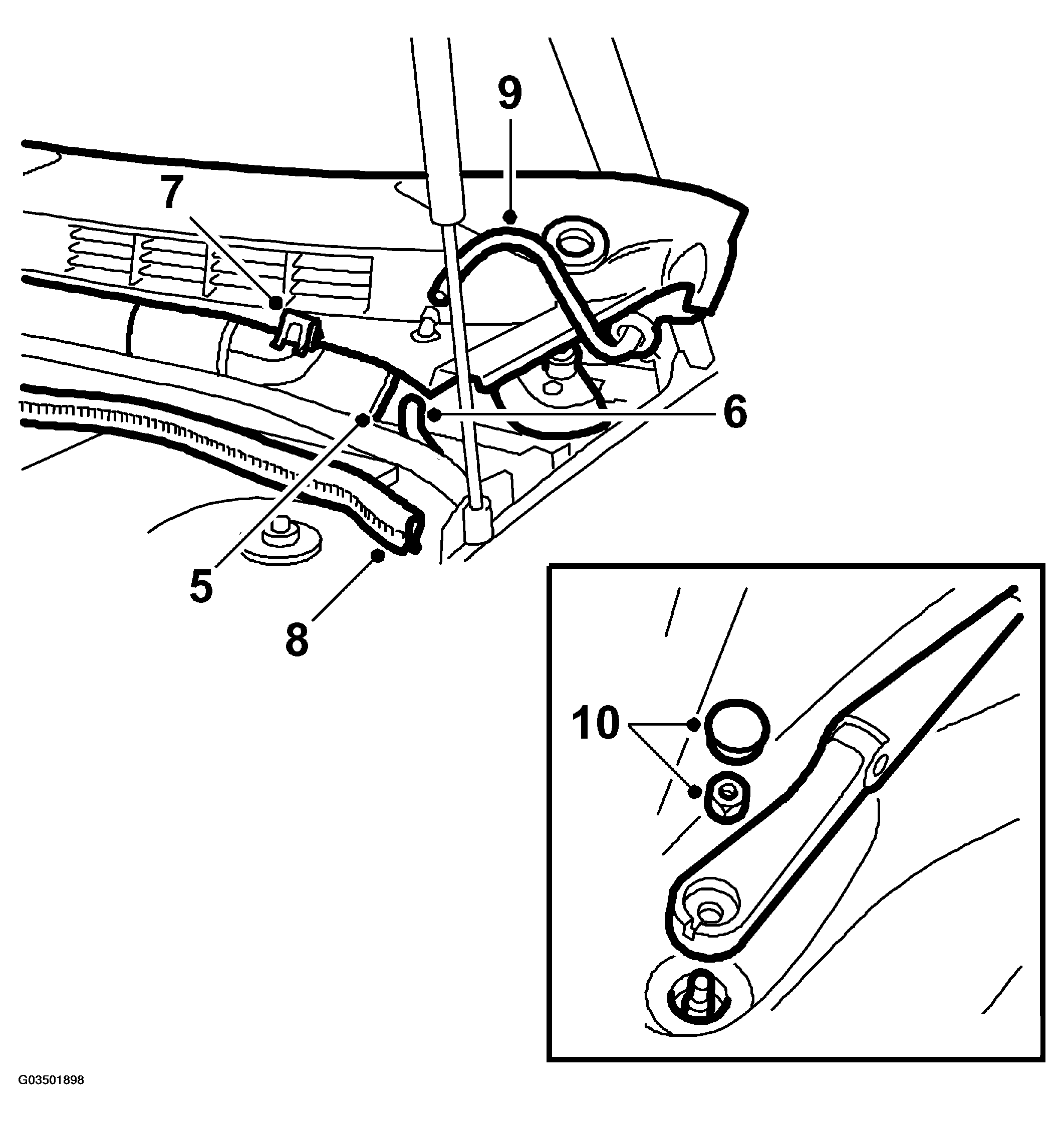

    Fig 3: Illustration For Steps 5,6,8-10
    G03501898
  8. Refit the rubber seal on to the partition.
  9. Connect the washer hose from the bonnet to the protective cover on top of the false bulkhead panel.
  10. Refit the wiper arms and protective covers.
