Windscreen washer nozzles: Refitting

WARNING: This page is about a different car, the 2001 Saab 9-3. However, it is still accessible from the selected car via links, so may be relevant.

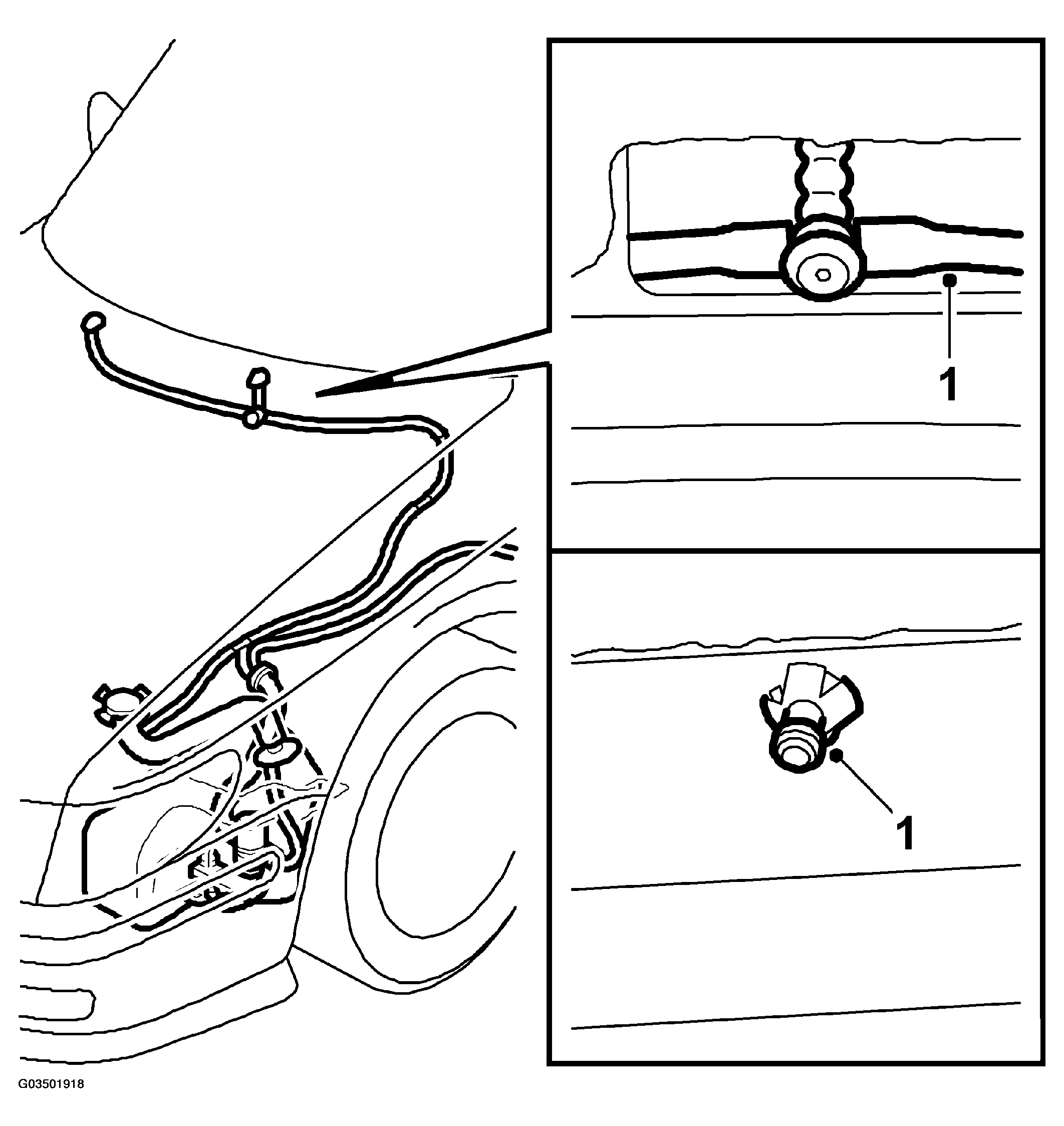

Fig 1: Illustration For Steps 1
G03501918
  1. Press the new nozzle into place and connect the hose.
  2. Close the bonnet. Adjust the nozzle jets.
